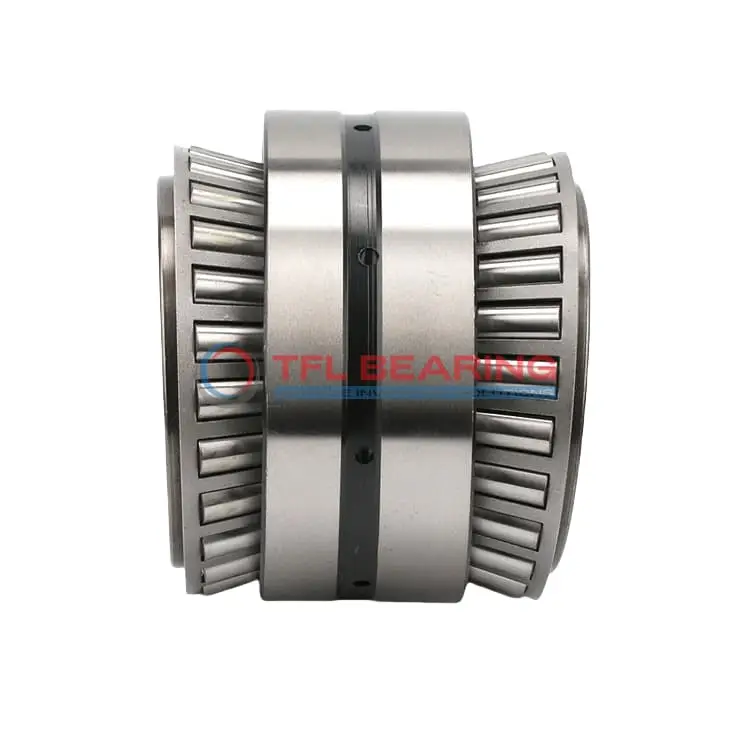

14116W-14276D TDO (Two-Row Double-Outer Race) (Imperial)

14116W-14276D TDO (Two-Row Double-Outer Race) (Imperial)

The 14116W-14276D is a two-row tapered roller bearing with a 1.19″ bore and 2.717″ outer diameter, built from sturdy chrome steel for durability. It handles combined loads up to 21400 lbf and fits applications needing reliable performance in tight spaces.

Its double-row design distributes loads evenly, while the open construction allows for easy lubrication. The steel cage keeps rollers aligned, ensuring smooth rotation even under stress.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for industrial machinery or heavy equipment. Its standard radial clearance offers flexibility for various setups.

Weighing 1.66 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a practical choice for replacements or upgrades in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14116W-14276D
  • Brand TFL
  • Size 1.19" x 2.717" x 0.771"
  • Bore Dia 1.19"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.771"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 1.8126"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 1.46"
  • Cup Frontface Backing Diameter 2.52"
  • Cage Cone Backface Clearance 0.02"
  • Dynamic Radial Load 21400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14116W
  • Cup Part Number 14276D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 2080 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 5540 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.66 lb

Features

How Does 14116W-14276D Bearing Handle Combined Loads?

14116W-14276D Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 21400 lbf, ensuring reliable performance in demanding conditions.
The double-row tapered roller design distributes loads evenly, reducing wear and extending service life.
With a standard radial clearance, it provides smooth operation across various applications.

Engineered for Reliability: 14116W-14276D Bearing

14116W-14276D Bearing features a steel cage that maintains roller alignment, enhancing durability under heavy loads.
The chrome steel construction resists wear, making it suitable for high-stress environments.
Its temperature range of -30° to 110°C ensures consistent performance in varying conditions.
This bearing is designed for long-term use with minimal maintenance required.

Structural Advantages of 14116W-14276D Bearing

14116W-14276D Bearing’s double-row design provides stability, handling combined loads efficiently.
The tapered rollers reduce friction, ensuring smooth operation even under heavy radial and thrust forces.
Its precise tolerances and chrome steel materials contribute to extended fatigue life.
With ABEC-1 rating, it balances performance and affordability for industrial applications.

Application

Industrial Uses of 14116W-14276D Bearing
14116W-14276D Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its double-row design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

What Makes 14116W-14276D Bearing a Preferred Choice?
In automotive applications, 14116W-14276D Bearing is ideal for wheel hubs and differential systems, thanks to its tapered roller design. The inch sizing makes it a reliable option for American and British vehicle models.

Built for Heavy-Duty Use: 14116W-14276D Bearing
For industrial conveyor systems, 14116W-14276D Bearing provides smooth operation under high radial and thrust loads. Its open seal type allows for easy lubrication, extending service life in continuous-use scenarios.

Automotive vs Aerospace: Applications of 14116W-14276D Bearing
While 14116W-14276D Bearing excels in automotive wheel assemblies, it’s also suitable for aerospace landing gear components. The standard radial clearance ensures consistent performance across different temperature ranges.

Where Is 14116W-14276D Bearing Used?
In robotics and automation, 14116W-14276D Bearing supports precise movements in robotic arms and assembly lines. The steel cage enhances stability, making it a practical choice for high-precision tasks.
