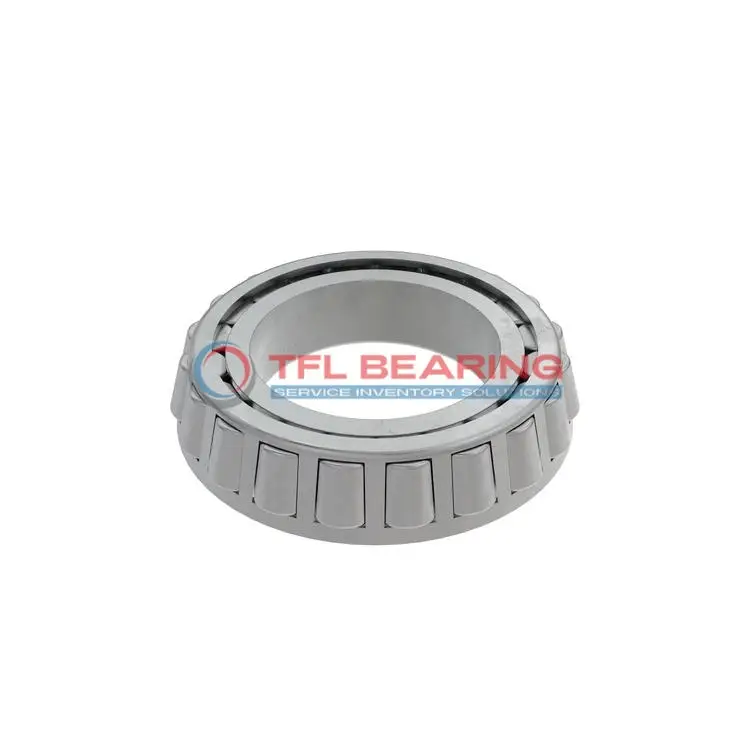

13686 Single Cones (Imperial)

The 13686 single cone is a tapered roller bearing with a 1.5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 15100 lbf and operates in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 rating, it suits various industrial applications. Ideal for machinery requiring robust performance under combined loads, such as gearboxes or heavy equipment.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for your needs.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 13686
Brand TFL
Interchangeable Brand Timken
System of Measurement Inch
Type Cones
Bearing Part Number 13686-13620 , 13686-13621 , 13686-13621A , 13686-13623X
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Series 13600
Bore Dia 1.5"
Bore Dia Tolerance +0.005" to 0
Cone Width 1.0313"
Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.06"
Cone Frontface Backing Diameter 1.69"
Cone Backface Backing Diameter 1.79"
Cage Cone Frontface Clearance 0.05"
Cage Cone Backface Clearance 0.3"
Effective Center Location -0.4"
Ring Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 15100 lbf
Static Radial Load 15300 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 26300 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 6820 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant

Features

How Does 13686 Bearing Handle Combined Loads?

13686 Bearing is designed with chrome steel rings, providing strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 15,100 lbf, ensuring reliable performance in demanding applications.
The steel cage keeps the tapered rollers aligned, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

Why Choose 13686 Bearing for Precision Tasks?

13686 Bearing features a single-row tapered roller design, ideal for combined load applications.
The chrome steel construction enhances durability, while the steel cage ensures smooth operation.
Its ABEC-1 rating guarantees consistent precision, suitable for industrial machinery.
Standard radial clearance options (C3/C4/C5) allow for flexibility in different setups.

Engineered for Reliability: 13686 Bearing

13686 Bearing’s tapered roller design efficiently handles combined loads with minimal friction.
The chrome steel rings and steel cage provide long-lasting performance in harsh environments.
With a static radial load capacity of 15,300 lbf, it ensures stability under heavy loads.
Its wide temperature range makes it versatile for various industrial applications.

Structural Advantages of 13686 Bearing

13686 Bearing’s single-row construction simplifies installation and maintenance.
The precise cone width tolerance (+0.003″ to -0.01″) ensures a perfect fit every time.
Its effective center location of -0.4″ optimises load distribution for better performance.
Compliant with RoHS and REACH standards, it meets global environmental regulations.

Application

Industrial Uses of 13686 Single Cones
13686 Single Cones are commonly used in heavy machinery, such as construction equipment and mining tools, where combined loads are frequent. Their tapered roller design ensures smooth operation even under demanding conditions.

In automotive applications, 13686 Single Cones provide reliable performance in wheel hubs and differential systems. The inch sizing makes them a convenient choice for vehicles using imperial measurements.

For industrial conveyor systems, 13686 Single Cones offer durability and ease of maintenance. The open seal type allows for straightforward lubrication, extending their service life in high-use environments.

Where Is 13686 Single Cones Used?
You’ll often find 13686 Single Cones in agricultural machinery, supporting components like gearboxes and PTO shafts. Their chrome steel construction handles both radial and thrust loads effectively.

In railway applications, 13686 Single Cones are trusted for their stability and load-bearing capacity. The steel cage adds extra strength, making them suitable for long-haul freight trains.

Built for Heavy-Duty Use: 13686 Single Cones
13686 Single Cones excel in forestry equipment, where rough terrain and heavy loads are common. Their robust design ensures minimal downtime even in harsh conditions.

For material handling systems, 13686 Single Cones provide consistent performance in pulley and idler assemblies. The standard radial clearance options allow for flexibility in various setups.

Automotive vs Aerospace: Applications of 13686 Single Cones
In automotive settings, 13686 Single Cones are ideal for drivetrain components, offering reliable performance under combined loads. Their ABEC-1 rating ensures sufficient precision for most vehicle needs.

While not typically used in aerospace, 13686 Single Cones are a go-to for ground support equipment. Their temperature range and durability make them suitable for airport machinery.

What Makes 13686 Single Cones a Preferred Choice?
13686 Single Cones are favoured in industrial fans and blowers for their ability to handle both radial and axial forces. The steel cage and chrome steel rings ensure long-lasting performance.

In power transmission systems, 13686 Single Cones provide smooth operation for gear drives and couplings. Their compatibility with Timken equivalents makes sourcing replacements straightforward.
