Electrically Insulated Tapered Roller Bearings

Electrically Insulated Tapered Roller Bearings are engineered to offer superior protection against electrical erosion. This erosion occurs when stray currents pass through conventional bearings.

Home / Product / Electrically Insulated Bearings / Electrically Insulated Tapered Roller Bearings

Why Choose TFL?

Our electrically insulated bearings feature a specialized coating. This coating effectively blocks the flow of harmful currents. They are ideal for applications in electric motors, generators, and other equipment where electrical discharge is a risk.

Top

Product list

Application

FAQ

Our Process

Hot Products

Support

Product list

/ 01

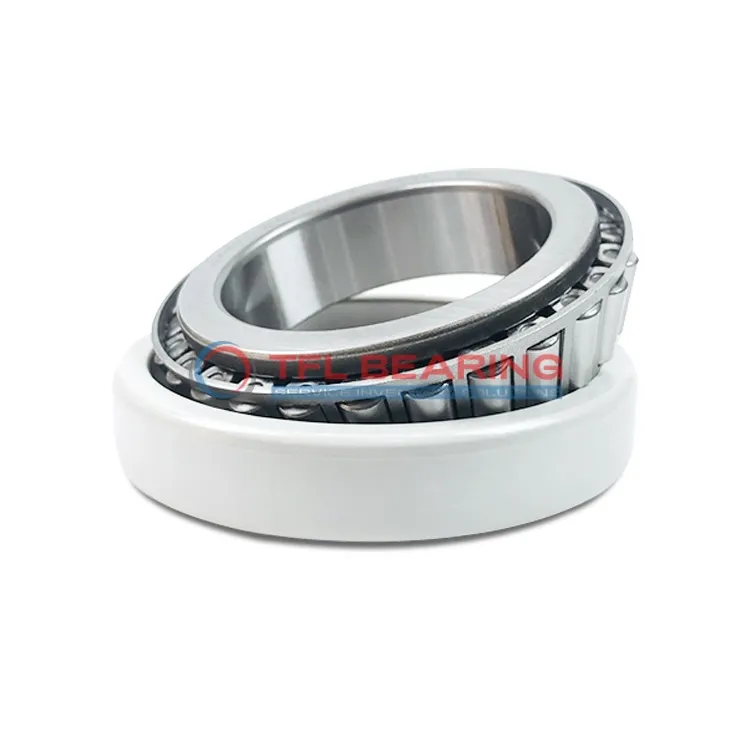

Close-up of an electrically insulated tapered roller bearing with a protective coating, preventing current damage in industrial machinery.

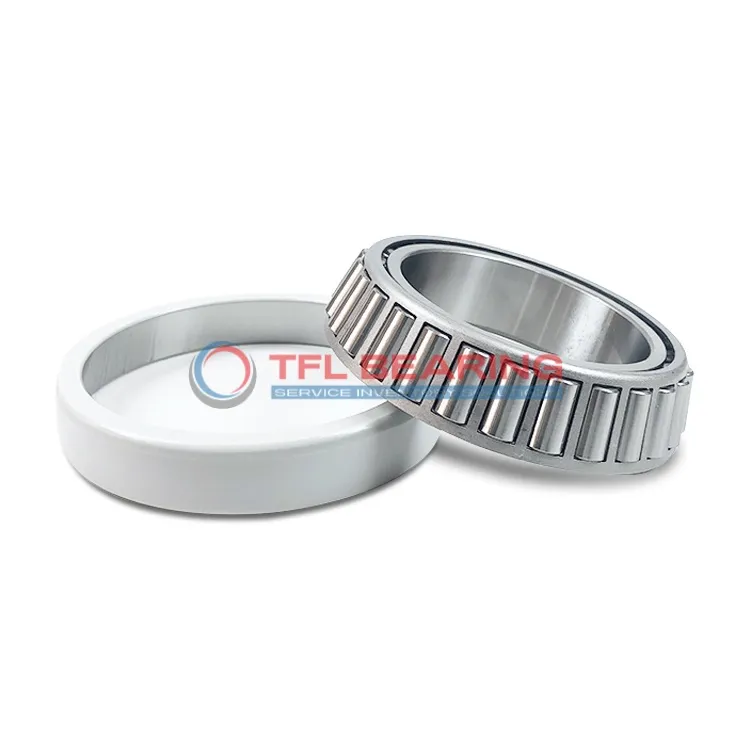

Electrically Insulated Tapered Roller Bearings

Superior Electrical Insulation for Tapered Roller Bearings

Electrically Insulated Tapered Roller Bearings are designed to combat the challenges posed by electrical currents in industrial machinery. Their ceramic insulating layer, typically made from aluminum oxide, is applied using a high-energy plasma spraying process. This creates a dense, uniform coating that tightly bonds with the bearing surface. The result is a layer that provides high dielectric strength—up to 1000 VDC in some models—protecting the bearing from harmful current leakage that often occurs in motors and frequency drive systems.

This type of insulation is especially critical in environments where electrical discharges are common. Without insulation, stray currents can pass through the rolling elements and raceways, causing pitting, fluting, and premature failure. Electrically Insulated Tapered Roller Bearings solve this issue by interrupting the path of current, increasing system reliability, reducing maintenance costs, and extending bearing service life.

Enhanced Performance Under AC and DC Currents

Electrically Insulated Tapered Roller Bearings are engineered to provide superior protection against both alternating current (AC) and direct current (DC) effects. At room temperature, their DC resistance ranges between 1–10 GΩ, depending on size and coating thickness. Even when the temperature rises to 60°C or 80°C, these bearings still maintain insulation levels in the MΩ range, which greatly reduces harmful current passage through the bearing.

With AC currents, the insulating layer acts like a capacitor. It stores and releases energy without allowing actual current flow through the bearing elements. This is essential in inverter-driven motors or systems with harmonics. While the capacitive reactance decreases with frequency, it remains significantly higher than in non-insulated bearings, making Electrically Insulated Tapered Roller Bearings a much safer choice in high-frequency environments.

Applications and Benefits

The flexibility of Electrically Insulated Tapered Roller Bearings allows them to be used in numerous industries and applications. From high-speed trains to industrial pumps, and from wind turbines to electric vehicles, these bearings protect mechanical systems from the damaging effects of stray electrical currents. Their tapered design ensures high load capacity in both radial and axial directions, making them especially suitable for heavy-duty and high-precision tasks.

The key benefit is enhanced reliability. These bearings ensure that machinery operates smoothly without interruption. This is vital in sectors where continuous operation is critical.

Choosing TFL for your electrically insulated tapered roller bearings means choosing durability and efficiency. We are committed to providing solutions that meet rigorous industrial demands.

APPLICATION AREA

Railway Bearings

Durable railway bearings for axle boxes and traction motors guarantee safety and stability in high-speed and heavy-haul train operations.

image shows slewing ring bearing in excavators

Heavy Equipment (Construction & Mining)

Rugged bearings built to withstand extreme loads, shock, and severe contamination in mining and construction heavy machinery.

Industrial Bearings

Versatile industrial bearings enhance energy efficiency and stability in electric motors, pumps, and gearboxes across manufacturing sectors.

image shows wind turbines used in the energy sector.

Energy Sector & Power Generation

Optimized bearings for wind, hydro, and thermal power systems maximize energy efficiency and minimize maintenance in power generation facilities.

Have a Question?

SPEAK WITH AN EXPERIENCED TEAM MEMBER

INTERCHANGEABLE BRANDS

TFL Bearings: High quality bearings, an ideal choice to replace SKF and FAG.

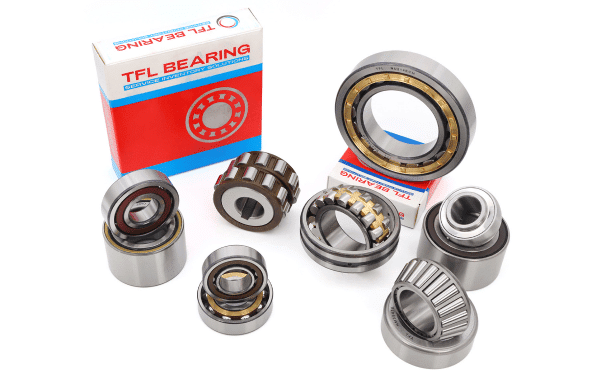

Comprehensive bearing supply chain integration products

One-Stop Supply Chain Integration

Simplify your vendor management. As an integrated supplier, we consolidate diverse bearing requirements into a single, efficient channel. We manage inventory, quality control, and global logistics to save you time.

View Cross-Reference Guide

100% Interchangeable Brand Equivalents

Why pay a premium for a brand name? We provide precision-engineered, cost-effective equivalents for major global brands. Get the exact same dimensions, load capacities, and lifespan without compromising performance.

Explore Our Catalog

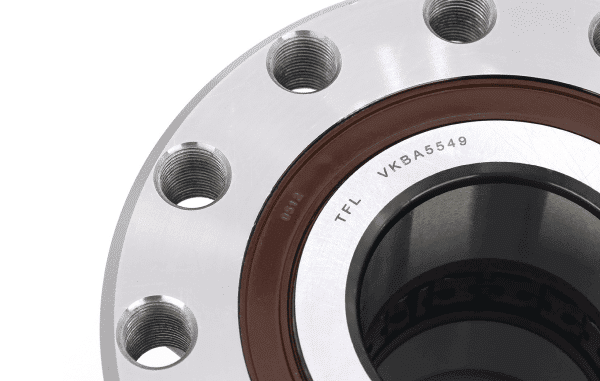

Close-up of a precision TFL bearing showing certified manufacturing standards

Certified Quality & Compliance

Trust is built on verified quality. Our manufacturing processes are strictly ISO 9001 certified, ensuring consistent, defect-free production. All our products are fully RoHS and REACH compliant.

Contact for Compliance Details

FREQUENTLY ASKED QUESTIONS

What makes Electrically Insulated Tapered Roller Bearings different from standard tapered bearings?

The key difference lies in the application of an electrically insulating ceramic coating. While standard tapered roller bearings conduct electricity, Electrically Insulated Tapered Roller Bearings prevent electrical current from passing through, thanks to the dielectric ceramic layer applied via plasma spraying. This significantly reduces the risk of electric erosion, bearing surface damage, and unplanned machine downtime. These features make them ideal for applications involving variable-frequency drives or inverter-fed motors.

What kind of coating is used for the insulation?

A common coating material is aluminum oxide. It is applied using a plasma spraying process. This method creates a highly durable and effective insulating layer. This layer has excellent dielectric properties. It ensures reliable protection against electrical current flow. This specialized coating is crucial for the performance of electrically insulated tapered roller bearings.

Can these insulated bearings operate in high-temperature environments?

Yes. The ceramic insulation used in these bearings is designed to withstand elevated temperatures. Even under continuous operation at 60°C to 80°C, the insulation retains several mega-ohms of resistance. This ensures long-term reliability even in heat-intensive environments such as steel mills, compressors, and electric locomotives.

How is the insulating layer applied to the bearing?

The insulation layer is applied using plasma spraying technology. This process involves injecting aluminum oxide powder into a high-temperature plasma jet, which melts the powder and deposits it on the bearing surface at high velocity. The resulting coating is dense, highly adhesive, and electrically non-conductive. After application, the surface is sealed and ground for precision and longevity.
