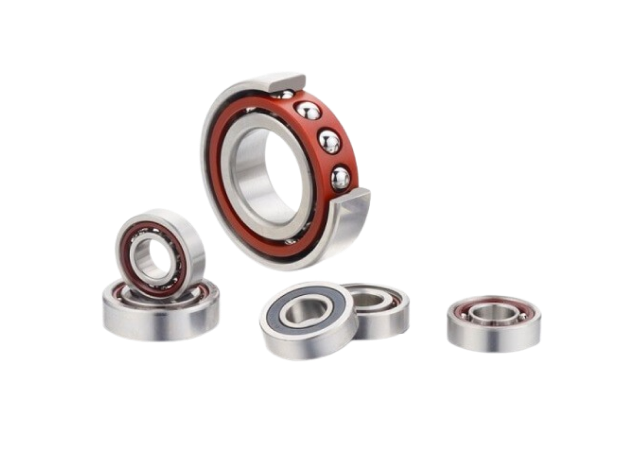

Miniature Angular Contact Ball Bearings
Miniature angular contact ball bearings are designed for compact assemblies that need both radial support and controlled axial load capacity in a very small bearing envelope. This TFL product list covers small angular contact bearings from 3 mm to 9 mm bore, including 718, 719, 70 and 72 series options with 15° or 25° contact angles. Buyers can compare open or sealed designs, steel or ceramic ball options, nylon or phenolic cages, preload availability, speed ratings and universal matching requirements. These bearings are commonly used in miniature motors, precision instruments, robotics joints, dental and medical devices, optical equipment and compact high-speed mechanisms. TFL helps customers source suitable standard or customized alternatives based on bearing number, drawings, samples or application conditions.
Combined Load Capacity in Tiny Sizes
Suitable for High-Speed Miniature Applications
Space-Saving Micro Bearing Design
Miniature Angular Contact Bearing Selection Guide
Miniature angular contact ball bearings are small-size precision bearings used when a compact shaft needs radial load support, one-direction axial load capacity, and accurate shaft positioning. For this page, the product list focuses on 3 mm to 9 mm bore models, including 718, 719, 70, and 72 series options with 15° and 25° contact angles.
How to Choose This Bearing Type
Choose a miniature angular contact bearing when a standard miniature deep groove bearing cannot provide enough axial rigidity, preload control, or positioning accuracy. Start with the shaft diameter, housing space, running speed, axial load direction, and required rigidity, then confirm whether the bearing will be used alone, in a matched pair, or in a preloaded assembly.

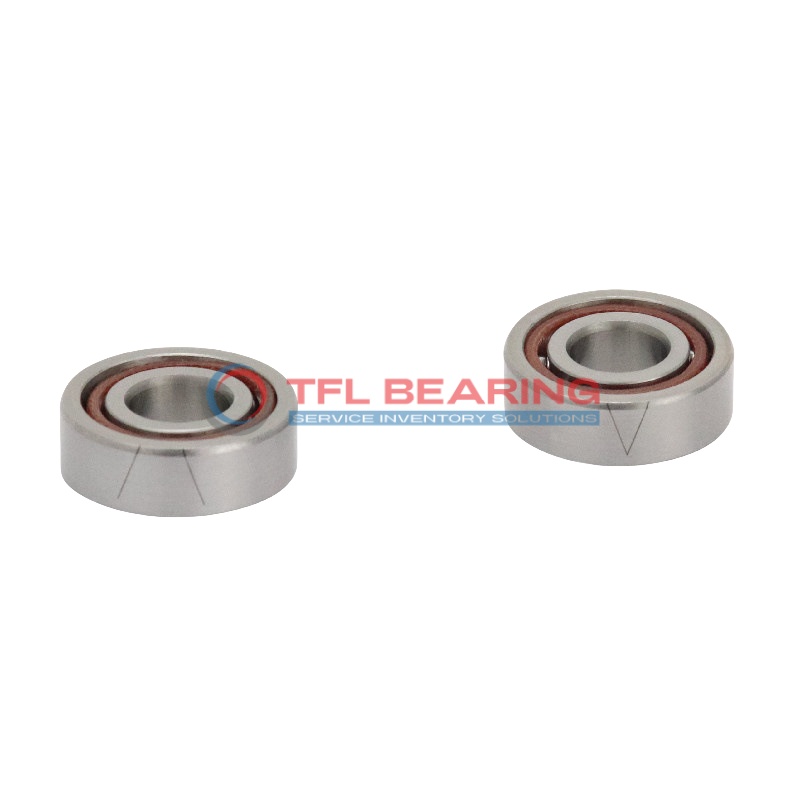

Common Series and Model Range

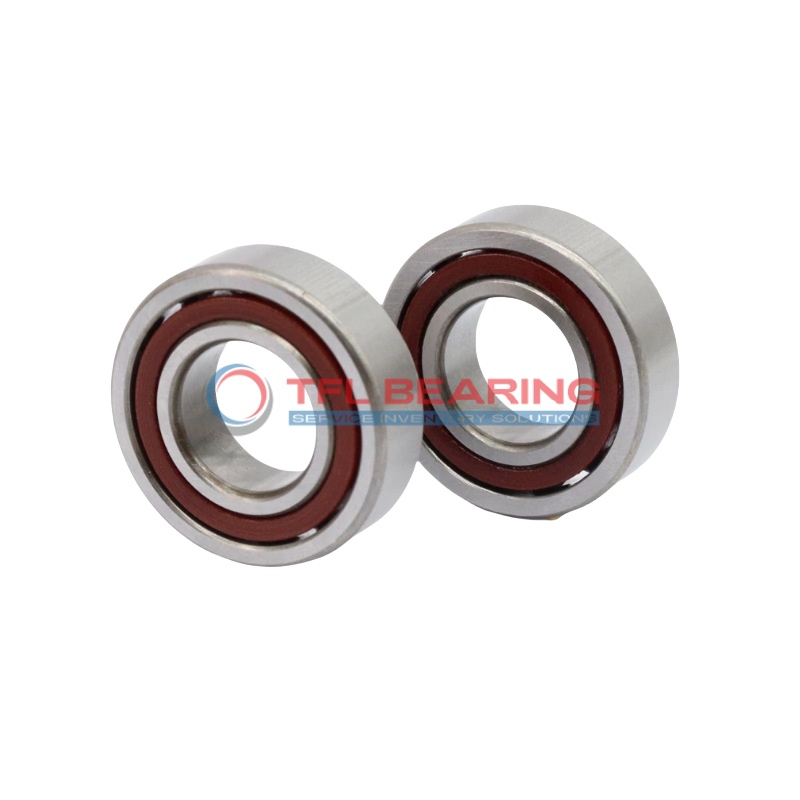

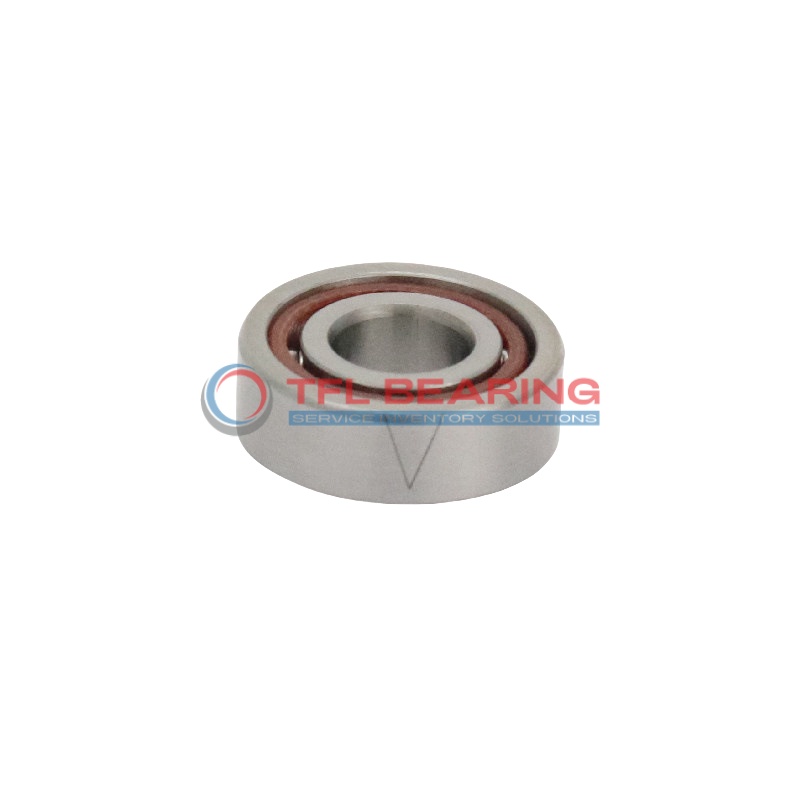

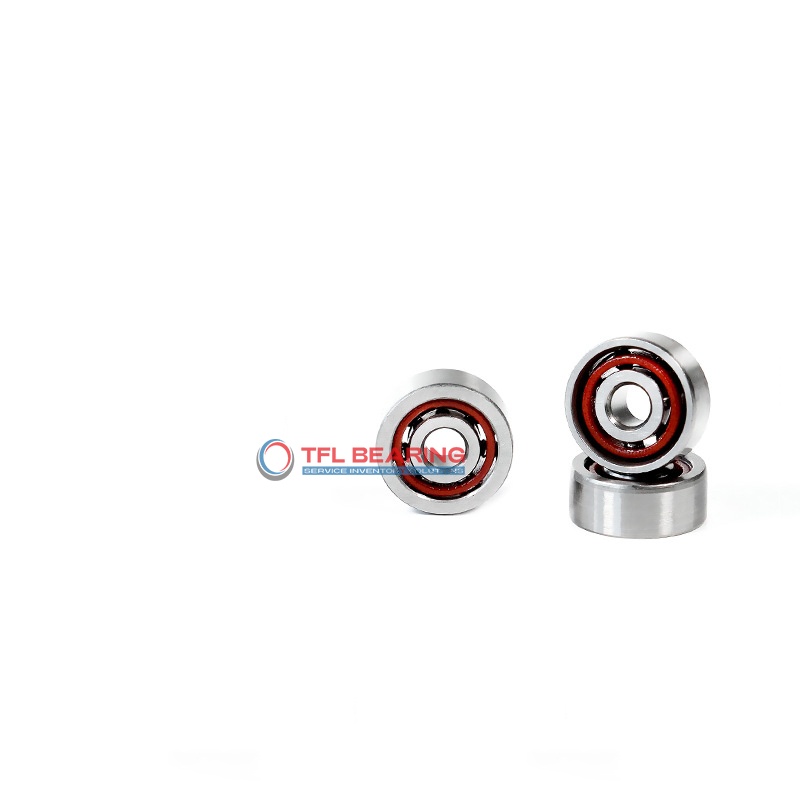

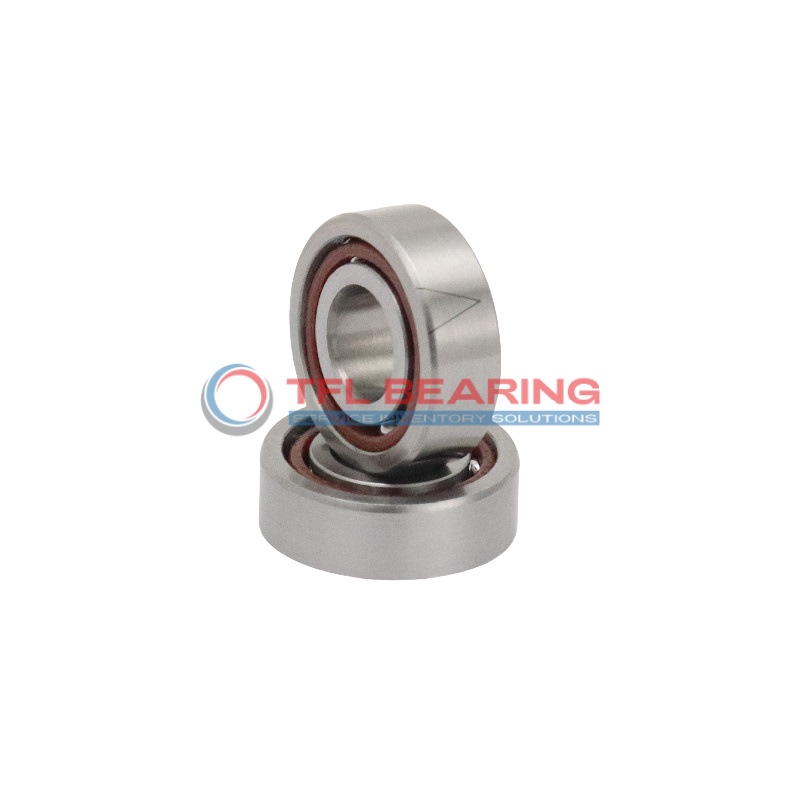

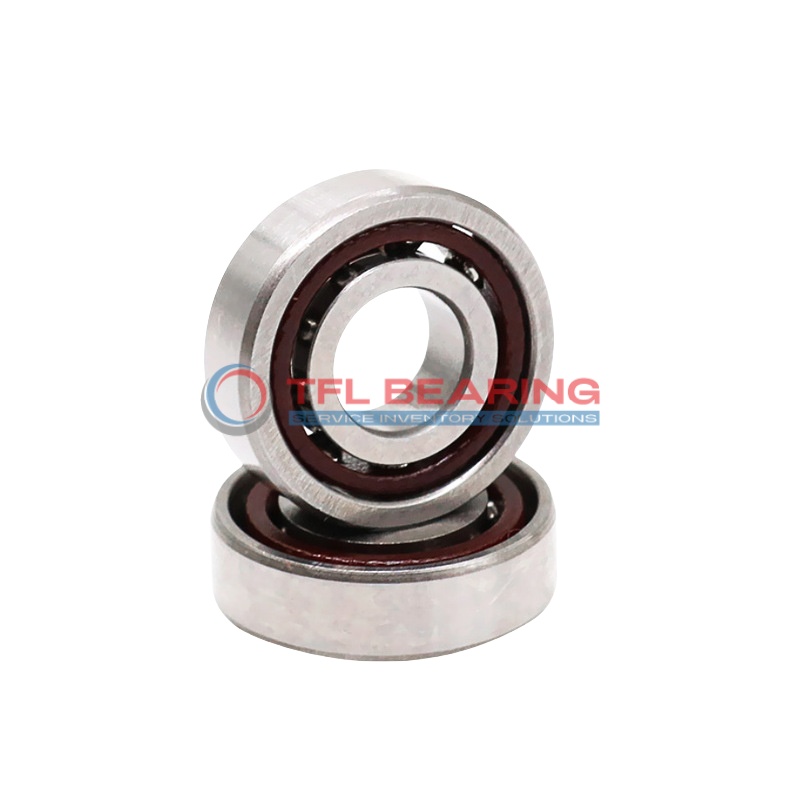

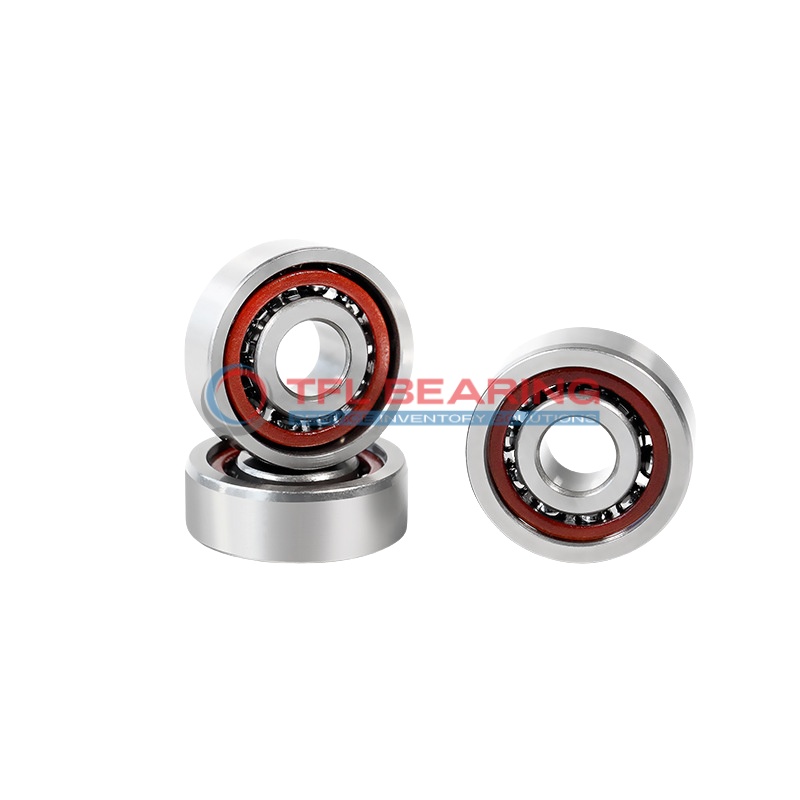

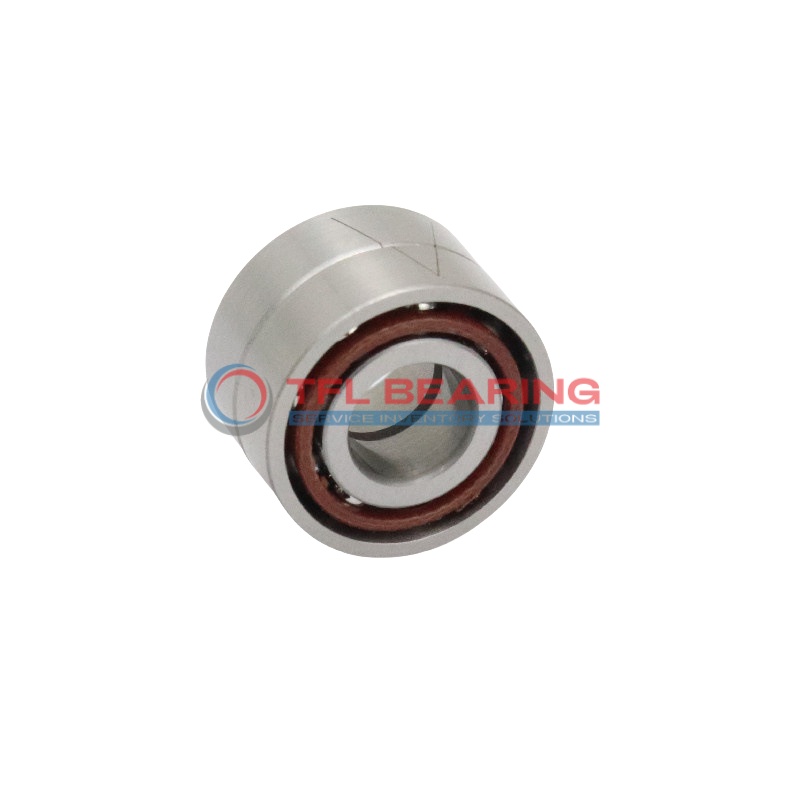

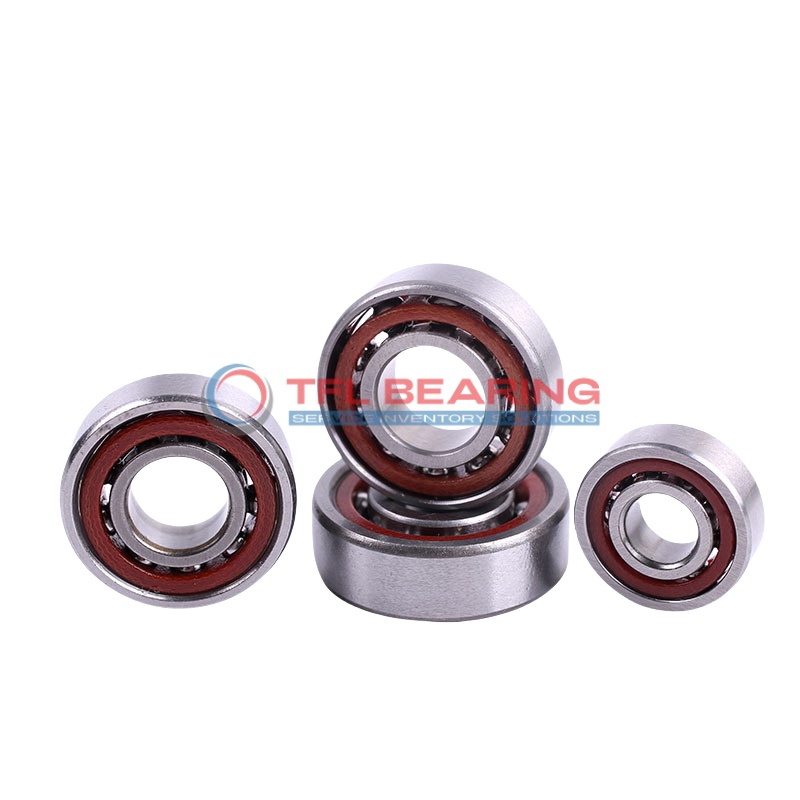

| Series / Example Models | Typical Selection Focus | Common Buyer Checkpoints |
|---|---|---|
| 718 series, such as 718/5AC, 718/8C | Thin-section, space-saving design | Bore, outside diameter, width, contact angle, and speed |
| 719 series, such as 719/4AC, 719/8C | Compact precision assemblies | Open or sealed type, preload, matching, and lubrication |
| 70 series, such as 705AC, 708C | Higher rigidity in small mechanisms | 15° or 25° contact angle, cage material, ball material, and speed |
| 72 series, such as 724AC, 728C | More radial section and higher load capacity | Available space, load rating, contact angle, and lubrication method |
15° vs 25°, Open vs Sealed, Steel vs Ceramic Selection
A 15° contact angle is often selected for higher-speed miniature assemblies with lighter axial load, while a 25° contact angle can provide stronger axial support and higher rigidity in compact mechanisms. The final choice should also consider preload, speed, lubrication, heat generation, and shaft support arrangement.
Open types are easier to lubricate and inspect, and they may be preferred where the equipment already controls lubrication and contamination. Sealed options can help retain grease and reduce contaminant ingress in small motors, instruments, or compact devices exposed to fine dust, but seal friction and speed limits should be checked.
Steel balls are suitable for many standard precision applications. Ceramic ball options may be considered for higher speed, lower rolling element inertia, reduced heat generation, or improved performance in selected high-speed miniature assemblies.
Key Specifications to Confirm Before Quotation
Before requesting a quote, please confirm the bearing number, bore diameter, outside diameter, width, contact angle, open or sealed design, ball material, cage material, preload requirement, matching arrangement, speed target, lubrication method, and application environment. If the original bearing number is unclear, you can send drawings, photos, samples, or shaft and housing dimensions for cross-reference support.
SKF / FAG / NSK Replacement Notes
For SKF-style, FAG-style, NSK-style, NTN-style, or other miniature angular contact bearing numbers, TFL can help check dimensional interchange, contact angle, preload, matching requirement, and material options before recommending a replacement. We do not imply original-brand supply or authorized distribution; the goal is to help customers source suitable alternative bearings for the same installation requirements.
Please keep suffixes in the inquiry whenever possible. Codes related to contact angle, cage material, seal type, preload, matching, tolerance class, or ball material can change the final bearing selection.
Common Applications

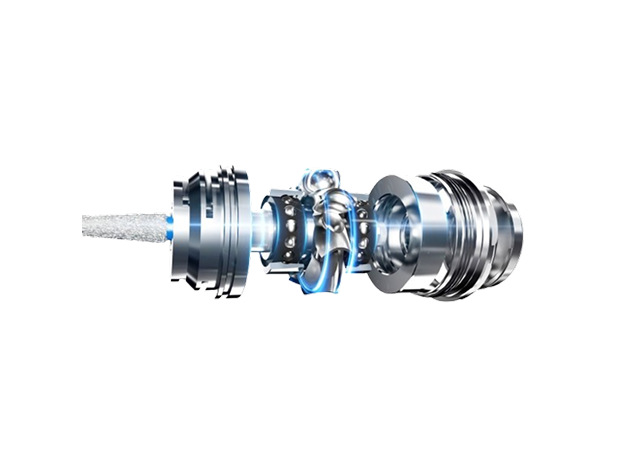

Miniature angular contact bearings are used in miniature motors, dental handpieces, medical instruments, robotics joints, optical equipment, encoders, gyroscopes, precision measuring tools, compact pumps, and small high-speed mechanical assemblies where space is limited but axial control and shaft positioning are still required.
Popular Models / High-Demand Models
Common models in this product range include 723AC, 719/4AC, 724C, 705AC, 718/8C, 708AC, 708C, 728C, and 729C. Among them, 719/4AC is a good priority model page to link because it clearly represents the small-size 719 series and 25° contact angle miniature angular contact bearing category.
Engineering Note
For miniature angular contact bearings, small changes in preload, contact angle, lubrication, or mounting accuracy can strongly affect heat, noise, running accuracy, and service life. Confirm the mounting arrangement before replacing a miniature deep groove bearing with an angular contact design.
Need Help Matching a Miniature Angular Contact Bearing?
Send us the bearing number, drawing, sample photos, or application conditions. TFL can help compare dimensions, contact angle, preload, material options, matching requirements, and available alternatives before shipment coordination.
Request Bearing SupportTFL / SDTFL Bearing is an independent bearing supplier and sourcing partner. We help customers source suitable standard or customized bearing alternatives from qualified factory resources and inspect model, quantity, visible condition, packaging, and basic quality requirements before shipment.
FREQUENTLY ASKED QUESTIONS
Why do I need to use these miniature angular contact bearings in pairs?
Are chrome steel options available for these small bearings?
When should I choose these over miniature deep groove bearings?
Do you offer samples? What is the Minimum Order Quantity (MOQ)?
Sample availability and Minimum Order Quantity (MOQ) can vary by product model. Please check the specific product page or contact our sales team for details on the bearing you need.
