Miniature Angular Contact Ball Bearings 706AC

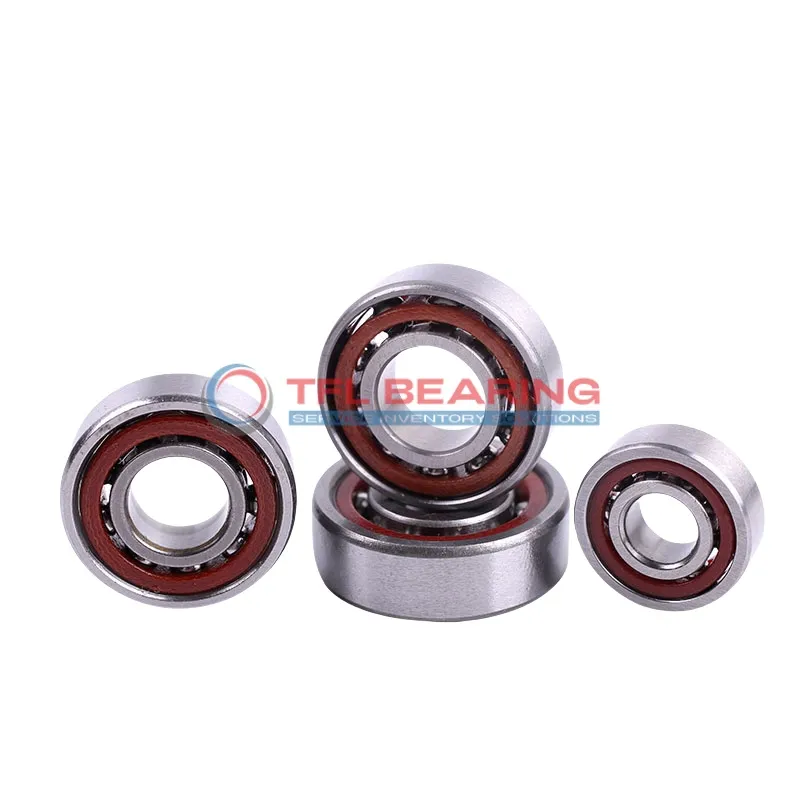

Miniature Angular Contact Ball Bearings 706AC

The 706AC is a compact angular contact ball bearing, measuring just 6mm by 17mm by 6mm, with a 25° contact angle for precise load handling. It comes in sealed or open versions, offering flexibility for different lubrication needs.

This bearing supports high speeds, reaching up to 80,000 RPM with grease and 135,000 RPM with oil. Its universal matching design allows easy pairing for varied setups.

Made with steel or ceramic balls and a durable nylon or phenolic cage, it balances strength and smooth operation. Ideal for small, high-speed devices like dental tools or precision instruments.

Weighing only 6 grams, it’s lightweight yet robust for demanding applications. The ABEC-5 and ABEC-11 ratings ensure reliable performance in precise engineering tasks.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 706AC
  • Brand TFL
  • Bore Dia 6 mm
  • Outer Dia 17 mm
  • Width 6 mm
  • System of Measurement Metric
  • Contact Angle 25°
  • Seal Type Sealed,Open
  • Matched Arrangement Universal matching
  • Preload Available
  • For Load Direction Angular Contact
  • Ball Material Steel,Ceramic
  • Cage Material Nylon,Phenolic
  • Lubrication Lubricated
  • ABEC Rating P5(ABEC-5),P4(ABEC-11)
  • Grease Limited speed (r/min) 80000
  • Oil Limited speed (r/min) 135000
  • Weight 0.006 kg
Miniature Angular Contact Ball Bearings 706AC dimension drawing
Download DWG Download PDF

Features

Why Choose 706AC Bearing for Precision Tasks?

706AC Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its universal matching design allows for flexible arrangements, ensuring optimal performance in various applications.

The choice between steel or ceramic balls offers versatility, catering to different operational needs.
With ABEC-5 and ABEC-11 ratings, 706AC Bearing meets high precision standards for demanding tasks.

Sealed and open options provide adaptability, whether in clean or contaminated environments.
Its compact size (6 mm×17 mm×6 mm) makes it perfect for space-constrained applications.

Lubricated for smooth operation, 706AC Bearing supports high-speed performance up to 135,000 rpm with oil lubrication.
The lightweight design (0.006 kg) ensures minimal inertia, enhancing efficiency in dynamic systems.

Application

Key Fields for 706AC Bearing
In industrial automation, 706AC Bearing excels in small robotic arms and precision machinery due to its compact size and angular contact design. The universal matching feature ensures easy integration into various setups.

Where Is 706AC Bearing Used?
You’ll often spot 706AC Bearing in dental drills and lab equipment, where its sealed options keep contaminants out. The ceramic ball option also makes it suitable for high-speed medical tools.

Perfect Fit for Automation: 706AC Bearing
This bearing works well in 3D printers, providing smooth motion control with its low-friction design. The preload availability helps maintain accuracy during repetitive tasks.

Light-Duty vs Heavy-Duty: Best Uses for 706AC Bearing
While 706AC Bearing handles light loads in optical devices, its phenolic cage version suits moderate-duty applications like small gearboxes. The oil-lubricated option extends its high-speed capabilities.

Designed for Versatility: 706AC Bearing
From electric skateboards to drone motors, 706AC Bearing adapts easily thanks to its multiple material choices. The ABEC-5 rating ensures reliable performance in hobbyist and professional gear alike.
