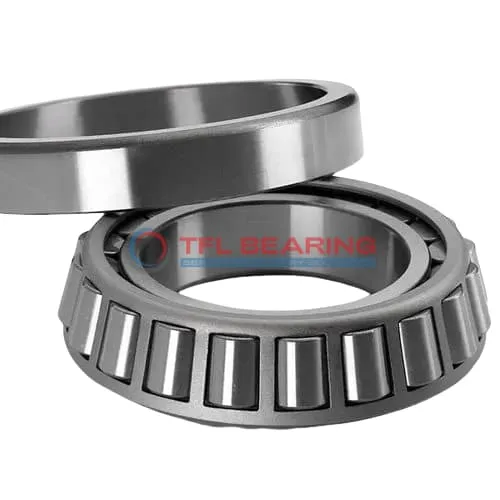

TS (Single Row Tapered Roller Bearings) (Imperial) M231649-M231610

TS (Single Row Tapered Roller Bearings) (Imperial) M231649-M231610

The M231649-M231610 is a single-row tapered roller bearing with a 6″ bore and 8.75″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 84,600 lbf radially and 12,500 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where robust performance is needed.

Weighing 12.6 lb, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M231649-M231610
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 8.75" x 1.8437"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.8437"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.8437"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 7.32"
  • Cone Backface Backing Diameter 6.65"
  • Cup Frontface Backing Diameter 8.43"
  • Cup Backface Backing Diameter 8.15"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.21"
  • Effective Center Location -0.24"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M231649
  • Cup Part Number M231610
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M231600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 84600 lbf
  • Static Radial Load 150000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 21900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.6 lb

Features

How Does M231649-M231610 Bearing Handle Combined Loads?

M231649-M231610 Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 84,600 lbf, making it suitable for heavy-duty industrial applications.
The steel cage ensures proper roller alignment, enhancing stability and reducing wear over time.
With a standard radial clearance option, it provides flexibility for various operational needs.

What Makes M231649-M231610 Bearing Suitable for High-Temperature Applications?

M231649-M231610 Bearing operates reliably in temperatures ranging from -30° to 110°C, thanks to its chrome steel construction.
The open design allows for effective lubrication, ensuring smooth performance even in demanding conditions.
Its tapered roller design distributes loads evenly, reducing heat buildup during operation.
This makes it a dependable choice for applications exposed to varying thermal environments.

Engineered for Precision: M231649-M231610 Bearing

M231649-M231610 Bearing features precise tolerances, with bore and outer diameter tolerances of +0.001″ to 0.
The tapered roller design ensures accurate load distribution, enhancing performance in precision applications.
Its chrome steel components provide durability and resistance to wear, maintaining performance over time.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial use.

Steel vs Ceramic Bearings: Strengths of M231649-M231610 Bearing

M231649-M231610 Bearing uses chrome steel for both rings and rollers, offering excellent strength and durability.
This material choice ensures high load capacity, with a static radial load rating of 150,000 lbf.
The steel cage further enhances reliability, making it a practical choice for heavy industrial use.
Its robust construction outperforms ceramic options in high-load, high-temperature environments.

Application

Industrial Uses of M231649-M231610 Bearing
M231649-M231610 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is M231649-M231610 Bearing Used?
You’ll often find M231649-M231610 Bearing in automotive applications, particularly in wheel hubs and differential systems, where its high load capacity and precision are essential. The inch sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: M231649-M231610 Bearing
M231649-M231610 Bearing excels in industrial gearboxes, providing reliable performance under continuous heavy loads. Its open design allows for easy lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of M231649-M231610 Bearing
In automotive systems, M231649-M231610 Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear mechanisms. The bearing’s robust design ensures stability across different load conditions.

Perfect Fit for Automation: M231649-M231610 Bearing
M231649-M231610 Bearing is ideal for automated conveyor systems, where its tapered rollers reduce friction and improve efficiency. The steel cage adds strength, making it suitable for high-speed operations.
