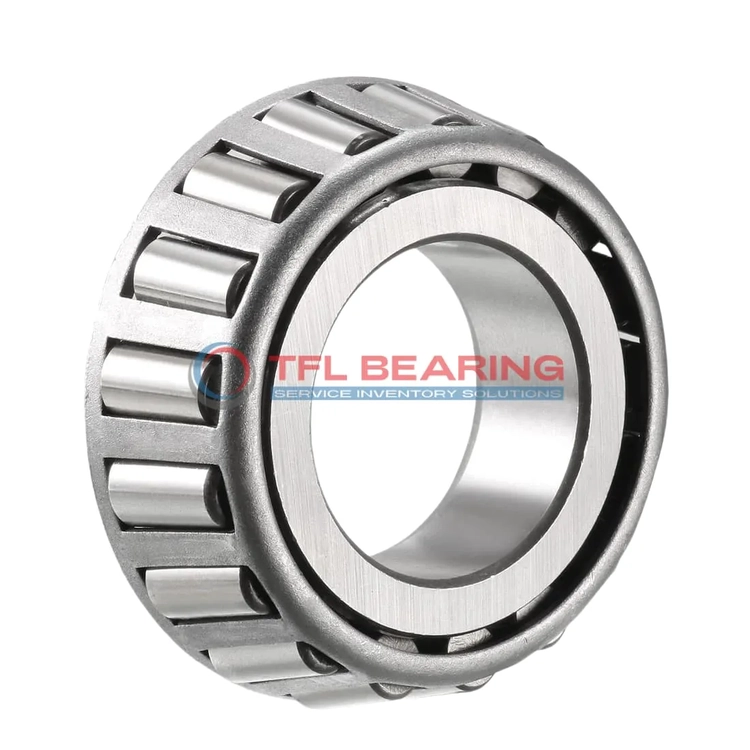

TS (Single Row Tapered Roller Bearings) (Imperial) HH228340-HH228310V

The HH228340-HH228310V is a single-row tapered roller bearing with a 4.75″ bore and 10″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 205,000 lbf radially and 29,200 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where high radial and thrust loads are common.

Weighing 40.9 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HH228340-HH228310V
Brand TFL
Interchangeable Timken
Size 4.75" x 10" x 3.0626"
Bore Dia 4.75"
Bore Dia Tolerance +0.001" to 0
Outer Dia 10"
Outer Dia Tolerance +0.001" to 0
Cone Width 3.25"
Cone Width Tolerance +0.003" to -0.01
Cup Width 2.4375"
Cup Width Tolerance +0.002" to -0.01
Width 3.0626"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.380"
Cup Backface ToClear Radius 0.250"
Cone Frontface Backing Diameter 6.54"
Cone Backface Backing Diameter 6.22"
Cup Frontface Backing Diameter 9.21"
Cup Backface Backing Diameter 8.78"
Cage Cone Frontface Clearance 0.05"
Cage Cone Backface Clearance 0.25"
Effective Center Location -0.92"
System of Measurement Inch
Type Bearing
Cone Part Number HH228340
Cup Part Number HH228310V
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HH228300
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 205000 lbf
Static Radial Load 279000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 53000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 29200 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 40.900 lb

Features

Performance Features of HH228340-HH228310V Bearing

HH228340-HH228310V Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 205,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Is HH228340-HH228310V Bearing Engineered for Reliability?

HH228340-HH228310V Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent resistance to wear, extending its service life.
Its standard radial clearance allows for smooth operation in diverse industrial settings.
The bearing requires lubrication to maintain peak performance over time.

Built for Durability: HH228340-HH228310V Bearing

HH228340-HH228310V Bearing’s chrome steel components ensure long-lasting performance in demanding environments.
With a static radial load capacity of 279,000 lbf, it handles substantial weights with ease.
The tapered roller design distributes loads evenly, reducing stress on individual components.
Its ABEC-1 rating confirms consistent precision in industrial applications.

Steel vs Ceramic Bearings: Strengths of HH228340-HH228310V Bearing

HH228340-HH228310V Bearing uses high-quality chrome steel for both rings and rollers, ensuring durability.
This material choice provides excellent load-bearing capacity compared to ceramic alternatives.
The steel cage maintains proper roller spacing, crucial for smooth operation under heavy loads.
With a weight of 40.900 lb, it’s built for stability in large-scale machinery.

Application

Industrial Uses of HH228340-HH228310V Bearing
HH228340-HH228310V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes HH228340-HH228310V Bearing a Preferred Choice?
In automotive applications, HH228340-HH228310V Bearing supports axles and wheel hubs, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle designs.

Built for Heavy-Duty Use: HH228340-HH228310V Bearing
For industrial gearboxes, HH228340-HH228310V Bearing offers smooth operation and long service life due to its robust steel cage and precise tolerances. The open design allows for easy lubrication and maintenance.

Light-Duty vs Heavy-Duty: Best Uses for HH228340-HH228310V Bearing
HH228340-HH228310V Bearing excels in heavy-duty applications like agricultural machinery, where its high dynamic load capacity is essential. The standard radial clearance ensures consistent performance across various operating conditions.
