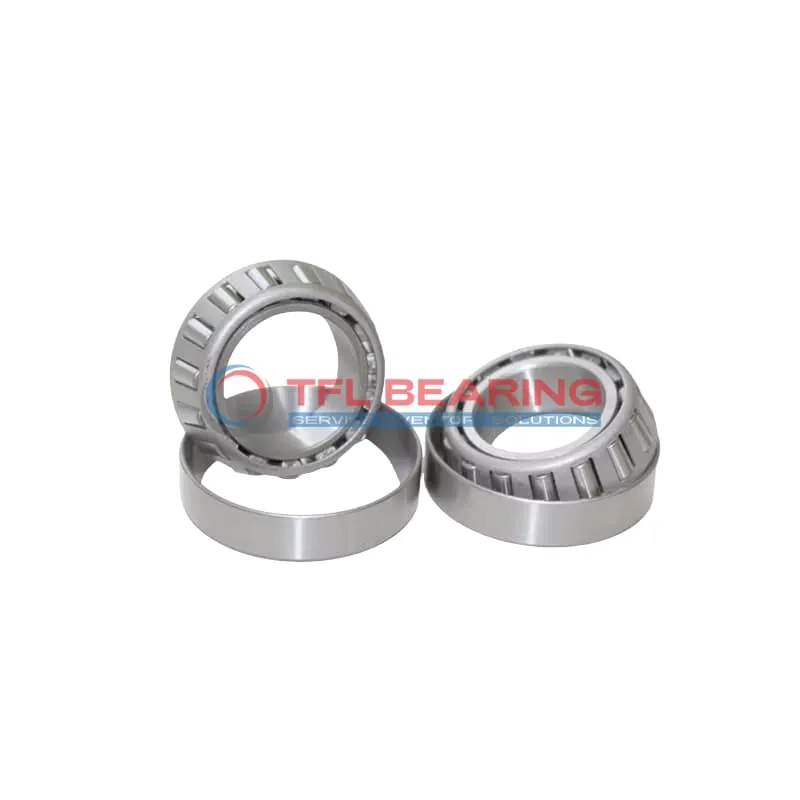

TS (Single Row Tapered Roller Bearings) (Imperial) 776-772

The 776-772 is a single-row tapered roller bearing with a 3.75″ bore and 7.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 77800 lbf radially and 13300 lbf in thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive applications where robust performance is needed.

Weighing 11.9 lb, it’s built to last while maintaining precision. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its tapered roller design ensures even load distribution, reducing wear over time.

Perfect for setups requiring both radial and thrust load support, such as conveyor systems or heavy equipment. The ABEC-1 rating balances precision and cost-effectiveness for most industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 776-772
Brand TFL
Interchangeable Timken
Size 3.75" x 7.125" x 1.875"
Bore Dia 3.75"
Bore Dia Tolerance +0.001" to 0
Outer Dia 7.125"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.89"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.5"
Cup Width Tolerance +0.002" to -0.01
Width 1.875"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 4.92"
Cone Backface Backing Diameter 4.49"
Cup Frontface Backing Diameter 6.65"
Cup Backface Backing Diameter 6.34"
Cage Cone Frontface Clearance 0.07"
Cage Cone Backface Clearance 0.13"
Effective Center Location -0.32"
System of Measurement Inch
Type Bearing
Cone Part Number 776
Cup Part Number 772
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 775
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 77800 lbf
Static Radial Load 111000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 20200 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 13300 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 11.9 lb

Features

Performance Features of 776-772 Bearing

776-772 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 77,800 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it operates effectively in various environments.

How Does 776-772 Bearing Reduce Friction?

776-772 Bearing’s tapered roller design minimises friction, promoting smooth operation under combined loads.
The chrome steel construction ensures durability, even in demanding conditions.
Precision-engineered cage clearances help maintain optimal roller positioning, enhancing efficiency.
This design also contributes to lower maintenance requirements over time.

Engineered for Precision: 776-772 Bearing

776-772 Bearing features precise dimensional tolerances, ensuring accurate fit and performance.
Its ABEC-1 rating confirms consistent quality for industrial applications.
The standard radial clearance option provides flexibility for different operational needs.
With interchangeable compatibility with Timken bearings, it offers convenient replacement options.

Steel vs Ceramic Bearings: Strengths of 776-772 Bearing

776-772 Bearing uses chrome steel for both rings and rollers, balancing strength and cost-effectiveness.
This material choice provides excellent load capacity while maintaining good corrosion resistance.
The steel cage design offers reliable performance without the brittleness of ceramic alternatives.
At 11.9 lb, it maintains a practical weight for its size and load capabilities.

Application

Industrial Uses of 776-772 Bearing
The 776-772 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 776-772 Bearing Used?
You’ll often find the 776-772 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a reliable choice for North American equipment.

Built for Heavy-Duty Use: 776-772 Bearing
In industrial gearboxes, the 776-772 Bearing provides smooth operation under heavy loads, thanks to its tapered rollers and steel cage. Its standard radial clearance offers flexibility for various applications.

Automotive vs Aerospace: Applications of 776-772 Bearing
The 776-772 Bearing is a go-to for truck wheel hubs, offering reliable performance under combined loads. While less common in aerospace, it’s valued in ground support equipment for its durability.

Perfect Fit for Automation: 776-772 Bearing
For conveyor systems in factories, the 776-772 Bearing ensures consistent performance with its tapered roller design. Its open seal type allows for easy lubrication, reducing downtime.
