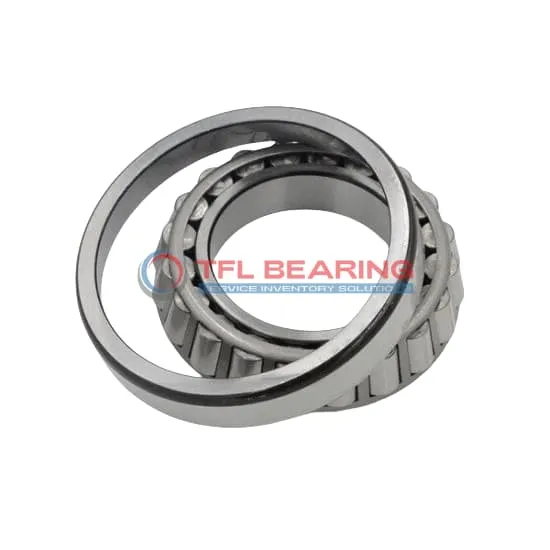

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592XS

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592XS

The 598X-592XS is a single-row tapered roller bearing with a 3.625″ bore and 5.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48600 lbf radially and 9530 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or automotive systems where combined loads are common.

Weighing 4.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598X-592XS
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 5.8125" x 1.4063"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0312"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4063"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.76"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.63"
  • Cup Backface Backing Diameter 5.24"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598X
  • Cup Part Number 592XS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.8 lb

Features

Performance Features of 598X-592XS Bearing

598X-592XS Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

598X-592XS Bearing requires lubrication, ensuring smooth operation over time.
Its standard radial clearance options provide flexibility for different applications.

Application

Industrial Uses of 598X-592XS Bearing
598X-592XS Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 598X-592XS Bearing a Preferred Choice?
In automotive applications, 598X-592XS Bearing supports axle systems and wheel hubs, providing reliable performance under both radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 598X-592XS Bearing
For industrial fans and pumps, 598X-592XS Bearing offers stability and long service life, thanks to its steel cage and precise tolerances. The open design allows for easy lubrication, extending its operational lifespan.

Automotive vs Aerospace: Applications of 598X-592XS Bearing
While 598X-592XS Bearing is popular in truck axles and agricultural machinery, its precision also suits aerospace components like landing gear systems. The ABEC-1 rating ensures consistent performance across these varied uses.
