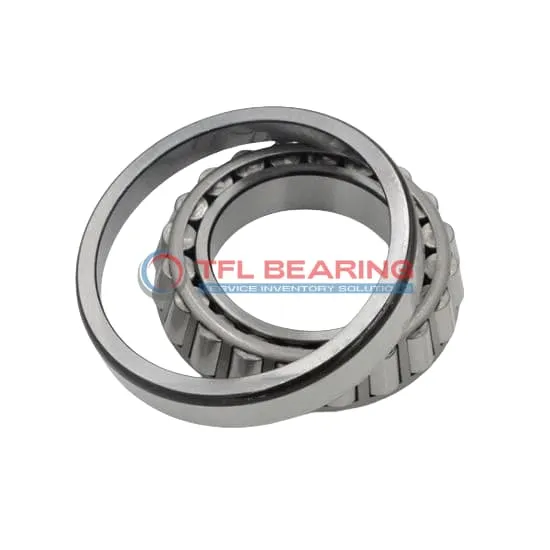

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592AS

The 598X-592AS is a single-row tapered roller bearing with a 3.625″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48600 lbf radially and 9530 lbf thrust, suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 5.4 lb, it offers a balance of strength and manageable size. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 598X-592AS
Brand TFL
Interchangeable Timken
Size 3.625" x 6" x 1.4063"
Bore Dia 3.625"
Bore Dia Tolerance +0.001" to 0
Outer Dia 6"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.43"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.0312"
Cup Width Tolerance +0.002" to -0.01
Width 1.4063"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.03"
Cone Frontface Backing Diameter 4.76"
Cone Backface Backing Diameter 4.21"
Cup Frontface Backing Diameter 5.71"
Cup Backface Backing Diameter 5.39"
Cage Cone Frontface Clearance 0.09"
Cage Cone Backface Clearance 0.15"
Effective Center Location -0.1"
System of Measurement Inch
Type Bearing
Cone Part Number 598X
Cup Part Number 592AS
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 595
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 48600 lbf
Static Radial Load 71600 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 5.4 lb

Features

How Is 598X-592AS Bearing Engineered for Reliability?

598X-592AS Bearing features chrome steel rings and rollers, designed to handle combined loads with ease.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures effective load distribution, reducing stress on individual components.
With a standard radial clearance, it offers flexibility for various operating conditions.

598X-592AS Bearing operates within a temperature range of -30° to 110°C, ensuring performance in diverse environments.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of 598X-592AS Bearing
598X-592AS Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 598X-592AS Bearing Used?
In automotive applications, 598X-592AS Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it a good match for American-made vehicles.

Built for Heavy-Duty Use: 598X-592AS Bearing
This bearing is ideal for industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 598X-592AS Bearing
While 598X-592AS Bearing excels in truck axles and agricultural machinery, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both fields.

Key Fields for 598X-592AS Bearing
In conveyor systems, 598X-592AS Bearing offers smooth operation and long service life due to its tapered roller design. The standard radial clearance provides flexibility for various load requirements.
