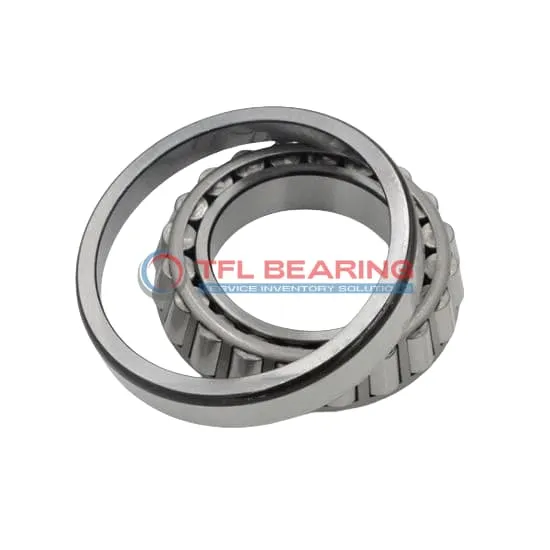

TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592

The 598W-592 is a single-row tapered roller bearing with a 3.625″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48,600 lbf radially and 9,530 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes, axles, or heavy machinery where combined loads are common.

Weighing 5.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance (with options for C3/C4/C5) provides flexibility for different setups. Its ABEC-1 rating ensures dependable performance for general industrial use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 598W-592
Brand TFL
Interchangeable Timken
Size 3.625" x 6" x 1.5625"
Bore Dia 3.625"
Bore Dia Tolerance +0.001" to 0
Outer Dia 6"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.43"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.3125"
Cup Width Tolerance +0.002" to -0.01
Width 1.5625"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 4.64"
Cone Backface Backing Diameter 4.21"
Cup Frontface Backing Diameter 5.71"
Cup Backface Backing Diameter 5.31"
Cage Cone Frontface Clearance 0.09"
Cage Cone Backface Clearance 0.15"
Effective Center Location -0.1"
System of Measurement Inch
Type Bearing
Cone Part Number 598W
Cup Part Number 592
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 595
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 48600 lbf
Static Radial Load 71600 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 5.9 lb

Features

Performance Features of 598W-592 Bearing

598W-592 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, ensuring reliable performance in heavy-duty applications.

The single-row tapered roller design provides stability and efficient load distribution.
With a standard radial clearance option, it suits various operational requirements.

598W-592 Bearing operates smoothly within a temperature range of -30° to 110°C.
The steel cage maintains roller alignment, reducing friction and extending service life.

This bearing requires regular lubrication for optimal performance.
Its precise dimensions and tolerances ensure easy installation and consistent operation.

Application

Common Applications of 598W-592 Bearing
The 598W-592 Bearing is widely used in heavy machinery, such as construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 598W-592 Bearing is often found in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it a preferred choice for North American vehicle models.

For industrial gearboxes, 598W-592 Bearing’s open design allows for easy lubrication, extending its service life in high-speed operations. The steel cage adds stability, reducing wear during prolonged use.

Where Is 598W-592 Bearing Used?
You’ll often spot 598W-592 Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles rough terrain. The tapered rollers distribute loads evenly, minimizing friction.

In conveyor systems, 598W-592 Bearing supports heavy loads while maintaining smooth operation. Its standard radial clearance makes it adaptable to various industrial settings.

Built for Heavy-Duty Use: 598W-592 Bearing
The 598W-592 Bearing excels in forestry equipment, such as log splitters, thanks to its high static radial load capacity. Its chrome steel rollers resist wear, even under constant stress.

In material handling systems, 598W-592 Bearing’s combined load capability ensures reliable performance. The open seal design simplifies maintenance, reducing downtime.

Automotive vs Aerospace: Applications of 598W-592 Bearing
In automotive drivetrains, 598W-592 Bearing handles high torque and radial loads, ensuring smooth power transmission. Its inch sizing aligns with standard vehicle specifications.

For aerospace ground equipment, 598W-592 Bearing provides stability in landing gear test rigs. The ABEC-1 rating balances precision and cost-effectiveness for non-critical applications.
