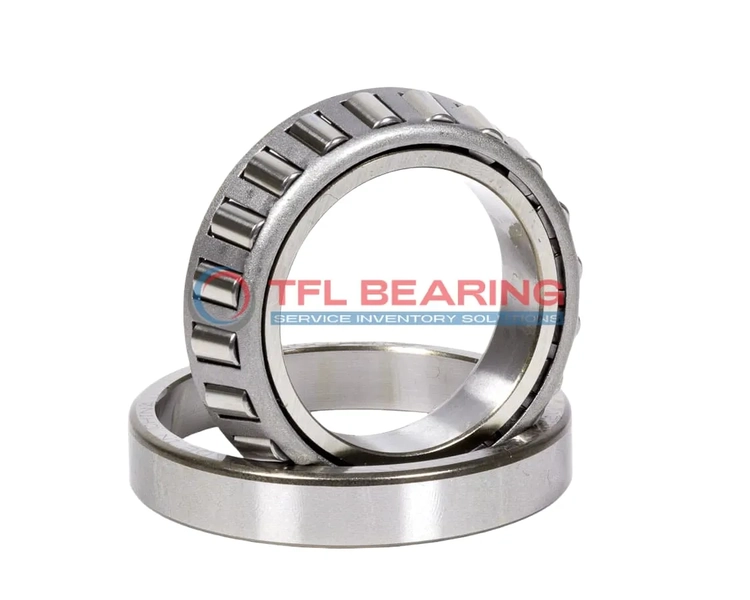

TS (Single Row Tapered Roller Bearings) (Imperial) 582-572X

The 582-572X is a single-row tapered roller bearing with a 3.25″ bore and 5.5″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 46500 lbf radially and 8330 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 4.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

The standard radial clearance can be adjusted to C3, C4, or C5 if needed. Its ABEC-1 rating ensures consistent performance for general applications.

Perfect for scenarios requiring durability and ease of maintenance, such as conveyor systems or wheel hubs. The tapered roller design provides efficient load distribution for longer service life.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 582-572X
Brand TFL
Interchangeable Timken
Size 3.25" x 5.5" x 1.4375"
Bore Dia 3.25"
Bore Dia Tolerance +0.001" to 0
Outer Dia 5.5"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.4212"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.125"
Cup Width Tolerance +0.002" to -0.01
Width 1.4375"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.270"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 4.4"
Cone Backface Backing Diameter 4.09"
Cup Frontface Backing Diameter 5.25"
Cup Backface Backing Diameter 4.92"
Cage Cone Frontface Clearance 0.1"
Cage Cone Backface Clearance 0.12"
Effective Center Location -0.21"
System of Measurement Inch
Type Bearing
Cone Part Number 582
Cup Part Number 572X
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 575
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 46500 lbf
Static Radial Load 65400 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 4.6 lb

Features

Performance Features of 582-572X Bearing

582-572X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures efficient load distribution, reducing stress on individual components.
With a standard radial clearance, it provides reliable performance in various operating conditions.

582-572X Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, enhancing durability and extending service life.

Application

Key Fields for 582-572X Bearing
In industrial settings, 582-572X Bearing is commonly used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 582-572X Bearing Used?
You’ll often find 582-572X Bearing in automotive applications, particularly in wheel hubs and differentials, where its ability to manage radial and thrust loads is essential. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 582-572X Bearing
For construction equipment, 582-572X Bearing provides reliable performance in excavators and cranes, thanks to its robust steel cage and high load capacity. The standard radial clearance offers flexibility for various operational conditions.

Automotive vs Industrial: Applications of 582-572X Bearing
In automotive systems, 582-572X Bearing supports smooth operation in transmissions, while in industrial settings, it excels in pumps and compressors. Its ABEC-1 rating ensures consistent performance across different applications.

Perfect Fit for Automation: 582-572X Bearing
In automated production lines, 582-572X Bearing ensures precise movement in robotic arms and assembly systems. The open design allows for easy lubrication, maintaining performance over long periods.
