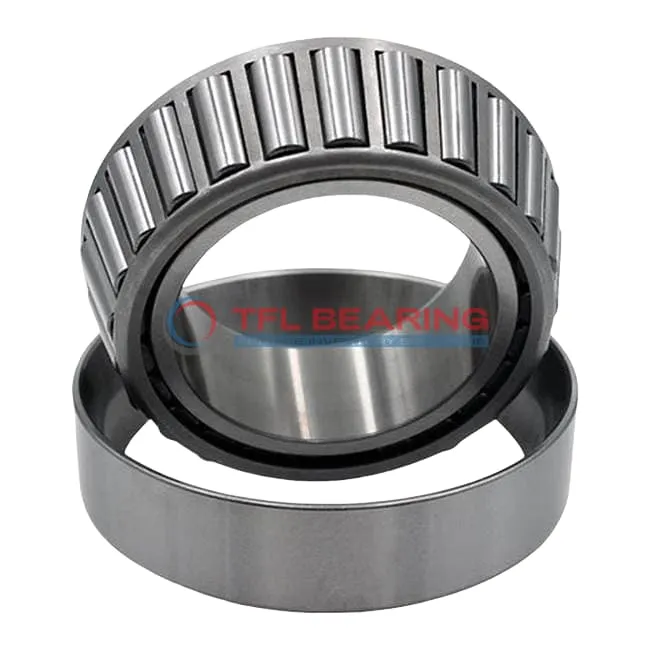

TS (Single Row Tapered Roller Bearings) (Imperial) 560-552AX

The 560-552AX is a single-row tapered roller bearing with a 2.625″ bore and 4.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 50800 lbf radially and 7810 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 4.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 560-552AX
Brand TFL
Interchangeable Timken
Size 2.625" x 4.875" x 1.5"
Bore Dia 2.625"
Bore Dia Tolerance +0.005" to 0
Outer Dia 4.875"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.444"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.1875"
Cup Width Tolerance +0.002" to -0.01
Width 1.5"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.02"
Cone Frontface Backing Diameter 3.66"
Cone Backface Backing Diameter 3.31"
Cup Frontface Backing Diameter 4.60"
Cup Backface Backing Diameter 4.37"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0.07"
Effective Center Location -0.37"
System of Measurement Inch
Type Bearing
Cone Part Number 560
Cup Part Number 552AX
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 555
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 50800 lbf
Static Radial Load 55700 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 13200 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7810 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 4.2 lb

Features

How Is 560-552AX Bearing Engineered for Reliability?

560-552AX Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 50,800 lbf, making it suitable for heavy-duty applications.

The tapered roller design provides effective load distribution, reducing wear and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

560-552AX Bearing operates within a temperature range of -30° to 110°C, maintaining stability in diverse environments.
The steel cage keeps rollers aligned, ensuring smooth operation and reduced maintenance needs.

Application

Industrial Uses of 560-552AX Bearing
560-552AX Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 560-552AX Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a straightforward replacement for Timken equivalents in many vehicles.

For industrial conveyor systems, 560-552AX Bearing’s open design simplifies lubrication and maintenance, keeping operations smooth. The standard radial clearance offers flexibility for different load and speed requirements.

What Makes 560-552AX Bearing a Preferred Choice?
560-552AX Bearing stands out in agricultural machinery, supporting equipment like tractors and harvesters with its robust build. The steel cage adds strength while maintaining smooth roller movement.

In material handling systems, 560-552AX Bearing’s ability to manage both radial and thrust loads makes it versatile. Its ABEC-1 rating ensures consistent performance without overcomplicating precision needs.

Built for Heavy-Duty Use: 560-552AX Bearing
560-552AX Bearing excels in forestry equipment, where its tapered rollers handle shock loads from uneven terrain. The temperature range suits both cold and moderately hot environments.

For railway applications, 560-552AX Bearing’s reliability keeps freight and passenger car wheels running smoothly. The interchangeable design with Timken bearings simplifies sourcing and replacements.
