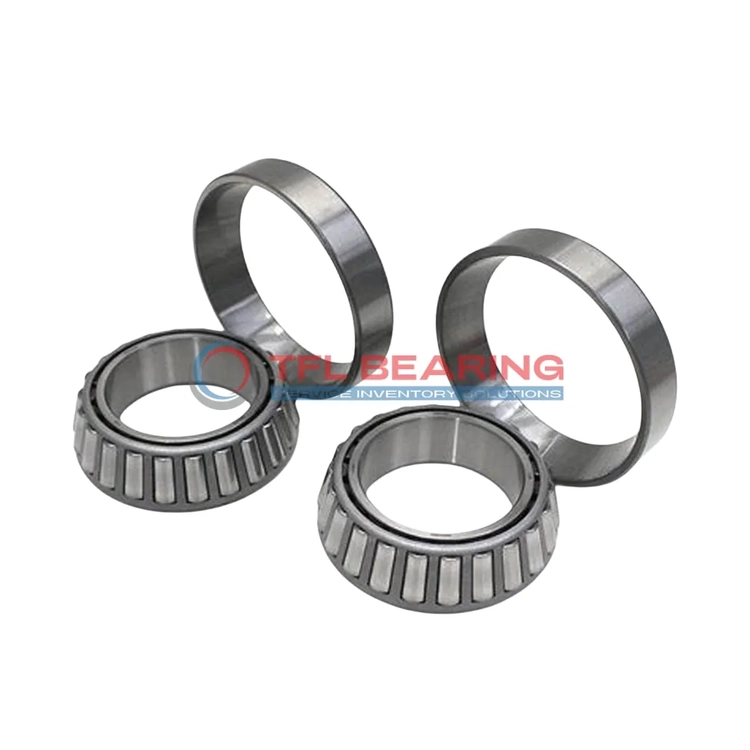

TS (Single Row Tapered Roller Bearings) (Imperial) 5584V-5520

The 5584V-5520 is a single-row tapered roller bearing with a 2.5″ bore and 4.7343″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 63,000 lbf radially and 10,000 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy machinery or automotive uses where combined loads are common.

Weighing 4.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 5584V-5520
Brand TFL
Interchangeable Timken
Size 2.5" x 4.7343" x 1.7499"
Bore Dia 2.5"
Bore Dia Tolerance +0.005" to 0
Outer Dia 4.7343"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.723"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.4375"
Cup Width Tolerance +0.002" to -0.01
Width 1.7499"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 3.57"
Cone Backface Backing Diameter 3.19"
Cup Frontface Backing Diameter 4.56"
Cup Backface Backing Diameter 4.13"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0.07"
Effective Center Location -0.48"
System of Measurement Inch
Type Bearing
Cone Part Number 5584V
Cup Part Number 5520
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 5500
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 63000 lbf
Static Radial Load 73500 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 16300 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10000 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 4.8 lb

Features

Performance Features of 5584V-5520 Bearing

5584V-5520 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 63,000 lbf, ensuring reliable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 5584V-5520 Bearing Engineered for Reliability?

5584V-5520 Bearing features precise cone and cup width tolerances for consistent performance.
The tapered roller design efficiently handles both radial and thrust loads.
Its chrome steel construction provides durability and resistance to wear.
The standard radial clearance options allow for flexibility in different applications.

Built for Durability: 5584V-5520 Bearing

5584V-5520 Bearing’s single-row construction ensures stability under heavy loads.
The open design simplifies lubrication, maintaining smooth operation over time.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Its interchangeable design with Timken bearings offers convenient replacement options.

Application

Industrial Uses of 5584V-5520 Bearing
The 5584V-5520 Bearing is a reliable choice for heavy machinery like construction equipment and agricultural gear, where combined loads are common. Its tapered roller design handles both radial and thrust forces efficiently.

In automotive applications, 5584V-5520 Bearing works well in wheel hubs and differential systems, thanks to its durable chrome steel construction. The inch sizing makes it a good fit for North American vehicle designs.

For industrial fans and pumps, 5584V-5520 Bearing offers steady performance even under high rotational speeds. The open design simplifies lubrication, extending service life in demanding environments.

Where Is 5584V-5520 Bearing Used?
You’ll often find 5584V-5520 Bearing in conveyor systems, where its ability to handle combined loads keeps operations smooth. The steel cage adds durability for long-term use.

In mining equipment, 5584V-5520 Bearing’s robust design withstands harsh conditions like dust and heavy vibrations. Its standard radial clearance ensures reliable performance without frequent adjustments.

Built for Heavy-Duty Use: 5584V-5520 Bearing
The 5584V-5520 Bearing excels in gearboxes and drivetrains, where its tapered rollers distribute loads evenly. Chrome steel components resist wear, even in high-stress scenarios.

For forestry machinery, 5584V-5520 Bearing’s temperature tolerance (-30° to 110°C) ensures consistent operation in varying climates. Its ABEC-1 rating balances precision and affordability for industrial applications.

Automotive vs Aerospace: Applications of 5584V-5520 Bearing
In trucks and buses, 5584V-5520 Bearing supports axles and transmissions, handling heavy loads with ease. The inch sizing aligns with standard repair parts for easy replacement.

While not typically used in aerospace, 5584V-5520 Bearing suits ground-support equipment like tugs and loaders. Its steel cage and open design simplify maintenance in frequent-use scenarios.
