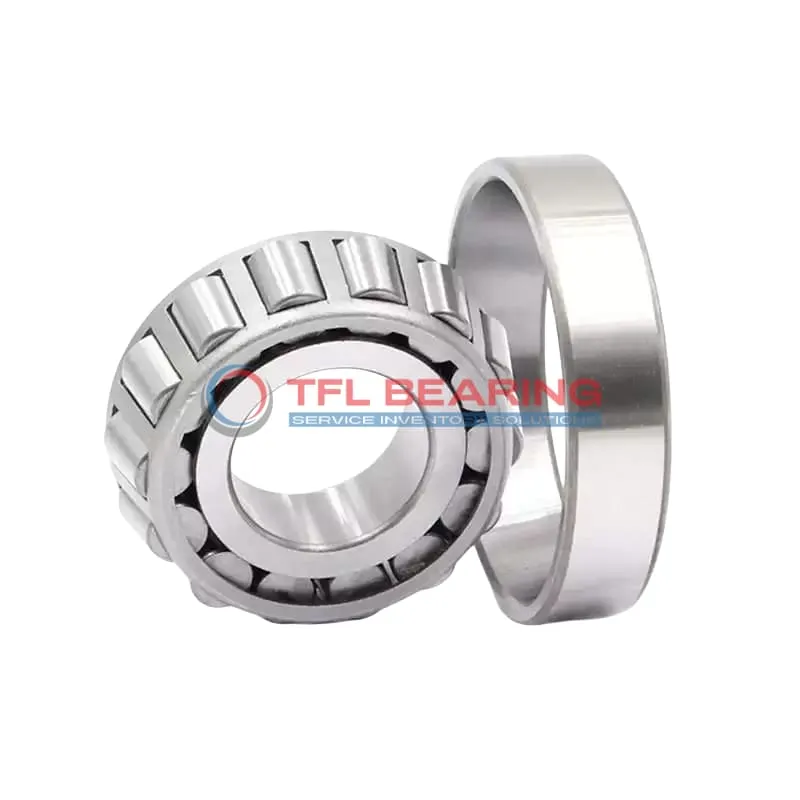

TS (Single Row Tapered Roller Bearings) (Imperial) 497-492A

TS (Single Row Tapered Roller Bearings) (Imperial) 497-492A

The 497-492A is a single-row tapered roller bearing with a 3.375″ bore and 5.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 34700 lbf radially and 6850 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures smooth operation. The bearing operates well in temperatures from -30°C to 110°C, suitable for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like industrial machinery or vehicle axles where combined loads are common.

Weighing 3.1 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 497-492A
  • Brand TFL
  • Interchangeable Timken
  • Size 3.375" x 5.25" x 1.1875"
  • Bore Dia 3.375"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.172"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.43"
  • Cone Backface Backing Diameter 3.9"
  • Cup Frontface Backing Diameter 5.08"
  • Cup Backface Backing Diameter 4.72"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.03"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 497
  • Cup Part Number 492A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 495
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 34700 lbf
  • Static Radial Load 48600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6850 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.1 lb

Features

Performance Features of 497-492A Bearing

497-492A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 34,700 lbf, making it suitable for heavy-duty applications.

The steel cage maintains roller alignment, ensuring smooth operation and reduced wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

497-492A Bearing’s standard radial clearance allows for flexibility in different applications.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Application

Industrial Uses of 497-492A Bearing
497-492A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 497-492A Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 497-492A Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes 497-492A Bearing a Preferred Choice?
497-492A Bearing stands out in mining equipment due to its ability to handle both radial and thrust loads with ease. The standard radial clearance offers flexibility for different operational needs.

In power transmission systems, 497-492A Bearing’s robust design ensures smooth performance under heavy loads. Its compatibility with Timken models makes it a versatile option for maintenance and replacements.
