TS (Single Row Tapered Roller Bearings) (Imperial) 42368-42585

TS (Single Row Tapered Roller Bearings) (Imperial) 42368-42585

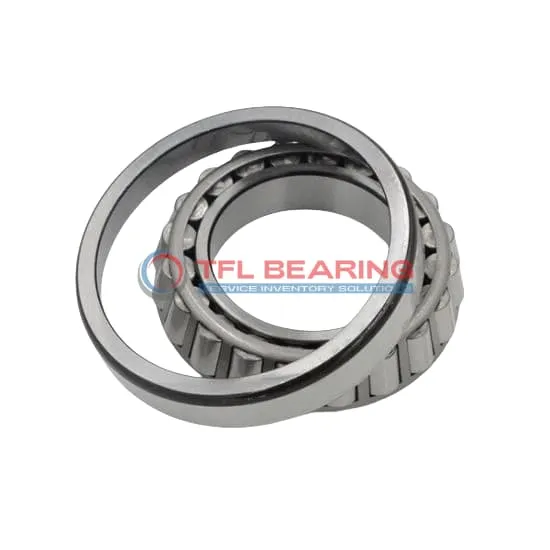

The 42368-42585 is a single-row tapered roller bearing with a 3.6875″ bore and 5.8437″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 43400 lbf radially and 9480 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for widespread use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 42368-42585
  • Brand TFL
  • Interchangeable Timken
  • Size 3.6875" x 5.8437" x 1.1251"
  • Bore Dia 3.6875"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.8437"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1406"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1251"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.72"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.67"
  • Cup Backface Backing Diameter 5.24"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location 0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 42368
  • Cup Part Number 42585
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 42000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 43400 lbf
  • Static Radial Load 54300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9480 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4 lb

Features

Performance Features of 42368-42585 Bearing

42368-42585 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 43400 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

How Is 42368-42585 Bearing Engineered for Reliability?

42368-42585 Bearing features a single row tapered roller design, providing stability under combined loads.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its dynamic thrust rating of 9480 lbf ensures consistent performance in demanding environments.
The open seal design simplifies maintenance, making it a practical choice for industrial use.

Built for Durability: 42368-42585 Bearing

42368-42585 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The chrome steel components resist wear, ensuring a long service life even under heavy stress.
With a static radial load capacity of 54300 lbf, it delivers reliable performance in tough conditions.
The steel cage provides optimal roller guidance, reducing operational noise and vibration.

Application

Industrial Uses of 42368-42585 Bearing
This tapered roller bearing is a solid choice for heavy machinery like construction equipment, where its combined load handling keeps things running smoothly. The chrome steel construction ensures it can take the knocks in tough environments.

In automotive applications, 42368-42585 Bearing works well in wheel hubs and differentials, thanks to its precise imperial sizing. The open design makes lubrication straightforward, which helps with long-term maintenance.

For industrial fans and pumps, 42368-42585 Bearing’s tapered rollers provide reliable support under radial and thrust loads. Its standard radial clearance offers flexibility for different operational needs.

Where Is 42368-42585 Bearing Used?
You’ll often spot this bearing in agricultural machinery, where its durability handles uneven loads from tillers and harvesters. The steel cage adds extra strength for demanding tasks.

It’s also handy in conveyor systems, where the tapered design manages both radial and axial forces efficiently. The inch measurements make it a good fit for older or US-made equipment.

Built for Heavy-Duty Use: 42368-42585 Bearing
This bearing shines in mining equipment, standing up to harsh conditions with its robust chrome steel rollers. The ABEC-1 rating ensures dependable performance without overcomplicating things.

In forestry machinery, 42368-42585 Bearing’s combined load capacity keeps log handlers and chippers moving reliably. The standard lubrication requirement is easy to manage in remote locations.

Automotive vs Aerospace: Applications of 42368-42585 Bearing
While it’s common in truck axles, this bearing isn’t typically used in aircraft due to its weight. For ground vehicles, though, its dynamic load rating makes it a practical pick.

In industrial gearboxes, 42368-42585 Bearing’s tapered rollers handle shifting loads with minimal fuss. The temperature range covers most working environments without special adjustments.
