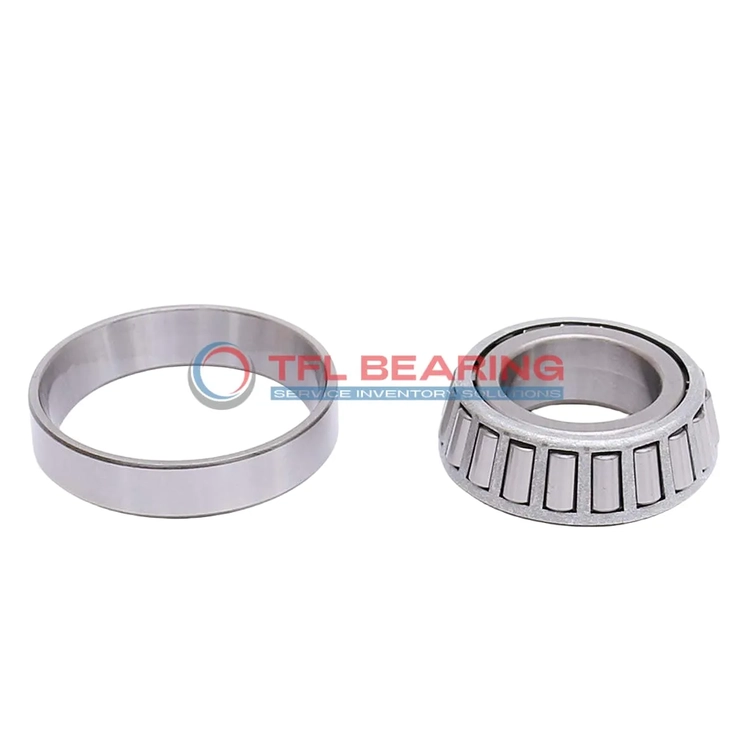

TS (Single Row Tapered Roller Bearings) (Imperial) 3196-3126

TS (Single Row Tapered Roller Bearings) (Imperial) 3196-3126

The 3196-3126 is a single-row tapered roller bearing with a 1.3125″ bore and 2.836″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 21300 lbf radially and 3140 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 1.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3196-3126
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.836" x 1.1876"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.836"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.181"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1876"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.110"
  • Cone Frontface Backing Diameter 1.59"
  • Cone Backface Backing Diameter 1.85"
  • Cup Frontface Backing Diameter 2.68"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3196
  • Cup Part Number 3126
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3100
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 21300 lbf
  • Static Radial Load 22800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5520 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3140 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

Why Choose 3196-3126 Bearing for Combined Loads?

3196-3126 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 21300 lbf, making it suitable for demanding applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Designed for combined loads, 3196-3126 Bearing balances durability and efficiency.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Key Fields for 3196-3126 Bearing
3196-3126 Bearing is widely used in industrial machinery, especially in heavy-duty applications like conveyor systems and gearboxes. Its tapered roller design handles combined loads efficiently, making it a reliable choice for demanding environments.

In automotive applications, 3196-3126 Bearing supports components such as wheel hubs and differential systems. The chrome steel construction ensures durability, while the inch sizing fits seamlessly with imperial-standard vehicles.

For automation equipment, 3196-3126 Bearing provides smooth operation in robotic arms and assembly lines. The open design allows for easy lubrication, maintaining performance over extended periods.

Medical devices benefit from 3196-3126 Bearing’s precision in imaging equipment and surgical tools. The steel cage enhances stability, crucial for maintaining accuracy in high-precision settings.

In consumer electronics, 3196-3126 Bearing is found in printers and power tools, where its robust design ensures long-lasting performance. The standard radial clearance offers versatility for various light-duty applications.
