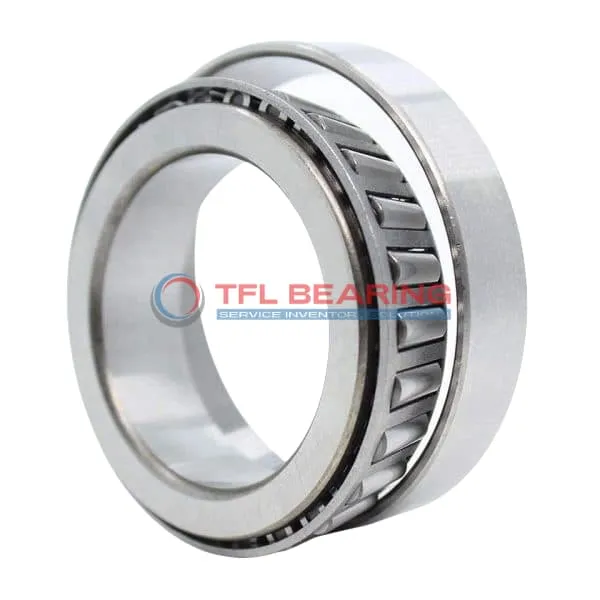

TS (Single Row Tapered Roller Bearings) (Imperial) 07079-07210X

The 07079-07210X is a single-row tapered roller bearing with a 0.7874″ bore and 2″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 6540 lbf radial and 1170 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in automotive or industrial machinery where combined loads are common.

Weighing just 0.3lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 07079-07210X
Brand TFL
Interchangeable Timken
Size 0.7874" x 2" x 0.591"
Bore Dia 0.7874"
Bore Dia Tolerance +0.005" to 0
Outer Dia 2"
Outer Dia Tolerance +0.001" to 0
Cone Width 0.5614"
Cone Width Tolerance +0.003" to -0.01
Cup Width 0.5"
Cup Width Tolerance +0.002" to -0.01
Width 0.591"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.06"
Cup Backface ToClear Radius 0.06"
Cone Frontface Backing Diameter 1.02"
Cone Backface Backing Diameter 1.08"
Cup Frontface Backing Diameter 1.89"
Cup Backface Backing Diameter 1.75"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0"
Effective Center Location -0.11"
System of Measurement Inch
Type Bearing
Cone Part Number 7079
Cup Part Number 07210X
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 7000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 6540 lbf
Static Radial Load 6650 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 0.3 lb

Features

Performance Features of 07079-07210X Bearing

07079-07210X Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 6540 lbf, making it suitable for demanding industrial applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a standard radial clearance, it provides flexibility for various installation requirements.

07079-07210X Bearing operates reliably within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

The bearing’s ABEC-1 rating ensures consistent precision in performance.
Its open design simplifies lubrication, ensuring long-lasting operation.

Application

Industrial Uses of 07079-07210X Bearing
07079-07210X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 07079-07210X Bearing Used?
You’ll often find 07079-07210X Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 07079-07210X Bearing
07079-07210X Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 07079-07210X Bearing
In automotive systems, 07079-07210X Bearing supports high-load components like axles, while in aerospace, its precision helps in auxiliary equipment. The ABEC-1 rating ensures consistent performance across different environments.

Perfect Fit for Automation: 07079-07210X Bearing
07079-07210X Bearing works well in automated conveyor systems, where its tapered rollers reduce friction and improve efficiency. The standard radial clearance option makes it versatile for various setups.
