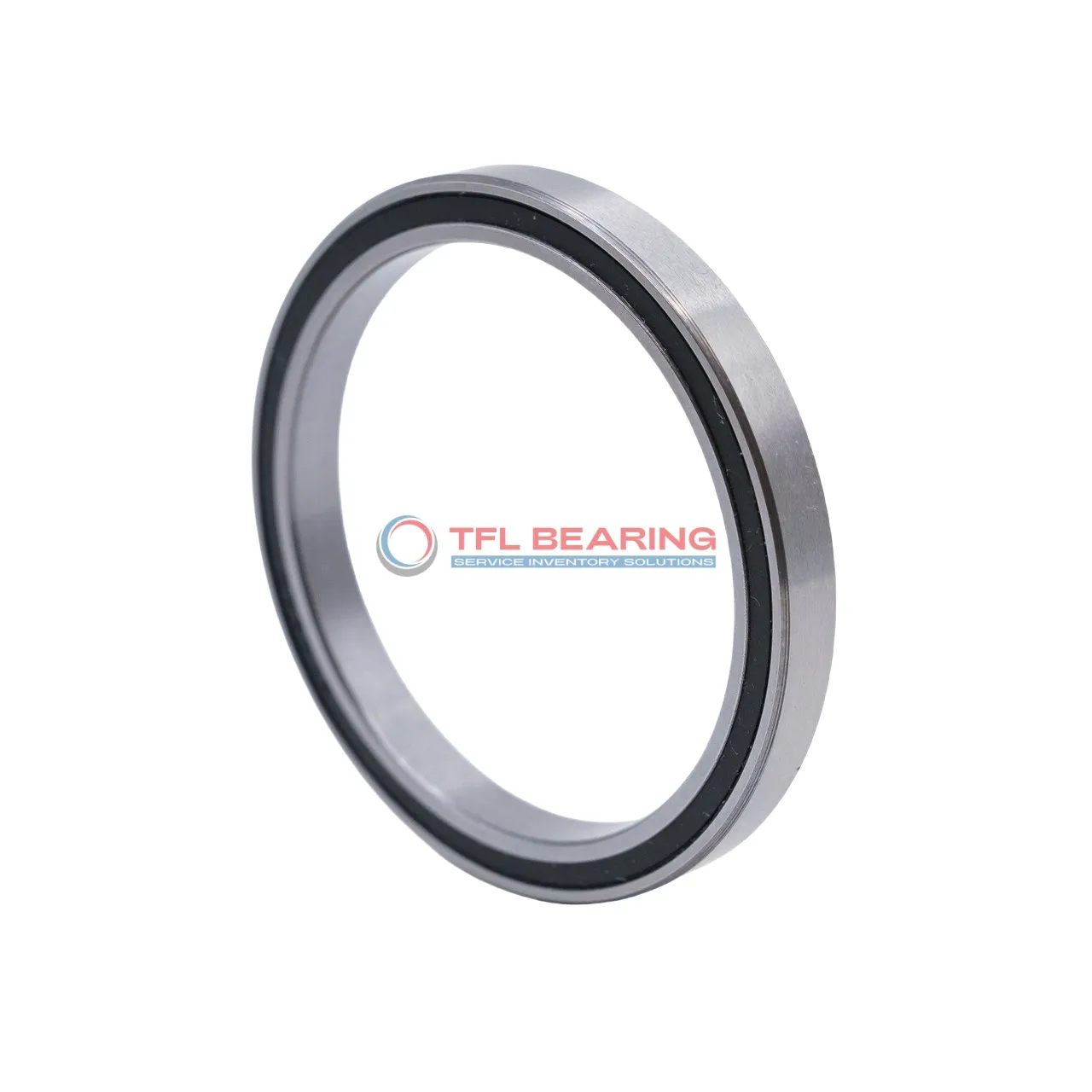

Thin Section Ball Bearings S6800 2rs

Thin Section Ball Bearings S6800 2rs

The S6800 2RS is a compact thin-section ball bearing with a 10mm bore and 19mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 348 lbf and spins efficiently at speeds up to 30,600 RPM.

Its sealed design keeps out dust and moisture, reducing maintenance needs while the stainless steel cage ensures smooth operation. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various environments.

With a slim 5mm width, it fits neatly into tight spaces without sacrificing performance. Ideal for small machinery, medical devices, or precision instruments where space and reliability are key.

Weighing just 5.6g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for eco-conscious applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6800 2rs
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 348 lbf
  • Static Radial Load 170 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30600 rpm
  • Weight 5.6 g
  • Price（$） 1.8
Thin Section Ball Bearings S6800 2rs dimension drawing
Download DWG Download PDF

Features

Performance Features of S6800 2rs Bearing

S6800 2rs Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion.
Its compact size of 10 mm×19 mm×5 mm makes it ideal for applications where space is limited.

The sealed design of S6800 2rs Bearing protects against dust and moisture, ensuring reliable operation.
With a dynamic radial load capacity of 348 lbf, it handles moderate loads efficiently.

S6800 2rs Bearing operates smoothly at high speeds, reaching up to 30,600 rpm.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

The stainless steel cage in S6800 2rs Bearing maintains ball alignment, reducing wear.
It functions in a wide temperature range from -86 to 230 °F, suitable for various environments.

Application

Common Applications of S6800 2RS Bearing
S6800 2RS Bearing works well in small electric motors, thanks to its compact size and sealed design. The stainless steel construction helps it resist corrosion in damp environments.

In robotics, S6800 2RS Bearing fits neatly into joints and pivots, providing smooth movement. Its low profile makes it ideal for space-sensitive designs.

For medical devices like handheld scanners, S6800 2RS Bearing offers quiet operation and reliability. The sealed design keeps contaminants out, ensuring long service life.

Around the home, S6800 2RS Bearing can be found in appliances like blenders and fans. Its lightweight design doesn’t add unnecessary bulk to these everyday items.
