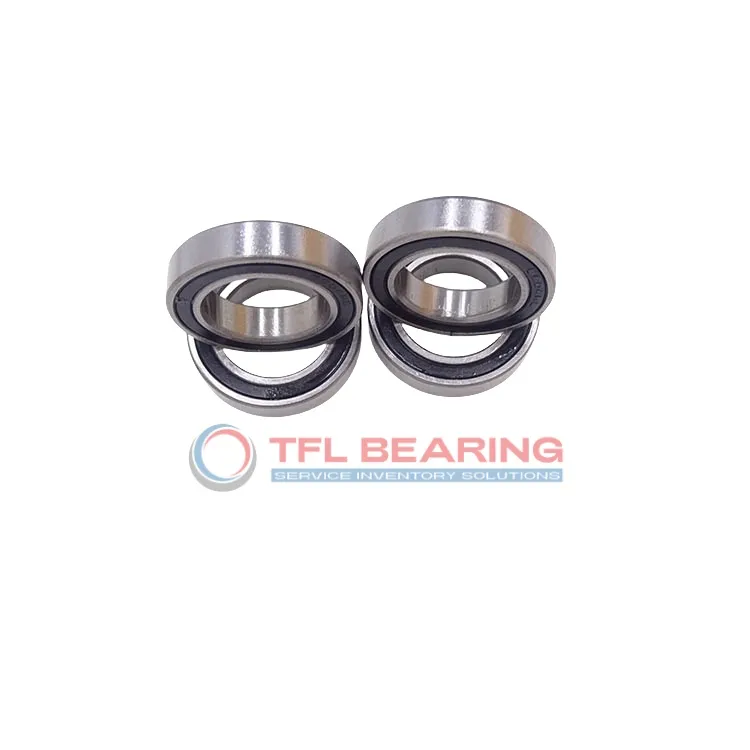

Thin Section Ball Bearings 63800 2rs

Thin Section Ball Bearings 63800 2rs

The 63800 2RS is a compact thin-section ball bearing with a 10mm bore and 19mm outer diameter, measuring just 7mm wide. Made from chrome steel, it handles radial loads up to 387 lbf and spins smoothly at speeds up to 40,000 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The stainless steel cage ensures durability, while the ABEC-1 tolerance offers reliable performance for everyday use.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for various environments. Ideal for small machinery, medical devices, or applications where space is limited.

Weighing only 7.4g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe and practical choice for radial load applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63800 2rs
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 387 lbf
  • Static Radial Load 189 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 7.4 g
  • Price（$） 3.2
Thin Section Ball Bearings 63800 2rs dimension drawing
Download DWG Download PDF

Features

How Does 63800 2rs Bearing Reduce Friction?

63800 2rs Bearing features chrome steel rings and balls, designed to minimise friction during radial load operations.
Its sealed construction helps retain lubrication, ensuring smooth and consistent performance.
With a maximum speed of 40,000 rpm, it delivers efficient operation in compact applications.
The stainless steel cage maintains ball alignment, reducing wear and extending service life.

Built for Reliability: 63800 2rs Bearing

63800 2rs Bearing is constructed with high-quality chrome steel, offering durability in radial load applications.
The sealed design protects against contaminants, enhancing performance in various environments.
Its ABEC-1 tolerance ensures consistent operation, suitable for precision tasks.
With a dynamic radial load capacity of 387 lbf, it handles demanding conditions with ease.

Technical Highlights of 63800 2rs Bearing

63800 2rs Bearing’s compact size (10 mm×19 mm×7 mm) makes it ideal for space-constrained applications.
The sealed design prevents lubricant leakage and keeps out dust, ensuring long-term reliability.
Chrome steel components provide excellent resistance to wear, even at high speeds.
Its temperature range of -30°C to 110°C allows for versatile use in different climates.

Application

Common Applications of 63800 2rs Bearing
The 63800 2rs Bearing is widely used in small electric motors, thanks to its compact 10 mm×19 mm×7 mm size and sealed design. Its chrome steel construction ensures durability in continuous operation.

In automation systems, 63800 2rs Bearing fits well in robotic joints and precision gearboxes, where its ABEC-1 tolerance provides reliable performance. The sealed design also helps keep contaminants out.

For consumer electronics like printers and small fans, 63800 2rs Bearing offers smooth rotation with minimal maintenance. Its lightweight design at just 7.4 g makes it ideal for space-constrained applications.

The bearing’s temperature range of -30°C to 110 °C allows it to perform consistently in various environments, from industrial settings to household devices. Its dynamic radial load capacity of 387 lbf handles everyday stresses with ease.
