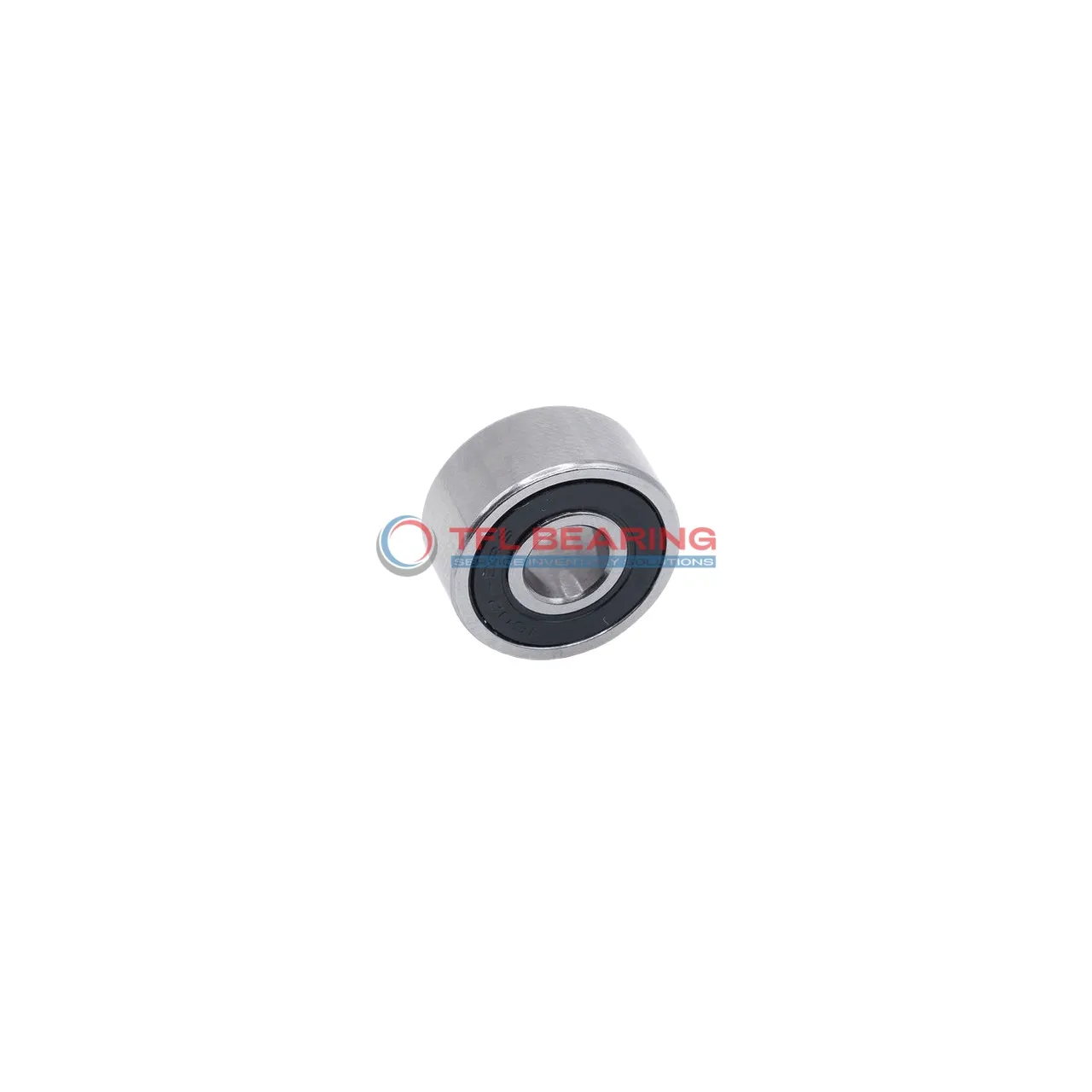

Stainless Steel Deep Groove Ball Bearings D/W R10-2RS1

Stainless Steel Deep Groove Ball Bearings D/W R10-2RS1

The D/W R10-2RS1 is a compact stainless steel deep groove ball bearing, measuring 0.625″ by 1.375″ by 0.34382″. Its sealed design keeps grease in and dirt out, making it low-maintenance.

This single-row bearing handles radial loads up to 1111 lbf and spins smoothly at speeds up to 13,000 RPM. The all-stainless construction resists corrosion and works in temperatures from -30°C to 120°C.

Its precise tolerances ensure a snug fit, while the sealed design extends service life. Ideal for small machinery or food processing equipment where hygiene matters.

Weighing just 0.036kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R10-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.625"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 1.375"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.34382"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1111 lbf
  • Static Radial Load 708 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.036 kg
Stainless Steel Deep Groove Ball Bearings D/W R10-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does D/W R10-2RS1 Bearing Reduce Friction?

D/W R10-2RS1 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.

Its sealed design retains lubrication, reducing wear and maintaining performance over time.

The single-row deep groove design handles radial loads efficiently, with a dynamic radial load capacity of 1111 lbf.

With a maximum speed of 13,000 rpm, it offers reliable performance in various applications.

Application

Common Applications of D/W R10-2RS1 Bearing
D/W R10-2RS1 Bearing is widely used in industrial equipment, such as conveyor systems and small machinery, where its sealed design protects against dust and debris. The stainless steel construction ensures durability in demanding environments.

In automotive applications, D/W R10-2RS1 Bearing fits well in components like electric motors and pumps, offering reliable performance under radial loads. Its inch sizing makes it a versatile choice for various vehicle models.

For medical devices, D/W R10-2RS1 Bearing’s grease lubrication and sealed design provide smooth operation in equipment like lab instruments. The corrosion-resistant materials are ideal for sterile environments.

In household appliances, D/W R10-2RS1 Bearing is often found in fans and small electric tools, where its compact size and reliability are key. The low maintenance requirements make it a practical option for everyday use.
