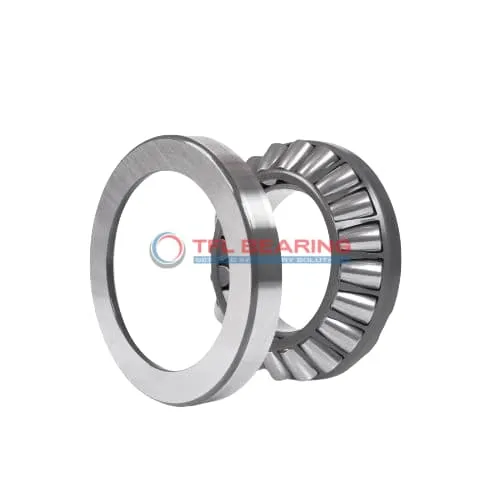

Spherical Roller Thrust Bearings 294/900 EF

Spherical Roller Thrust Bearings 294/900 EF

The 294/900 EF is a large spherical roller thrust bearing with a 900mm bore and 1520mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 6,002,399 lbf and operates smoothly at speeds up to 300 RPM.

Made from sturdy steel, its single-row design includes a steel cage for reliable performance under stress. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers help manage misalignment, making it suitable for demanding industrial settings. Ideal for heavy machinery like mining equipment or large gear systems where high load capacity is crucial.

Weighing 2650kg, this robust bearing meets RoHS and REACH standards. It’s interchangeable with SKF models, offering a practical replacement option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 294/900 EF
  • Brand TFL
  • Interchangeable SKF
  • Size 900 mm x 1520 mm x 372 mm
  • Bore Dia 900 mm
  • Bore Dia Tolerance -0.1 to 0
  • Outer Dia 1520 mm
  • Outer Dia Tolerance -0.16 to 0
  • Width 372 mm
  • Outside Diameter(d1) 1394 mm
  • Shoulder Diameter Outer Ring (D1) 1137 mm
  • Height Shaft Washer Cage(B1) 360 mm
  • Height Housing Washer(C) 186 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 518 mm
  • Chamfer Dimension Shaft Washer(r1,2) 15 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 6002399 lbf
  • Static Thrust Load 27426691 lbf
  • Max Speed 300 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2650 kg
  • Height Tolerance -0.3 to 0
  • Price（$） 6575.4

Features

Performance Features of 294/900 EF Bearing

294/900 EF Bearing is built for combined load direction, making it versatile for various industrial applications.
Its steel rollers and cage provide robust support, handling dynamic thrust loads up to 6,002,399 lbf.

The spherical roller design ensures smooth operation, even under heavy loads and misalignment conditions.
With a maximum speed of 300 rpm, it balances performance and durability in demanding environments.

294/900 EF Bearing operates efficiently within a temperature range of -30 to 100°C, suitable for diverse conditions.
Its large dimensions (900 mm bore and 1,520 mm outer diameter) cater to heavy machinery needs.

The single-row construction simplifies installation while maintaining high load capacity.
Regular lubrication ensures long service life and consistent performance.

Application

Industrial Uses of 294/900 EF Bearing
The 294/900 EF Bearing is commonly used in heavy machinery like mining equipment and large-scale industrial presses, where its spherical roller design handles combined loads efficiently. Its robust steel construction ensures durability even in demanding environments.

Where Is 294/900 EF Bearing Used?
You’ll often find the 294/900 EF Bearing in wind turbines and hydroelectric generators, where its high load capacity supports smooth rotation under extreme conditions. The metric sizing makes it a reliable choice for global applications.

Built for Heavy-Duty Use: 294/900 EF Bearing
This bearing excels in steel mills and ship propulsion systems, thanks to its ability to manage both radial and axial loads. The steel cage and rollers provide long-lasting performance with minimal maintenance.

Automotive vs Aerospace: Applications of 294/900 EF Bearing
In automotive, the 294/900 EF Bearing suits large trucks and construction vehicles, while in aerospace, it’s used in ground support equipment. Its temperature range and load capacity make it versatile across industries.

Practical Applications of 294/900 EF Bearing
For conveyor systems in ports or heavy material handling, the 294/900 EF Bearing offers reliable performance. Its lubrication requirement ensures smooth operation even under continuous use.
