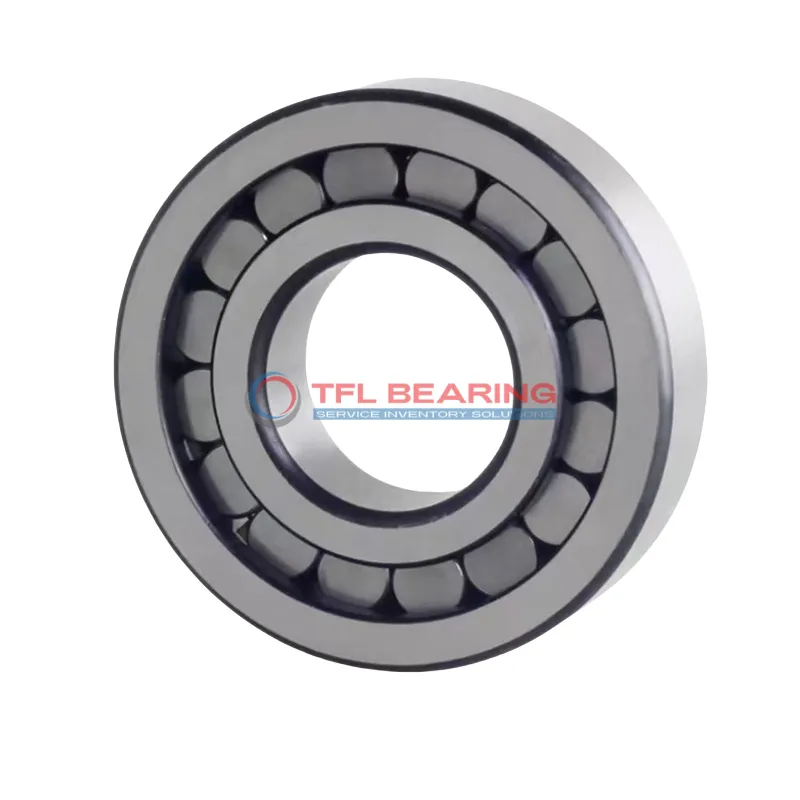

Single Row Full Complement Cylindrical Roller Bearings NCF 3076 V

Single Row Full Complement Cylindrical Roller Bearings NCF 3076 V

The NCF 3076 V is a single-row full complement cylindrical roller bearing with a 380mm bore and 560mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 607500 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows for easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 110kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3076 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 135 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 431 mm
  • Shoulder Dia Outer Ring 504 mm
  • Raceway Diameter Outer Ring 520.5 mm
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 14 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 607500 lbf
  • Static Radial Load 1147500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 110 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 3076 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3076 V Bearing

NCF 3076 V Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load capacity reaches 607,500 lbf, making it suitable for heavy-duty industrial applications.

The single-row cylindrical design ensures smooth operation under combined loads, enhancing performance in demanding conditions.
With a maximum speed of 1,000 rpm, it balances efficiency and reliability for long-term use.

NCF 3076 V Bearing operates in temperatures from -30° to 110°C, adapting to various industrial environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NCF 3076 V Bearing
NCF 3076 V Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding environments.

What Makes NCF 3076 V Bearing a Preferred Choice?
With its chrome steel construction, NCF 3076 V Bearing offers durability in applications like rolling mills and mining equipment. The absence of a cage means more rollers can fit, boosting load capacity without compromising speed.

Built for Heavy-Duty Use: NCF 3076 V Bearing
NCF 3076 V Bearing excels in wind turbine gearboxes, where its combined load capability and high dynamic rating are essential. The generous axial displacement tolerance also accommodates thermal expansion in large-scale setups.

Automotive vs Aerospace: Applications of NCF 3076 V Bearing
In automotive testing rigs, NCF 3076 V Bearing withstands extreme loads during endurance trials. Meanwhile, its precision makes it suitable for aerospace ground support equipment requiring reliable rotation under stress.
