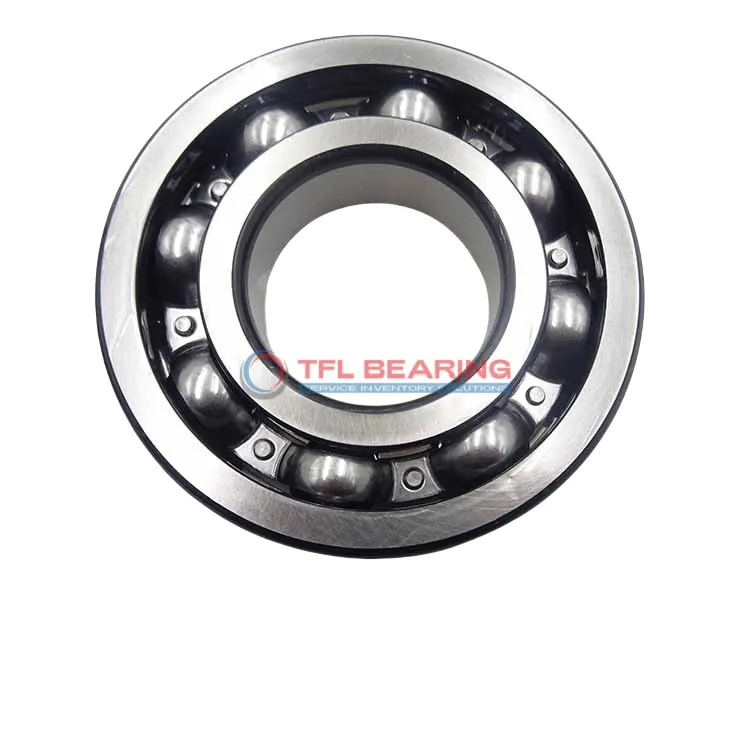

Single Row Deep Groove Ball Bearings 6332 M/C3VL2076

The 6332 M/C3VL2076 is a single-row deep groove ball bearing with a 160mm bore and 340mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 62047 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design and machined metal cage ensure durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large motors where radial loads are predominant.

Weighing 29.9kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6332 M/C3VL2076
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 160 mm
Bore Dia Tolerance -0.018mm to 0
Outer Dia 340 mm
Outer Dia Tolerance -0.028mm to 0
Width 68 mm
Width Tolerance -0.25mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Machined metal
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 62047 lbf
Static Radial Load 64071 lbf
Max Speed 3800 rpm
Weight 29.9 kg
price（$） 961.2

Single Row Deep Groove Ball Bearings 6332 M/C3VL2076 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6332 M/C3VL2076 Bearing

6332 M/C3VL2076 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 62047 lbf, ensuring reliable performance in demanding applications.

The machined metal cage keeps the balls aligned, reducing wear and extending service life.
With a maximum speed of 3,800 rpm, it balances durability and efficiency.

6332 M/C3VL2076 Bearing operates in temperatures from -30° to 120°C, making it suitable for various environments.
Its open design simplifies maintenance, reducing operational costs.

The C3 radial clearance provides flexibility in different operating conditions.
This makes 6332 M/C3VL2076 Bearing a practical choice for industrial applications.

Application

Industrial Uses of 6332 M/C3VL2076 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its radial load capacity and C3 clearance ensure reliable performance. The chrome steel construction provides durability in demanding environments.

Where Is 6332 M/C3VL2076 Bearing Used?
You’ll often find 6332 M/C3VL2076 Bearing in wind turbines and mining equipment, thanks to its ability to handle high radial loads. Its open design simplifies maintenance, making it a practical choice for hard-to-reach areas.

Built for Heavy-Duty Use: 6332 M/C3VL2076 Bearing
In construction equipment like cranes and excavators, 6332 M/C3VL2076 Bearing offers stability under heavy loads. The machined metal cage enhances its strength, ensuring long service life even in tough conditions.

Automotive vs Aerospace: Applications of 6332 M/C3VL2076 Bearing
While 6332 M/C3VL2076 Bearing isn’t typically used in aerospace, it’s great for large commercial vehicles like buses and trucks. Its metric sizing and radial load capacity make it a dependable option for automotive drivetrains.
