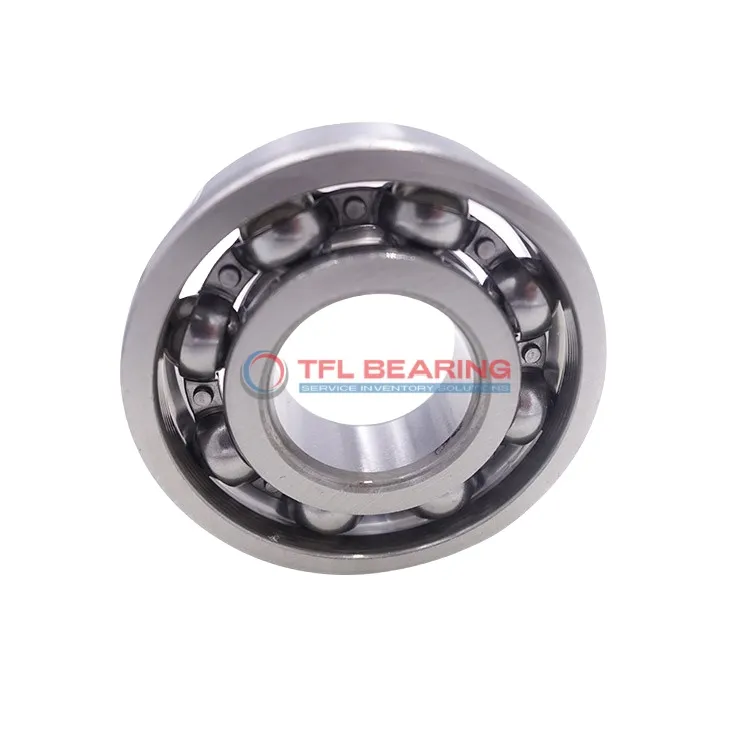

Single Row Deep Groove Ball Bearings 6319 M

The 6319 M is a single-row deep groove ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 35745 lbf and operates smoothly at speeds up to 6300 RPM.

Its open design allows for easy lubrication, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 7.06kg, it’s a robust option for heavy-duty use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6319 M
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 95 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 200 mm
Outer Dia Tolerance -0.020mm to 0
Width 45 mm
Width Tolerance -0.2mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 35745 lbf
Static Radial Load 26527 lbf
Max Speed 6300 rpm
Weight 7.06 kg

Single Row Deep Groove Ball Bearings 6319 M dimension drawing

Download DWG Download PDF

Features

Performance Features of 6319 M Bearing

6319 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 35,745 lbf.
Its stainless steel cage ensures smooth operation and reduces wear during high-speed rotation.

The single row deep groove design of 6319 M Bearing enhances stability and efficiency in radial load applications.
With a maximum speed of 6,300 rpm, it delivers reliable performance in various industrial settings.

6319 M Bearing operates effectively in temperatures ranging from -30° to 120°C, suitable for diverse environments.
Its precision P6 tolerance class ensures consistent performance and long service life.

The open seal design of 6319 M Bearing allows for easy maintenance and lubrication.
Its robust construction makes it a dependable choice for heavy-duty machinery and equipment.

Application

Industrial Uses of 6319 M Bearing
6319 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6319 M Bearing Used?
You’ll often find 6319 M Bearing in conveyor systems and electric motors, thanks to its robust chrome steel construction. Its P6 tolerance class makes it suitable for applications requiring precise alignment and smooth operation.

Built for Heavy-Duty Use: 6319 M Bearing
6319 M Bearing handles high radial loads in applications like agricultural equipment and construction machinery. The stainless steel cage adds durability, making it a dependable choice for harsh environments.

Automotive vs Industrial: Applications of 6319 M Bearing
In automotive systems, 6319 M Bearing supports components like wheel hubs and transmissions. For industrial use, it excels in machinery requiring consistent performance under heavy loads.

Perfect Fit for Automation: 6319 M Bearing
6319 M Bearing is ideal for robotic arms and automated production lines, where its precision and reliability are key. The wide temperature range ensures stable performance in varying operating conditions.
