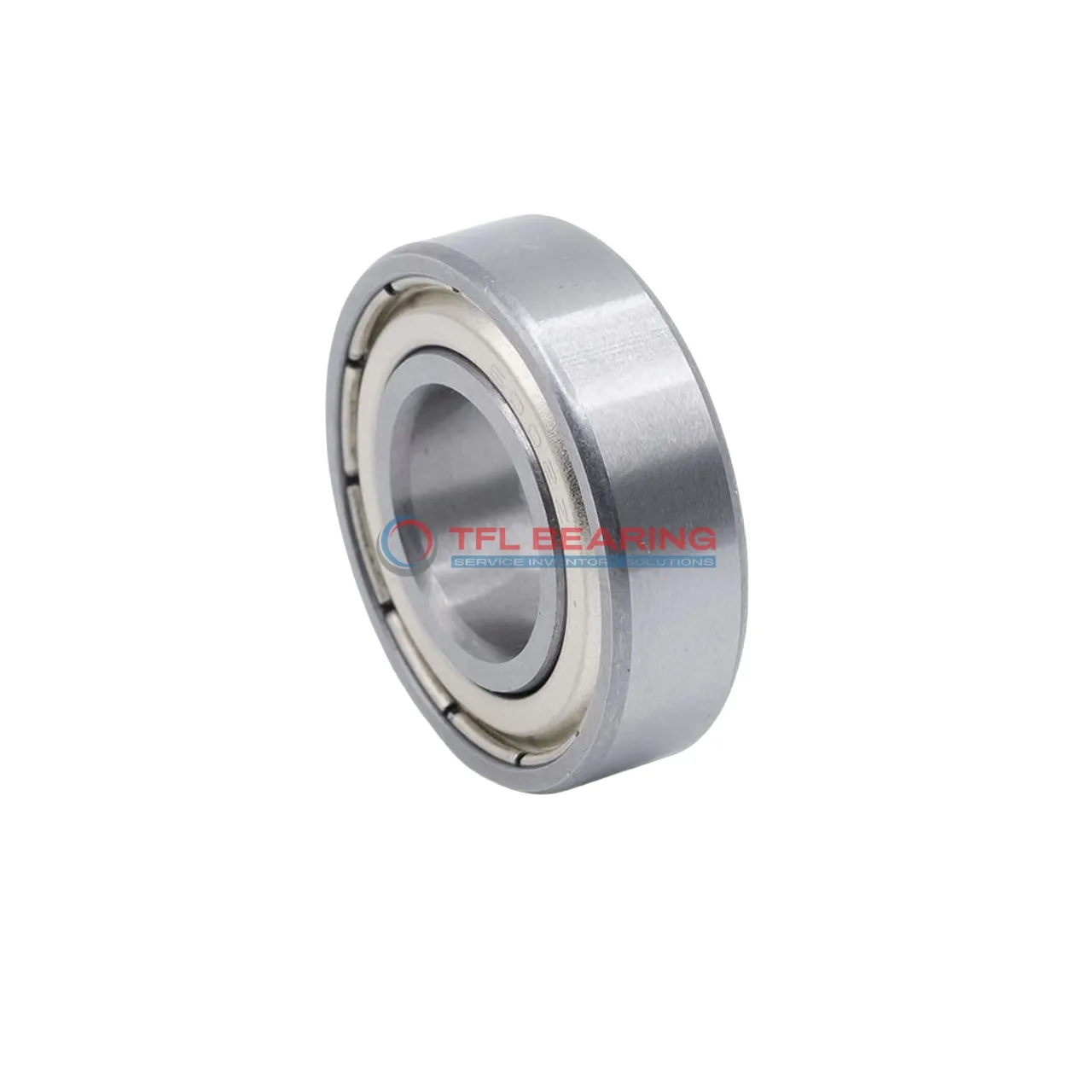

Single Row Deep Groove Ball Bearings 6306-Z/C2E

The 6306-Z/C2E is a single-row deep groove ball bearing with a 30mm bore and 72mm outer diameter, crafted from sturdy chrome steel for durability. It supports radial loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Shielded on one side, it keeps contaminants out while maintaining easy access for lubrication. The C2 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or machinery where consistent radial load handling is needed.

Weighing 346g, it’s lightweight yet robust, and complies with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6306-Z/C2E
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C2
Bore Dia 30 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 72 mm
Outer Dia Tolerance -0.013mm to 0
Width 19 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 6002 lbf
Static Radial Load 3372 lbf
Max Speed 9600 rpm
Weight 346 g

Single Row Deep Groove Ball Bearings 6306-Z/C2E dimension drawing

Download DWG Download PDF

Features

Why Choose 6306-Z/C2E Bearing for Precision Tasks?

6306-Z/C2E Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The C2 radial clearance provides optimal performance, balancing precision and load capacity.
With a dynamic radial load of 6002 lbf, it handles demanding conditions reliably.

6306-Z/C2E Bearing operates efficiently at speeds up to 9,600 rpm, making it suitable for high-speed applications.
Its temperature range of -30°C to 120°C ensures consistent performance in varied environments.

Application

Common Applications of 6306-Z/C2E Bearing
In industrial settings, 6306-Z/C2E Bearing is commonly used in electric motors and pumps due to its reliable radial load capacity. The shielded design helps keep contaminants out, extending its service life in dusty environments.

Where Is 6306-Z/C2E Bearing Used?
You’ll often find 6306-Z/C2E Bearing in automotive applications like alternators and water pumps, where its C2 clearance ensures smooth operation. Its chrome steel construction also handles moderate speeds well, making it a versatile choice.

Ideal for Precision: 6306-Z/C2E Bearing
For small machinery and appliances, 6306-Z/C2E Bearing offers a balance of durability and cost-effectiveness. The metric sizing fits neatly into compact designs, from power tools to conveyor systems.

Automotive vs Industrial: Applications of 6306-Z/C2E Bearing
In cars, 6306-Z/C2E Bearing supports auxiliary components like fans and pulleys, while in factories, it’s trusted for light conveyor systems. The temperature range suits both environments without compromising performance.
