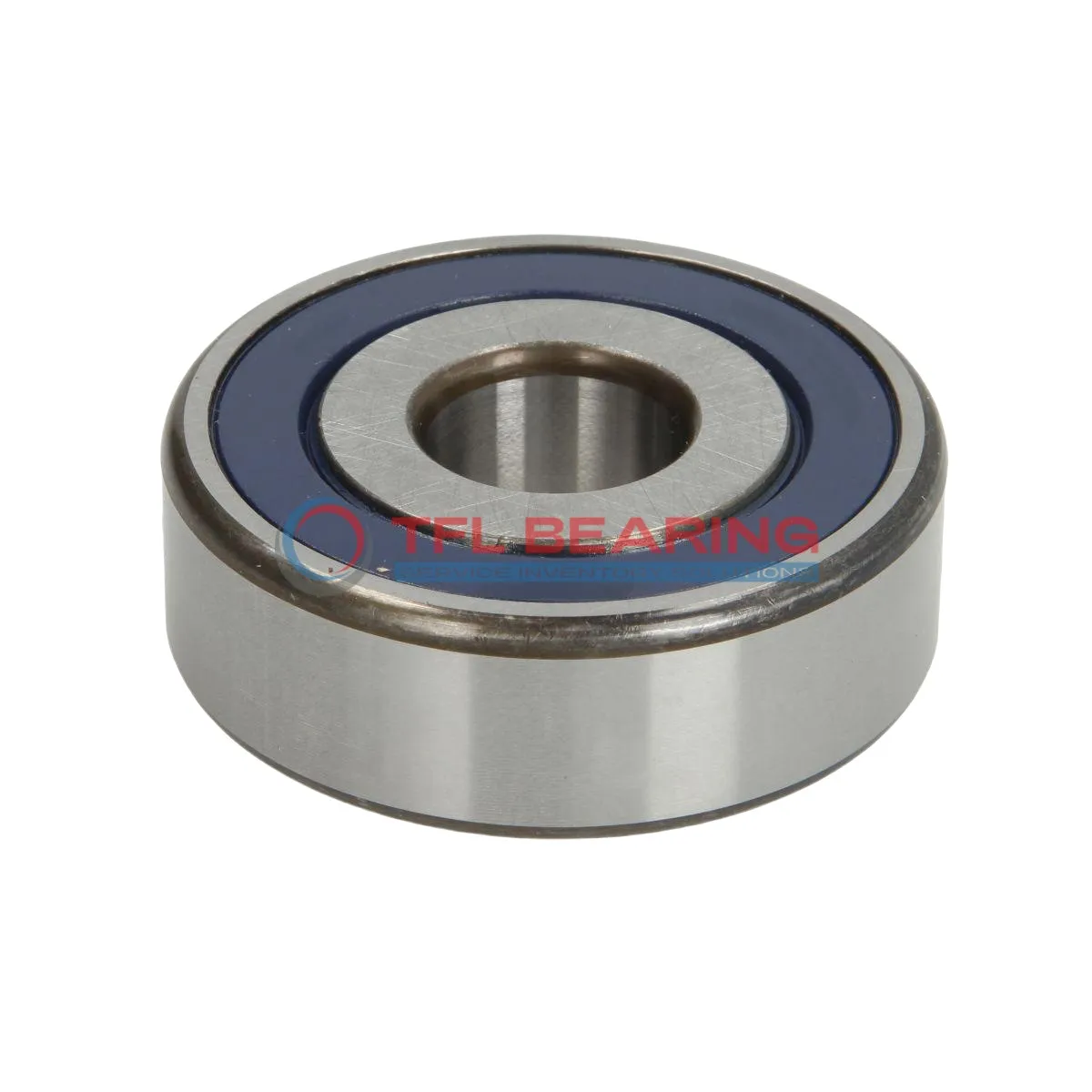

Single Row Deep Groove Ball Bearings 6305-2RS1/C3LTVT210

Single Row Deep Groove Ball Bearings 6305-2RS1/C3LTVT210

The 6305-2RS1/C3LTVT210 is a single row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ensuring reliable performance.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 232g, it’s lightweight yet durable. It operates in temperatures from -30°C to 120°C and meets RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1/C3LTVT210
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g

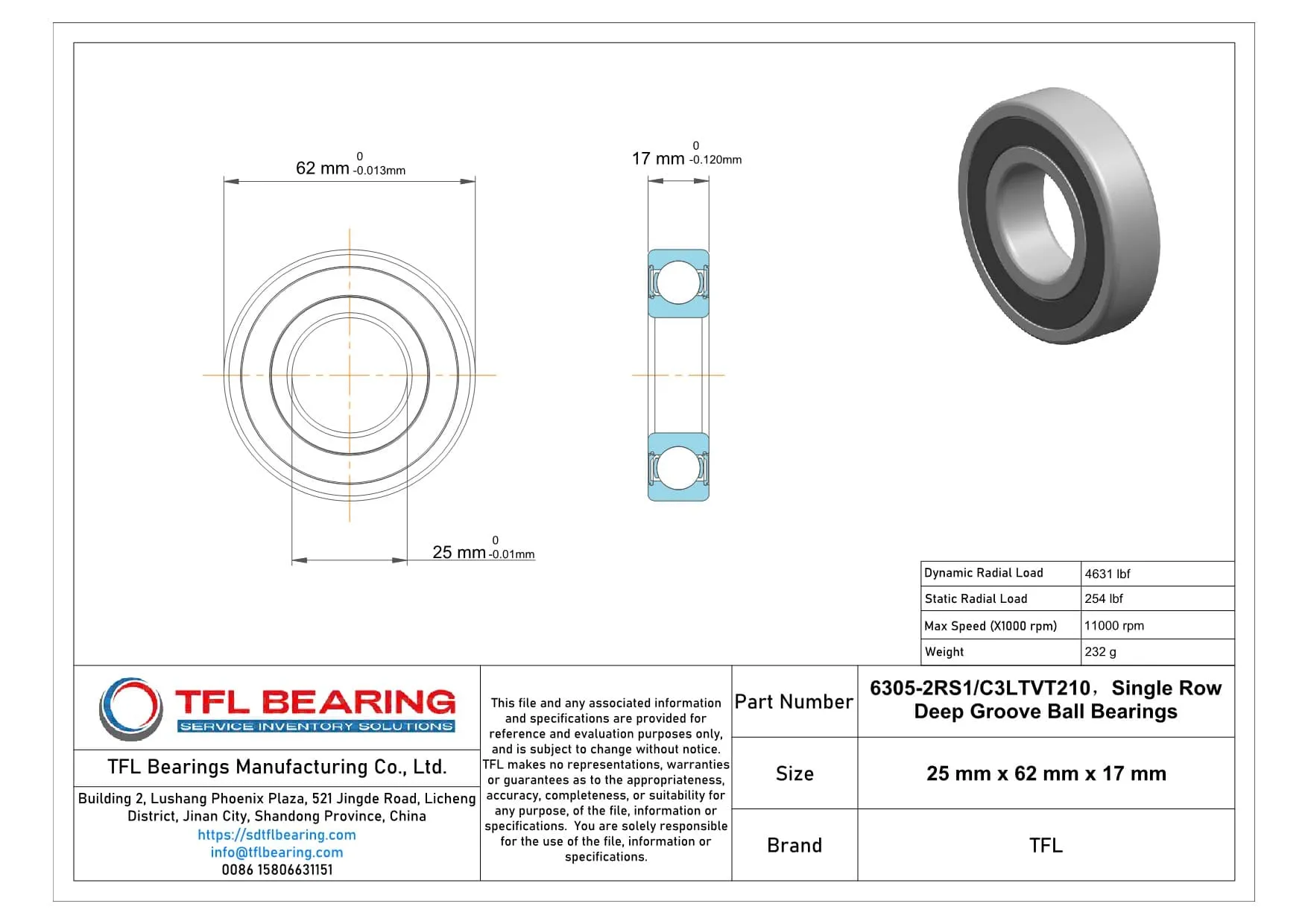

Single Row Deep Groove Ball Bearings 6305-2RS1/C3LTVT210 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6305-2RS1/C3LTVT210 Bearing

6305-2RS1/C3LTVT210 Bearing is designed for radial loads, with a dynamic radial load capacity of 4631 lbf.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.
The chrome steel rings and balls provide durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 11,000 rpm, it offers reliable performance in high-speed applications.

Application

Common Applications of 6305-2RS1/C3LTVT210 Bearing
In industrial settings, 6305-2RS1/C3LTVT210 Bearing is widely used in conveyor systems and electric motors, thanks to its sealed design that keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6305-2RS1/C3LTVT210 Bearing Used?
You’ll often find 6305-2RS1/C3LTVT210 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel rings and balls provide long-lasting durability.

Optimized for Performance: 6305-2RS1/C3LTVT210 Bearing
For household appliances like washing machines, 6305-2RS1/C3LTVT210 Bearing offers smooth and quiet operation. Its sealed design helps maintain lubrication, reducing maintenance needs over time.

Automotive vs Industrial: Applications of 6305-2RS1/C3LTVT210 Bearing
In automotive uses, 6305-2RS1/C3LTVT210 Bearing handles radial loads in gearboxes, while in industrial machinery, it supports fans and pumps. The ABEC 1 tolerance ensures consistent performance across both sectors.
