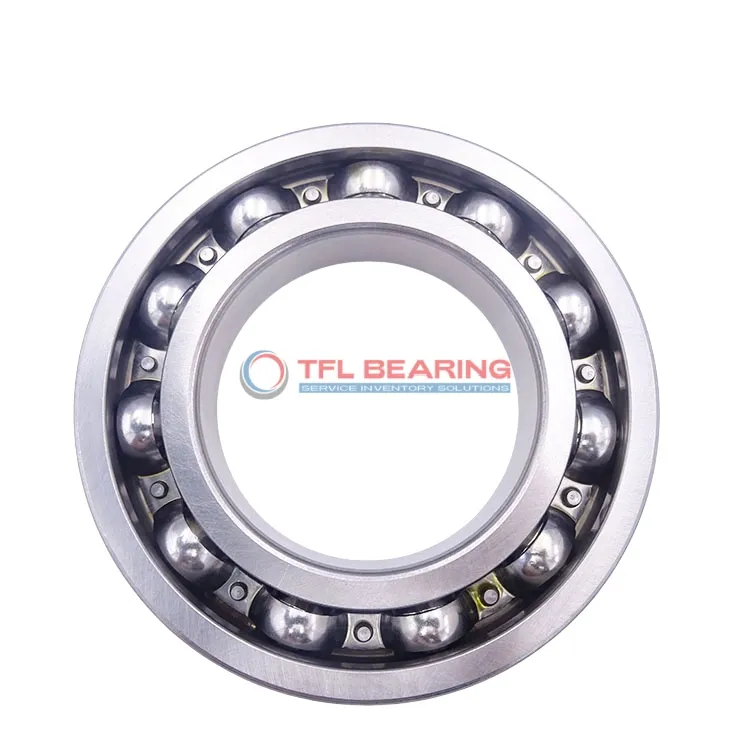

Single Row Deep Groove Ball Bearings 6222/HC5C4HS1VK1761

Single Row Deep Groove Ball Bearings 6222/HC5C4HS1VK1761

The 6222/HC5C4HS1VK1761 is a single-row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 33946 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design allows for easy maintenance, while the silicon nitride balls reduce friction for better performance. The bearing works well in a wide temperature range from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a reliable choice for replacements. Ideal for industrial machinery or heavy-duty applications where radial loads are common.

Weighing 4450g, it’s sturdy and built to last. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6222/HC5C4HS1VK1761
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 4300 rpm
  • Weight 4450 g
  • price（$） 2430.693
Single Row Deep Groove Ball Bearings 6222/HC5C4HS1VK1761 dimension drawing
Download DWG Download PDF

Features

How Does 6222/HC5C4HS1VK1761 Bearing Handle High-Temperature Applications?

6222/HC5C4HS1VK1761 Bearing operates efficiently in temperatures ranging from -30°C to 200°C, making it suitable for demanding environments.
The chrome steel rings and silicon nitride balls enhance durability and thermal resistance.
With a dynamic radial load capacity of 33946 lbf, it ensures reliable performance under heavy loads.
Its open design allows for easy maintenance and lubrication, further extending its service life.

Why Choose 6222/HC5C4HS1VK1761 Bearing for Precision Tasks?

6222/HC5C4HS1VK1761 Bearing features a single-row deep groove design, providing precise radial load handling.
The ABEC 1 tolerance class ensures consistent performance in high-precision applications.
Silicon nitride balls reduce friction and wear, contributing to smoother operation.
Its C4 radial clearance offers flexibility in various operating conditions.

Engineered for Efficiency: 6222/HC5C4HS1VK1761 Bearing

6222/HC5C4HS1VK1761 Bearing is designed with chrome steel components for enhanced strength and longevity.
The open seal type allows for easy inspection and maintenance, reducing downtime.
With a maximum speed of 4,300 rpm, it balances speed and durability effectively.
Its lightweight design at 4450 g ensures easy handling without compromising performance.

Chrome Steel vs Silicon Nitride: Strengths of 6222/HC5C4HS1VK1761 Bearing

6222/HC5C4HS1VK1761 Bearing combines chrome steel rings with silicon nitride balls for optimal performance.
This material mix provides excellent wear resistance and thermal stability.
The bearing’s static radial load capacity of 26527 lbf ensures reliability in heavy-duty applications.
Its compliance with RoHS and REACH standards makes it an environmentally friendly choice.

Application

Industrial Uses of 6222/HC5C4HS1VK1761 Bearing
This bearing is commonly used in heavy machinery like pumps and compressors, where its radial load capacity ensures reliable performance. The chrome steel rings and silicon nitride balls provide durability in demanding conditions.

Where Is 6222/HC5C4HS1VK1761 Bearing Used?
You’ll find it in automotive applications such as electric motors and transmissions, thanks to its high-speed capability and temperature resistance. The open design allows for easy lubrication and maintenance.

Built for Heavy-Duty Use: 6222/HC5C4HS1VK1761 Bearing
It’s a solid choice for industrial fans and blowers, where the C4 clearance helps manage thermal expansion. The metric sizing makes it compatible with a wide range of equipment.

Automotive vs Aerospace: Applications of 6222/HC5C4HS1VK1761 Bearing
In automotive systems, it handles radial loads in wheel hubs and gearboxes, while in aerospace, its temperature range suits auxiliary power units. The silicon nitride balls reduce friction for smoother operation.

Perfect Fit for Automation: 6222/HC5C4HS1VK1761 Bearing
This bearing works well in robotic arms and conveyor systems, where precision and load capacity are key. The chrome steel cage adds strength for long-term use in repetitive motions.
