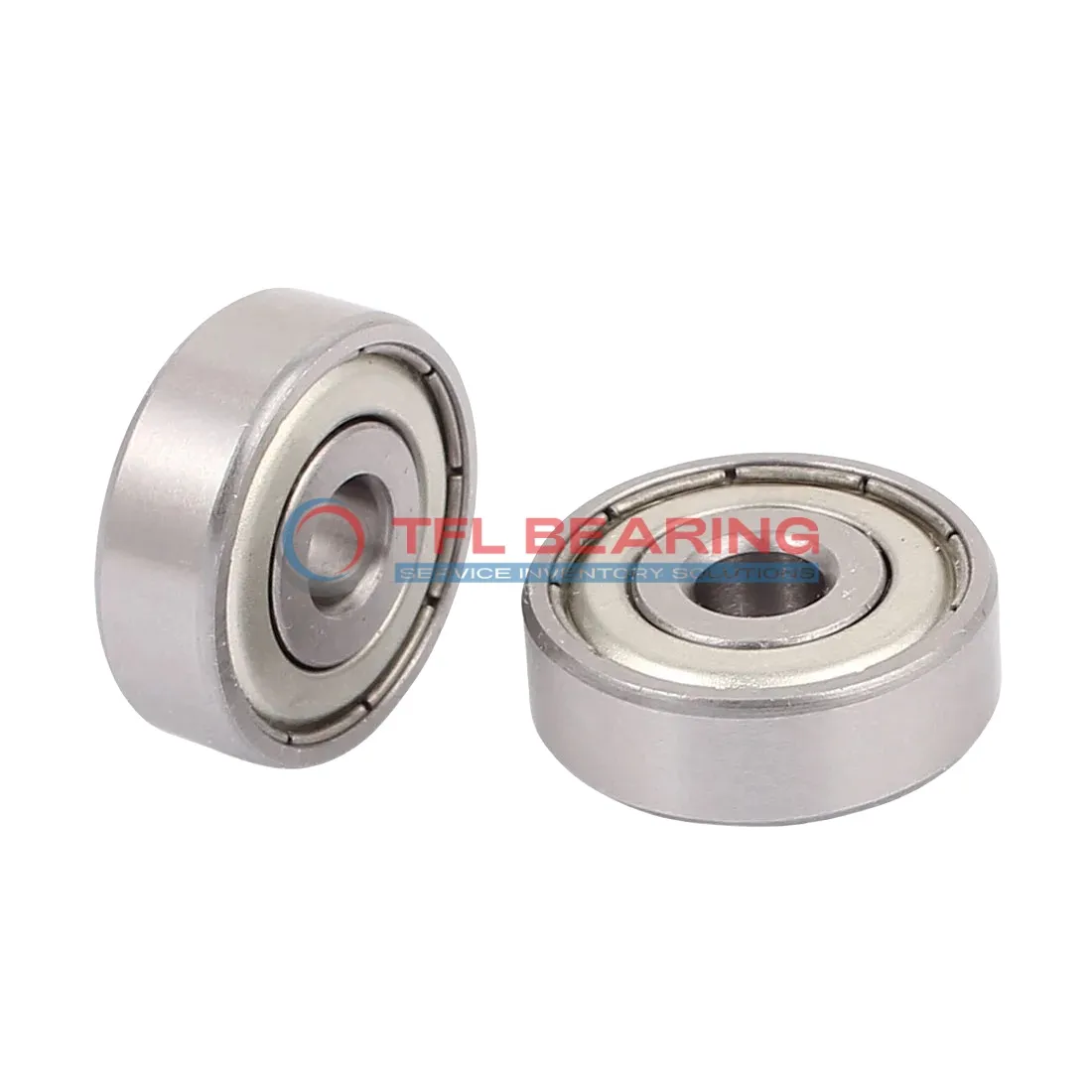

Single Row Deep Groove Ball Bearings 6220-Z/C4S1

The 6220-Z/C4S1 is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 27427 lbf and operates smoothly at speeds up to 3600 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage ensures reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 3120g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6220-Z/C4S1
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 100 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 180 mm
Outer Dia Tolerance -0.025mm to 0
Width 34 mm
Width Tolerance -0.200mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 200 °C
Dynamic Radial Load 27427 lbf
Static Radial Load 2093 lbf
Max Speed 3600 rpm
Weight 3120 g
price（$） 77.823

Single Row Deep Groove Ball Bearings 6220-Z/C4S1 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6220-Z/C4S1 Bearing

6220-Z/C4S1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 27427 lbf, ensuring reliable performance in various applications.

The shielded design of 6220-Z/C4S1 Bearing protects against contaminants, extending its service life.
With a maximum speed of 3,600 rpm, it balances durability and efficiency.

6220-Z/C4S1 Bearing operates in temperatures from -30°C to 200°C, making it suitable for diverse environments.
Its chrome steel cage maintains ball alignment, reducing wear and improving longevity.

The ABEC 1 tolerance class ensures consistent performance for standard precision applications.
6220-Z/C4S1 Bearing’s C4 radial clearance provides optimal operation under varying thermal conditions.

Application

Industrial Uses of 6220-Z/C4S1 Bearing
This shielded deep groove bearing is commonly used in industrial fans and pumps, where its C4 clearance helps manage thermal expansion. The chrome steel construction ensures durability in continuous operation environments.

Where Is 6220-Z/C4S1 Bearing Used?
You’ll often find 6220-Z/C4S1 Bearing in conveyor systems, supporting radial loads with reliable performance. Its ABEC 1 tolerance makes it suitable for general machinery applications.

Built for Heavy-Duty Use: 6220-Z/C4S1 Bearing
With a 100mm bore, this bearing handles substantial radial loads in agricultural equipment like harvesters. The wide temperature range (-30° to 200°C) allows use in varying climates.

Automotive vs Industrial: Applications of 6220-Z/C4S1 Bearing
In automotive alternators, 6220-Z/C4S1 Bearing provides smooth rotation, while its industrial version excels in food processing machinery. The shielded design protects against contaminants in both environments.

Perfect Fit for Automation: 6220-Z/C4S1 Bearing
This bearing works well in packaging machinery, where consistent speed is crucial. The 34mm width offers stability for rotating components in automated production lines.
