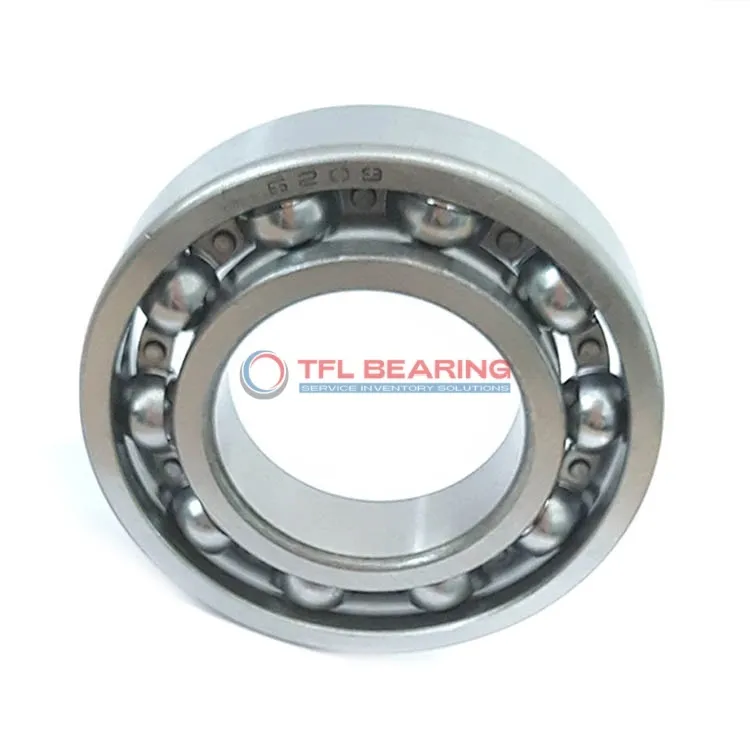

Single Row Deep Groove Ball Bearings 6204/MT47

The 6204/MT47 is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2878 lbf and can spin at speeds up to 15,000 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for applications like electric motors or small machinery where radial loads are common.

Weighing just 106g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6204/MT47
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 20 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 47 mm
Outer Dia Tolerance -0.011mm to 0
Width 14 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2878 lbf
Static Radial Load 1495 lbf
Max Speed 15000 rpm
Weight 106 g

Single Row Deep Groove Ball Bearings 6204/MT47 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6204/MT47 Bearing

6204/MT47 Bearing is crafted with chrome steel rings and balls, ensuring durability and resistance to wear.
Its single-row deep groove design supports radial loads up to 2878 lbf, making it suitable for various applications.

The open seal type allows for easy lubrication, while the ABEC 1 tolerance ensures consistent performance.
With a maximum speed of 15,000 rpm, it balances efficiency and reliability.

6204/MT47 Bearing operates in temperatures from -30°C to 120°C, adapting to different working conditions.
Its lightweight design at 106 g makes it easy to handle and install.

Application

Common Applications of 6204/MT47 Bearing
In industrial machinery, 6204/MT47 Bearing is widely used in electric motors and pumps due to its reliable radial load capacity. The open design ensures easy lubrication, extending service life in demanding conditions.

Where Is 6204/MT47 Bearing Used?
You’ll often find 6204/MT47 Bearing in automotive applications like alternators and wheel hubs, where its balanced performance handles both speed and load. Its metric sizing makes it a versatile fit for various vehicle designs.

Perfect Fit for Automation: 6204/MT47 Bearing
6204/MT47 Bearing works well in robotic arms and conveyor systems, thanks to its smooth operation and durability. The chrome steel construction ensures consistent performance even in high-use environments.

Light-Duty vs Heavy-Duty: Best Uses for 6204/MT47 Bearing
For light-duty tasks, 6204/MT47 Bearing excels in household appliances like washing machines. In heavier industrial settings, it supports machinery requiring steady radial load management.
