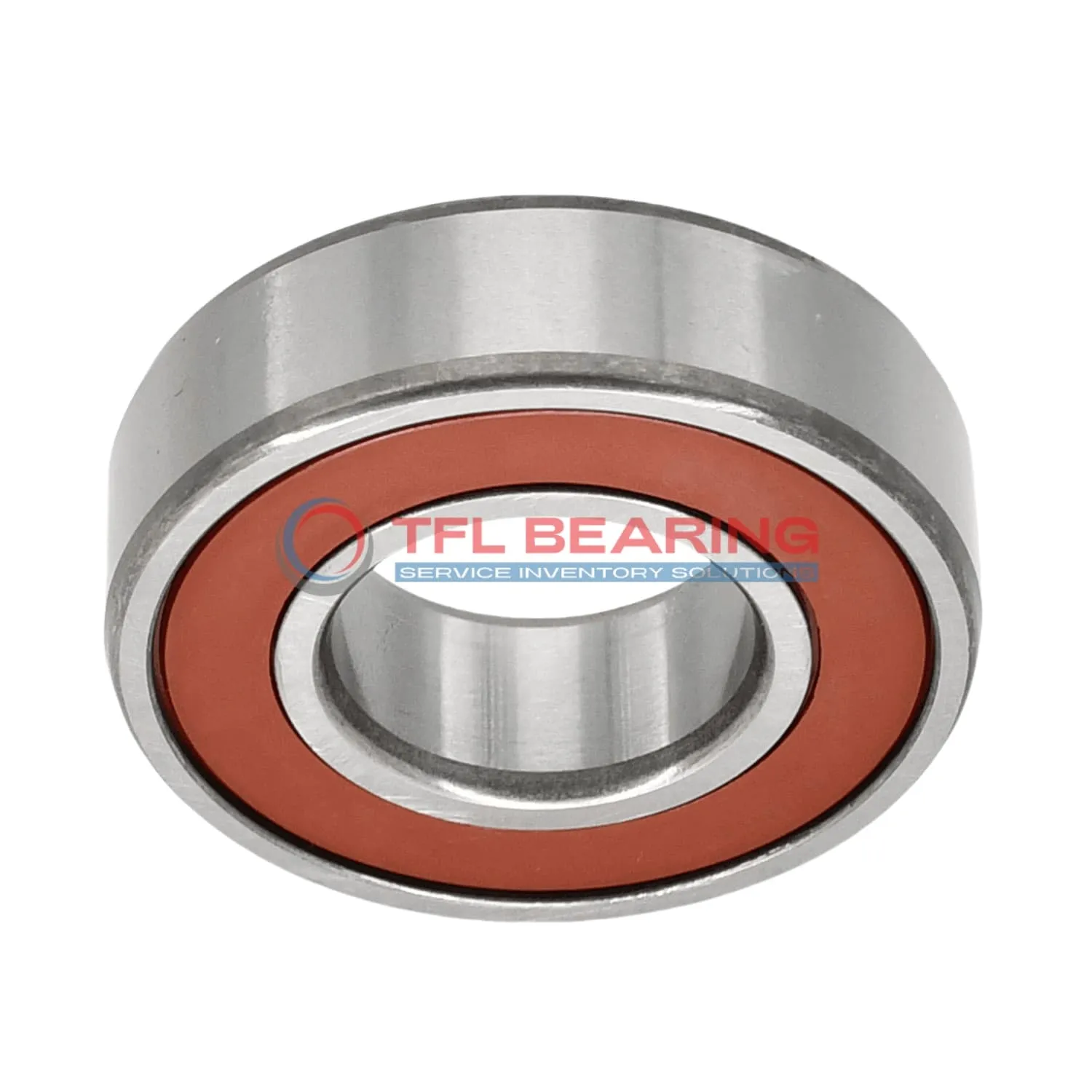

Single Row Deep Groove Ball Bearings 6204-2RS2/WT

The 6204-2RS2/WT is a sealed single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The chrome steel cage adds durability, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for many industrial settings. It’s interchangeable with SKF models, offering a cost-effective replacement option.

Weighing just 106g, it’s lightweight yet robust, ideal for applications like electric motors or small machinery where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6204-2RS2/WT
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 20 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 47 mm
Outer Dia Tolerance -0.011mm to 0
Width 14 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2878 lbf
Static Radial Load 1495 lbf
Max Speed 15000 rpm
Weight 106 g
price（$） 2.313

Single Row Deep Groove Ball Bearings 6204-2RS2/WT dimension drawing

Download DWG Download PDF

Features

Performance Features of 6204-2RS2/WT Bearing

6204-2RS2/WT Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 2878 lbf, making it suitable for various applications.

The sealed design of 6204-2RS2/WT Bearing protects against dust and moisture, enhancing durability.
It operates smoothly within a temperature range of -30°C to 120°C, ensuring reliable performance.

With a maximum speed of 15,000 rpm, 6204-2RS2/WT Bearing balances efficiency and longevity.
The chrome steel cage maintains ball alignment, reducing wear and extending service life.

Application

Where Is 6204-2RS2/WT Bearing Used?
6204-2RS2/WT Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6204-2RS2/WT Bearing fits well in components such as alternators and fans, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6204-2RS2/WT Bearing works efficiently in washing machines and power tools, thanks to its smooth operation and low maintenance needs. The sealed design also prolongs its lifespan in dusty conditions.

Automation systems benefit from 6204-2RS2/WT Bearing’s consistent performance in robotic arms and conveyor belts. Its high-speed capability and radial load handling make it a dependable option.
