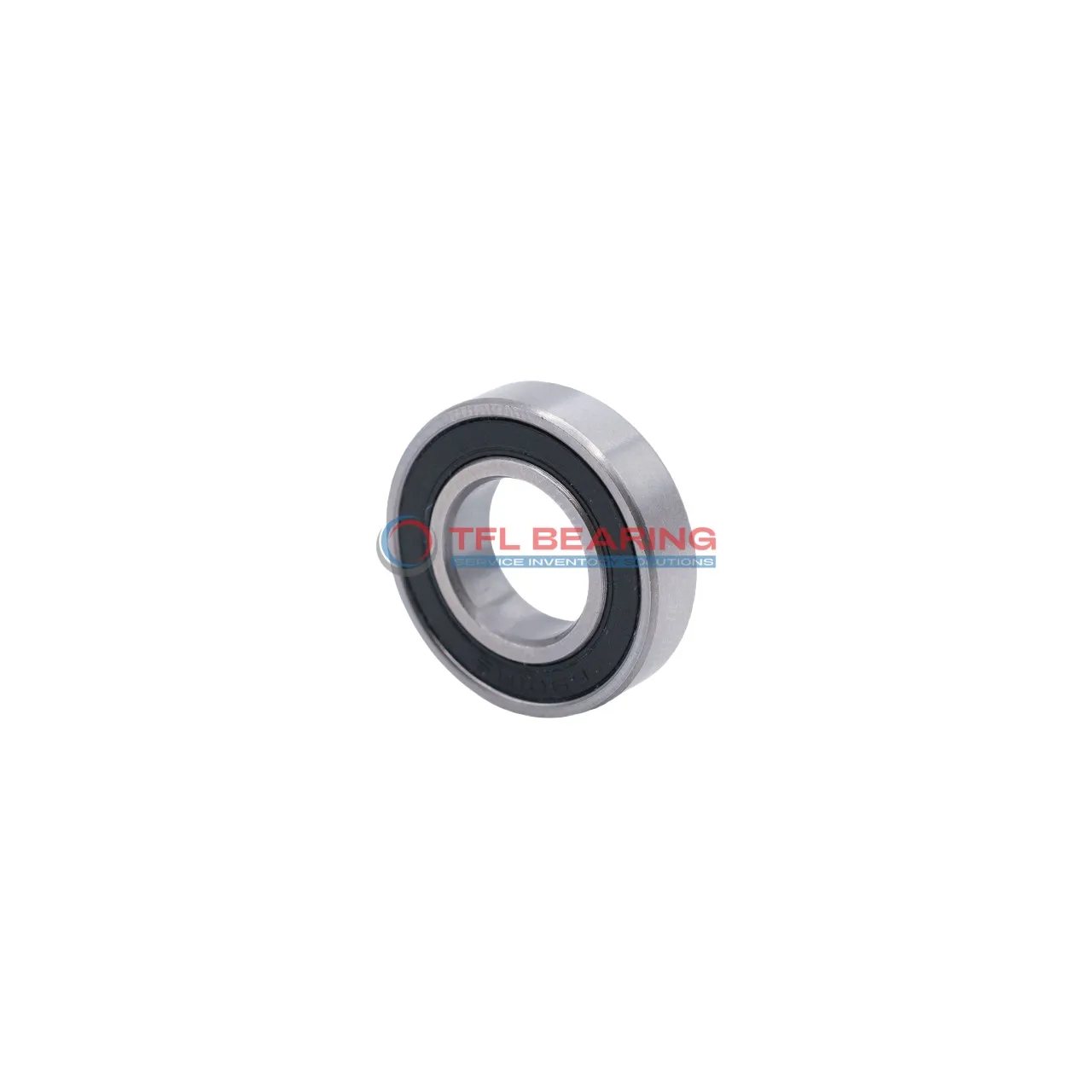

Single Row Deep Groove Ball Bearings 6002-2RSH/VA947

The 6002-2RSH/VA947 is a compact single-row deep groove ball bearing, measuring 15mm by 32mm by 9mm. Made from chrome steel with stainless steel cage, it’s built to handle radial loads up to 1315 lbf.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing spins smoothly at speeds up to 14,000 RPM, suitable for various applications.

With a temperature range of -30°C to 120°C, it performs well in different environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for small machinery or electric motors where space is limited. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use. Weighing just 0.03kg, it’s lightweight yet durable.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6002-2RSH/VA947
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 15 mm
Bore Dia Tolerance -0.007mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.009mm to 0
Width 9 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Lubrication Grease
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 1315 lbf
Static Radial Load 641 lbf
Max Speed 14000 rpm
Weight 0.03 kg

Single Row Deep Groove Ball Bearings 6002-2RSH/VA947 dimension drawing

Download DWG Download PDF

Features

Why Choose 6002-2RSH/VA947 Bearing for Precision Tasks?

6002-2RSH/VA947 Bearing features a sealed design, protecting against contaminants and ensuring smooth radial load handling.
Its chrome steel construction offers durability, while the stainless steel cage maintains ball alignment for consistent performance.

With a dynamic radial load capacity of 1315 lbf, it handles demanding applications with ease.
The bearing operates efficiently at speeds up to 14,000 rpm, making it suitable for high-speed machinery.

6002-2RSH/VA947 Bearing works in temperatures from -30° to 120°C, adapting to various environments.
Its P6 tolerance class ensures precision, ideal for tasks requiring accurate movement.

The grease lubrication reduces maintenance needs, saving time and costs.
Its compact size (15 mm×32 mm×9 mm) makes it versatile for space-constrained applications.

Application

Where Is 6002-2RSH/VA947 Bearing Used?
6002-2RSH/VA947 Bearing is commonly used in small electric motors, such as those found in household appliances like fans and power tools. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday devices.

In industrial settings, 6002-2RSH/VA947 Bearing supports light machinery, including conveyor rollers and small pumps. The chrome steel construction provides durability, while the grease lubrication reduces maintenance needs.

For automation systems, 6002-2RSH/VA947 Bearing fits well in robotic arms and 3D printers, where smooth radial movement is essential. Its compact size and reliable performance make it a go-to choice for precision applications.

In automotive applications, 6002-2RSH/VA947 Bearing can be found in components like alternators and small gearboxes. The P6 tolerance class ensures consistent performance, even under varying loads and speeds.
