Single Row Deep Groove Ball Bearings 413MF

Single Row Deep Groove Ball Bearings 413MF

The 413MF is a single-row deep groove ball bearing with a 2.56″ bore and 6.3″ outer diameter, crafted from sturdy chrome steel for reliable performance. Its open design allows for easy lubrication and maintenance, while the chrome steel cage ensures durability.

This bearing is suitable for radial loads and operates smoothly in temperatures ranging from -30°C to 120°C. It meets ABEC 1 and ISO P0 tolerance standards, making it a dependable choice for various applications.

Interchangeable with SKF bearings, the 413MF is ideal for machinery requiring consistent radial load support. Its compact size (2.56″×6.3″×1.46″) makes it versatile for use in industrial equipment or automotive systems.

Compliant with RoHS and REACH standards, this bearing is both safe and environmentally friendly. Its robust construction ensures long service life even under demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 413MF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 2.56"
  • Outer Dia 6.3"
  • Outer Dia Tolerance +0.001" to 0
  • Width 1.46"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • price（$） 171.549

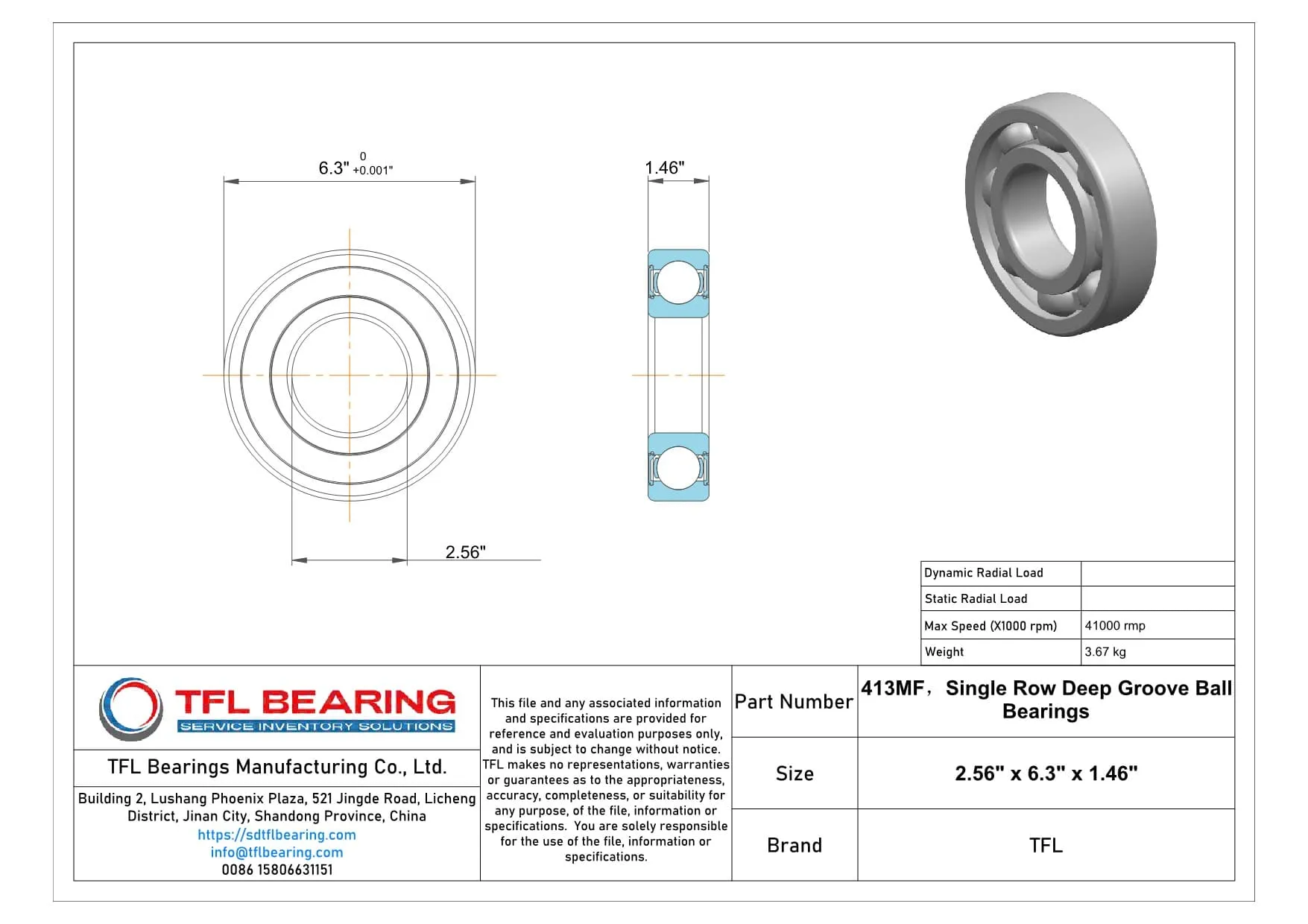

Single Row Deep Groove Ball Bearings 413MF dimension drawing
Download DWG Download PDF

Features

Performance Features of 413MF Bearing

413MF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its single row deep groove design ensures smooth operation and efficient load distribution.
The open seal type allows for easy maintenance and inspection, enhancing usability.
With a temperature range of -30° to 120°C, it performs reliably in various conditions.

Application

Industrial Uses of 413MF Bearing
413MF Bearing is commonly used in conveyor systems and industrial fans, where its single-row design handles radial loads efficiently. The open seal type simplifies maintenance, making it suitable for dusty environments.

In automotive applications, 413MF Bearing fits well in wheel hubs and electric motors, thanks to its durable chrome steel construction. Its inch sizing ensures compatibility with many American-made vehicles.

For automation equipment like robotic arms, 413MF Bearing provides smooth rotation and reliable performance. The ABEC 1 tolerance class offers a good balance between precision and cost-effectiveness.

In household appliances such as washing machines, 413MF Bearing ensures quiet operation and long service life. Its wide temperature range makes it adaptable to various climates and usage conditions.
