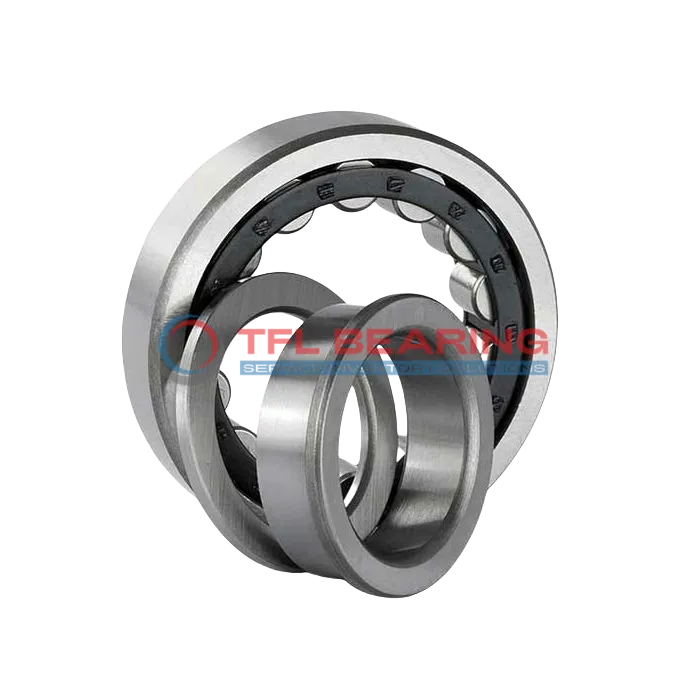

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2306 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2306 ECP

The NUP 2306 ECP is a single row cylindrical roller bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 18675 lbf and spins smoothly at speeds up to 12000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs reliably in temperatures from -30°C to 110°C.

This model features an inner ring for secure mounting and is interchangeable with SKF bearings. Ideal for applications like gearboxes or pumps where both radial and axial loads are present.

Weighing 0.54kg, it’s a sturdy yet manageable choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 2306 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 45 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 18675 lbf
  • Static Radial Load 16875 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.54 kg
  • Shoulder Dia Of Outer Ring 58.48 mm
  • Raceway Diameter Of Inner Ring 40.5 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 1.1 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 2306 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NUP 2306 ECP Bearing

NUP 2306 ECP Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 18675 lbf, ensuring reliable performance in demanding conditions.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 12,000 rpm, it balances durability and efficiency.

NUP 2306 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NUP 2306 ECP Bearing
NUP 2306 ECP Bearing is commonly used in machine tools, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in high-speed operations.

Where Is NUP 2306 ECP Bearing Used?
You’ll find NUP 2306 ECP Bearing in conveyor systems, supporting smooth material handling with its robust design. Its open seal type allows for easy lubrication, making maintenance straightforward.

Built for Heavy-Duty Use: NUP 2306 ECP Bearing
NUP 2306 ECP Bearing excels in gearboxes, providing reliable performance under combined loads. The PA66 cage material reduces friction, enhancing its lifespan in demanding conditions.

Automotive vs Industrial: Applications of NUP 2306 ECP Bearing
In automotive applications, NUP 2306 ECP Bearing works well in transmissions, while in industrial settings, it supports heavy machinery. Its metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: NUP 2306 ECP Bearing
NUP 2306 ECP Bearing is ideal for robotic arms, offering precision and stability. The high-speed capability makes it suitable for automated production lines.
