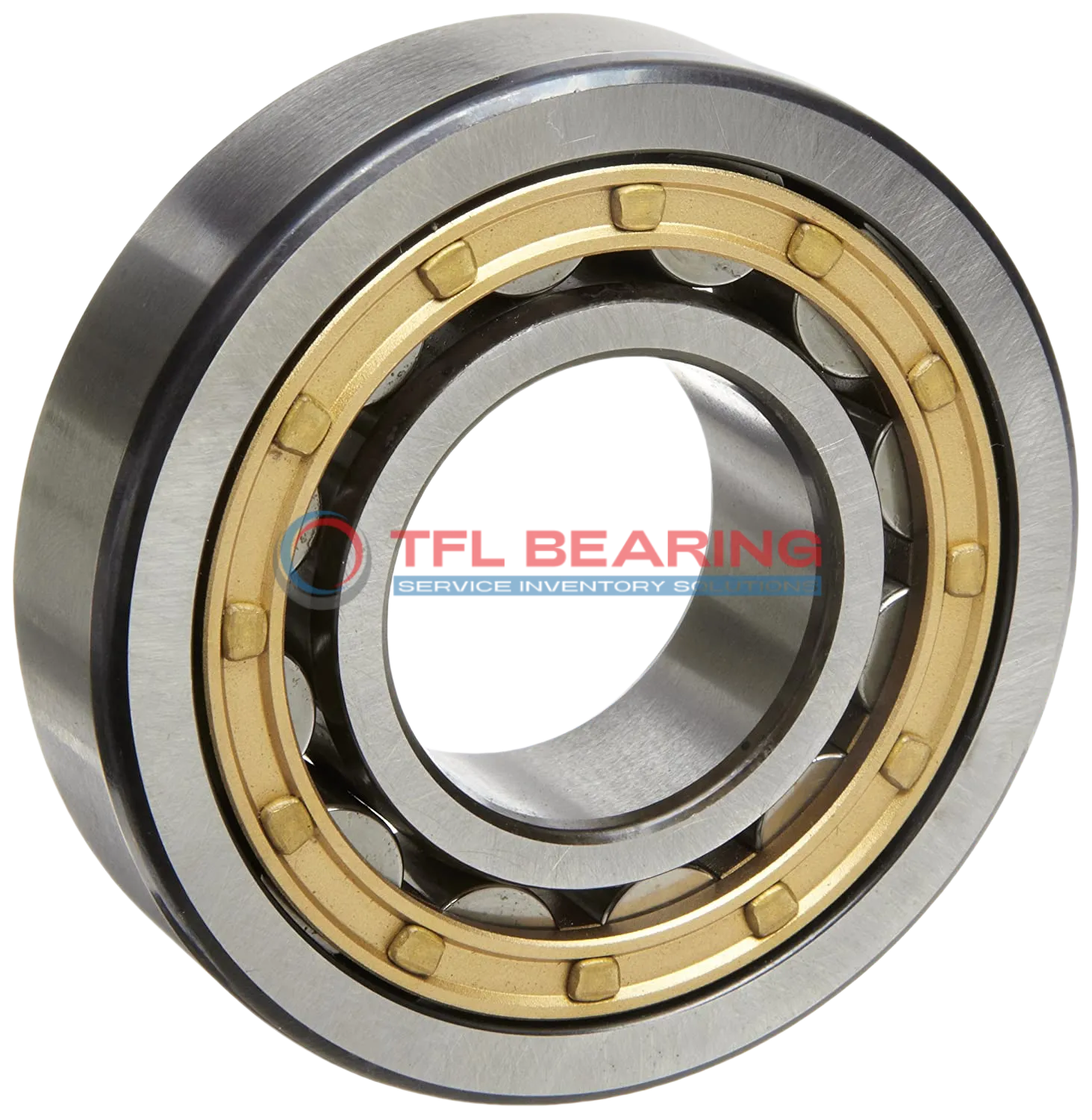

Single Row Cylindrical Roller Bearings With Inner Ring NJ 310 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NJ 310 ECM

The NJ 310 ECM is a single-row cylindrical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 28575 lbf and reaches speeds of 8000 RPM.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

With a permissible axial displacement of 1.9mm, it offers flexibility in mounting. Ideal for industrial machinery or gearboxes where radial and axial loads are present.

Weighing 1.34kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 310 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 71.2 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 1.9 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 28575 lbf
  • Static Radial Load 25200 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.34 kg
  • Shoulder Dia Of Outer Ring 91.4 mm
  • Raceway Diameter Of Inner Ring 65 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 310 ECM dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 310 ECM Bearing

NJ 310 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 28,575 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 8,000 rpm, it balances durability and efficiency in demanding conditions.

NJ 310 ECM Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NJ 310 ECM Bearing
NJ 310 ECM Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its cylindrical roller design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even at high speeds.

Where Is NJ 310 ECM Bearing Used?
You’ll often find NJ 310 ECM Bearing in automotive transmissions, where its robust construction supports combined loads. The chrome steel rollers provide durability, making it a reliable choice for long-term use.

Built for Heavy-Duty Use: NJ 310 ECM Bearing
NJ 310 ECM Bearing excels in applications like electric motors and pumps, thanks to its high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of NJ 310 ECM Bearing
In automotive settings, NJ 310 ECM Bearing is ideal for wheel hubs and drivetrains, while in aerospace, it’s used in auxiliary systems. Its metric sizing ensures compatibility across various equipment.

Perfect Fit for Automation: NJ 310 ECM Bearing
NJ 310 ECM Bearing is a great match for robotic arms and automated production lines, where precision and reliability are key. The grease or oil lubrication options adapt to different operating conditions.
