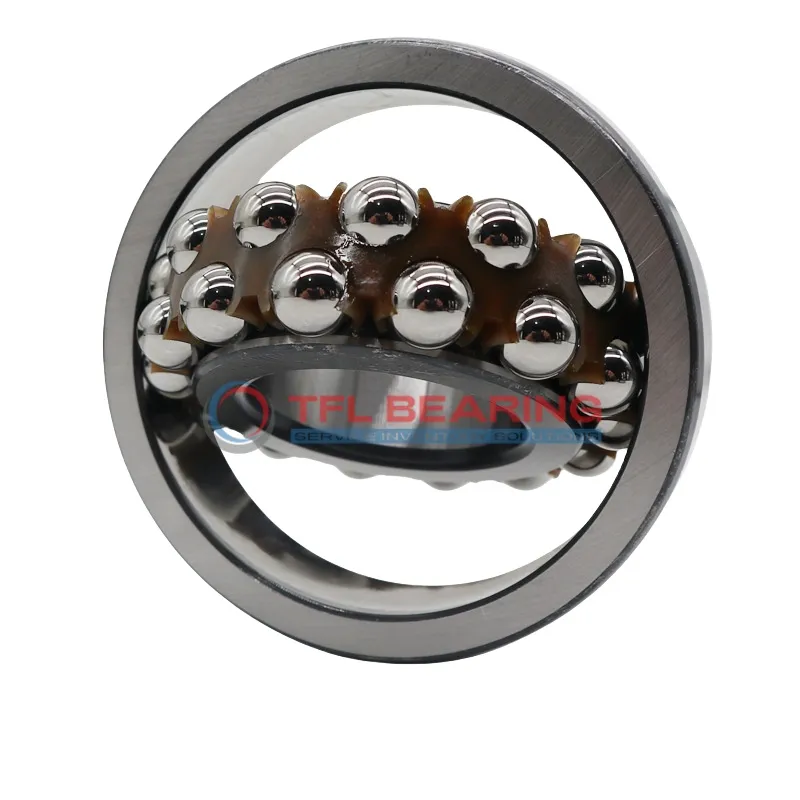

Self Aligning Ball Bearings 2209-TVH-C3

The 2209-TVH-C3 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and runs smoothly at speeds reaching 5300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. It’s suited for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.53kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 2209-TVH-C3
Brand TFL & OEM
Interchangeable SKF
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 85 mm
Outer Dia Tolerance -0.015mm to 0
Width 23 mm
Width Tolerance -0.12mm to 0
External Diameter On Inner Ring 52.9 mm
Internal Diameter On Outer Ring 75.25 mm
Chamfer Dimension 1.1 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Cylindrical
For Load Direction Radial
Construction Double Row
Seal Type Sealed
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
Dynamic Radial Load 5152 lbf
Static Radial Load 1755 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance C3
RoHS Compliant
REACH Compliant
Max Speed 5300 rpm
Weight 0.53 kg
Price（$） 43.85

Self Aligning Ball Bearings 2209-TVH-C3 dimension drawing

Download DWG Download PDF

Features

Why Choose 2209-TVH-C3 Bearing for Precision Tasks?

2209-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5152 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide smooth operation and reduce maintenance needs.
With a maximum speed of 5,300 rpm, it balances performance and durability.

2209-TVH-C3 Bearing operates efficiently in temperatures from -30° to 110°C.
Its C3 radial clearance ensures reliable performance under varying conditions.

Application

Industrial Uses of 2209-TVH-C3 Bearing
2209-TVH-C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance even under heavy radial loads.

In automotive applications, 2209-TVH-C3 Bearing fits well in wheel hubs and transmissions, thanks to its sealed construction that keeps contaminants out. The C3 radial clearance allows for thermal expansion during high-speed operation.

For automation equipment, 2209-TVH-C3 Bearing’s nylon cage reduces friction, making it ideal for robotic arms. Its chrome steel rings provide durability in repetitive motion scenarios.

In household appliances like washing machines, 2209-TVH-C3 Bearing offers quiet operation due to its lubricated design. The metric sizing ensures compatibility with various European models.
