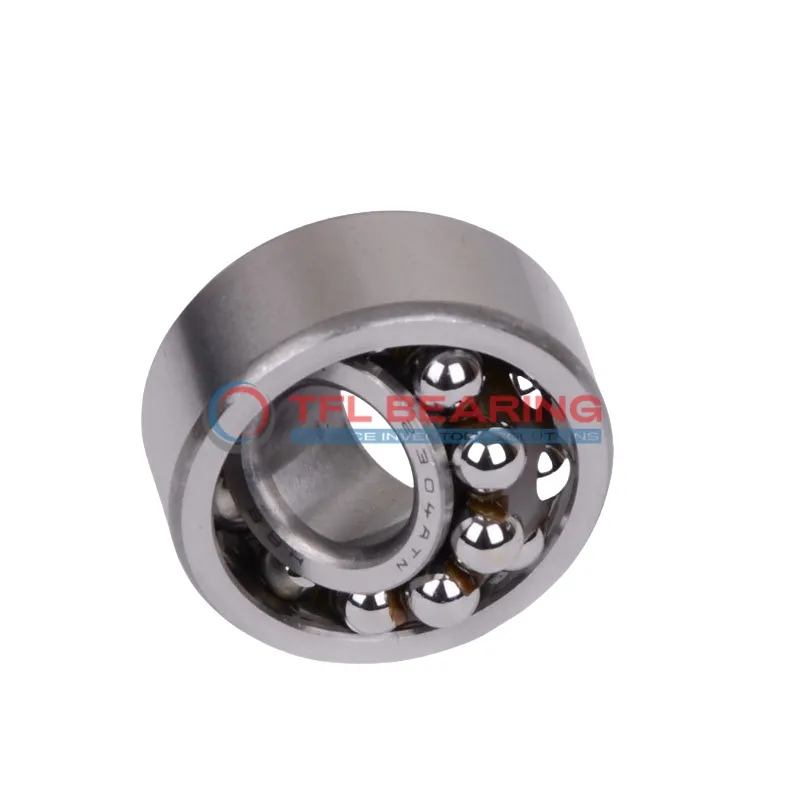

Self Aligning Ball Bearings 1210-TVH-C3

The 1210-TVH-C3 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5962 lbf and operates smoothly at speeds reaching 10,000 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 0.53kg, it’s a robust yet manageable choice for industrial applications. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 1210-TVH-C3
Brand TFL & OEM
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 20 mm
Width Tolerance -0.12mm to 0
External Diameter On Inner Ring 61.7 mm
Internal Diameter On Outer Ring 78.1 mm
Chamfer Dimension 1.1 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Cylindrical
For Load Direction Radial
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
Dynamic Radial Load 5962 lbf
Static Radial Load 2059 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance C3
RoHS Compliant
REACH Compliant
Max Speed 10000 rpm
Weight 0.53 kg
Price（$） 37.65

Self Aligning Ball Bearings 1210-TVH-C3 dimension drawing

Download DWG Download PDF

Features

Why Choose 1210-TVH-C3 Bearing for Precision Tasks?

1210-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 5962 lbf, making it suitable for demanding applications.

The nylon cage in 1210-TVH-C3 Bearing helps reduce friction and noise during operation.
This design also allows for smoother rotation, even at high speeds up to 10,000 rpm.

With a C3 radial clearance, 1210-TVH-C3 Bearing accommodates slight misalignments without compromising performance.
Its open seal type simplifies maintenance while ensuring reliable operation.

1210-TVH-C3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel construction provides durability and resistance to wear over time.

Application

Industrial Uses of 1210-TVH-C3 Bearing
1210-TVH-C3 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load handling in demanding environments.

In automotive applications, 1210-TVH-C3 Bearing supports components such as gearboxes and electric motors, providing smooth operation under varying loads. Its nylon cage reduces friction, enhancing efficiency in high-speed scenarios.

For automation equipment, 1210-TVH-C3 Bearing is a solid choice for robotic arms and assembly lines, thanks to its consistent performance and easy maintenance. The C3 radial clearance allows for thermal expansion in dynamic setups.

Where Is 1210-TVH-C3 Bearing Used?
You’ll often find 1210-TVH-C3 Bearing in household appliances like washing machines and fans, where its durability and quiet operation are valued. The chrome steel construction ensures long-term reliability even with frequent use.

In medical devices, 1210-TVH-C3 Bearing is used in imaging equipment and lab instruments, where precision and low maintenance are key. The lubricated design helps maintain smooth performance over time.
