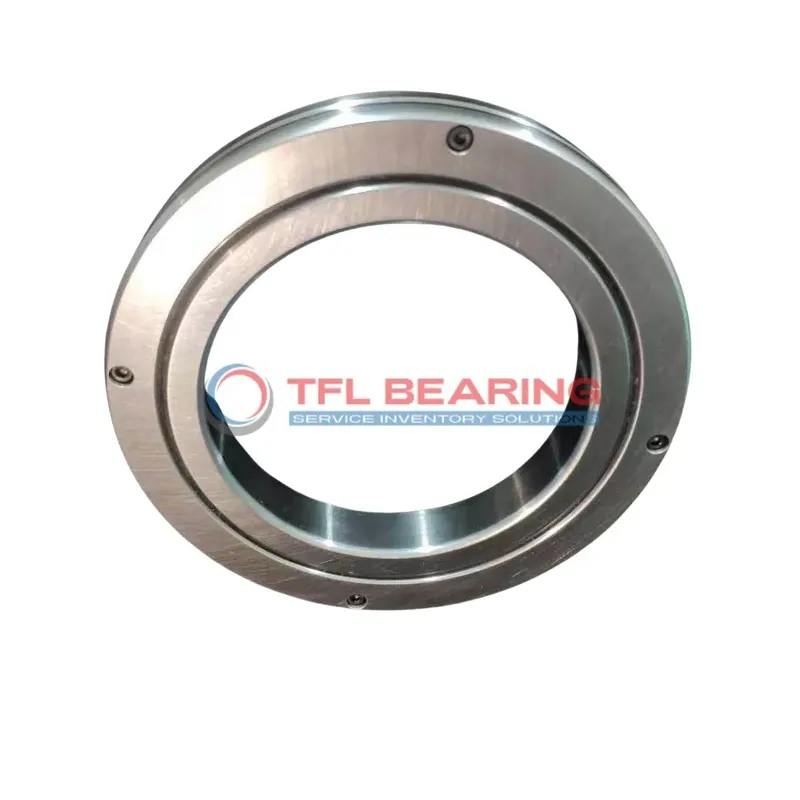

RB Crossed Roller Bearings RB14016

RB Crossed Roller Bearings RB14016

The RB14016 is a crossed roller bearing with a compact design, measuring 140mm in bore diameter and 175mm in outer diameter, with a width of just 16mm. Made from sturdy steel, it handles combined loads efficiently, with a basic load rating of 25.9 kN.

Its single-row construction and open design make it easy to lubricate and maintain, while the press-fit shaft mount ensures a secure installation. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

This model is available in ABEC5 precision, with options for higher ABEC7/9 grades if needed. Ideal for applications requiring precise rotation, such as robotics or medical equipment.

Weighing 1kg, it’s a robust yet lightweight choice for demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB14016
  • Brand TFL
  • size 140 mm x 175 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 140 mm
  • Outer Dia 175 mm
  • Width 16 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 147 mm
  • Shoulder Height Dh(min) 162 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 25.9 kN
  • Basic Load Rating Co 50.1 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 Kg

Features

Performance Features of RB14016 Bearing

RB14016 Bearing is designed for combined load applications, offering a balanced performance with its crossed roller design.
The steel rings and rollers provide a basic load rating of 25.9 kN, ensuring reliable operation under stress.

Its compact width of 16 mm makes it suitable for space-constrained installations.
The press-fit shaft mount type simplifies assembly, reducing installation time.

RB14016 Bearing operates efficiently within a temperature range of 0 to 230°F.
With an ABEC5 rating, it delivers precision for high-speed applications.

The open seal design allows for easy lubrication, maintaining smooth performance.
Its robust construction ensures durability, even in demanding industrial environments.

Application

Key Fields for RB14016 Bearing
RB14016 Bearing is widely used in industrial automation, particularly in robotic arms and precision turntables where its crossed roller design ensures smooth rotation. The press-fit mounting makes installation straightforward in tight spaces.

In medical imaging devices like CT scanners, RB14016 Bearing provides stable support for rotating components due to its high load capacity. The steel construction offers durability in demanding healthcare environments.

For CNC machinery, RB14016 Bearing handles combined loads efficiently, making it suitable for spindle applications. Its ABEC5 rating ensures consistent performance in high-precision tasks.

In aerospace applications, RB14016 Bearing’s temperature resistance makes it reliable for navigation systems. The open design allows for easy lubrication maintenance during service checks.

Consumer electronics like 3D printers benefit from RB14016 Bearing’s compact size and precision. Its steel rollers ensure long-term reliability in frequent start-stop operations.
