Needle Roller Thrust Bearing Washers AS5070

Needle Roller Thrust Bearing Washers AS5070

The AS5070 is a needle roller thrust bearing washer with a 50mm bore and 70mm outer diameter, crafted from resilient spring steel. It’s just 1mm thick, making it a slim yet sturdy component for tight spaces.
Designed to handle high thrust loads, it operates smoothly in temperatures ranging from -30°C to 110°C. Its precise tolerances ensure a reliable fit in various assemblies.
The washer is interchangeable with INA models, offering flexibility for replacements or upgrades. Ideal for applications like automotive transmissions or industrial machinery where space and load capacity are key.
Weighing only 14g, it’s lightweight and RoHS compliant, meeting modern safety standards. A practical choice for engineers and maintenance teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AS5070
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 50 mm
  • Bore Dia Tolerance 0.05mm to 0.3mm
  • Outer Dia 70 mm
  • Outer Dia Tolerance -0.520mm to -0.06mm
  • Width 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 14 g

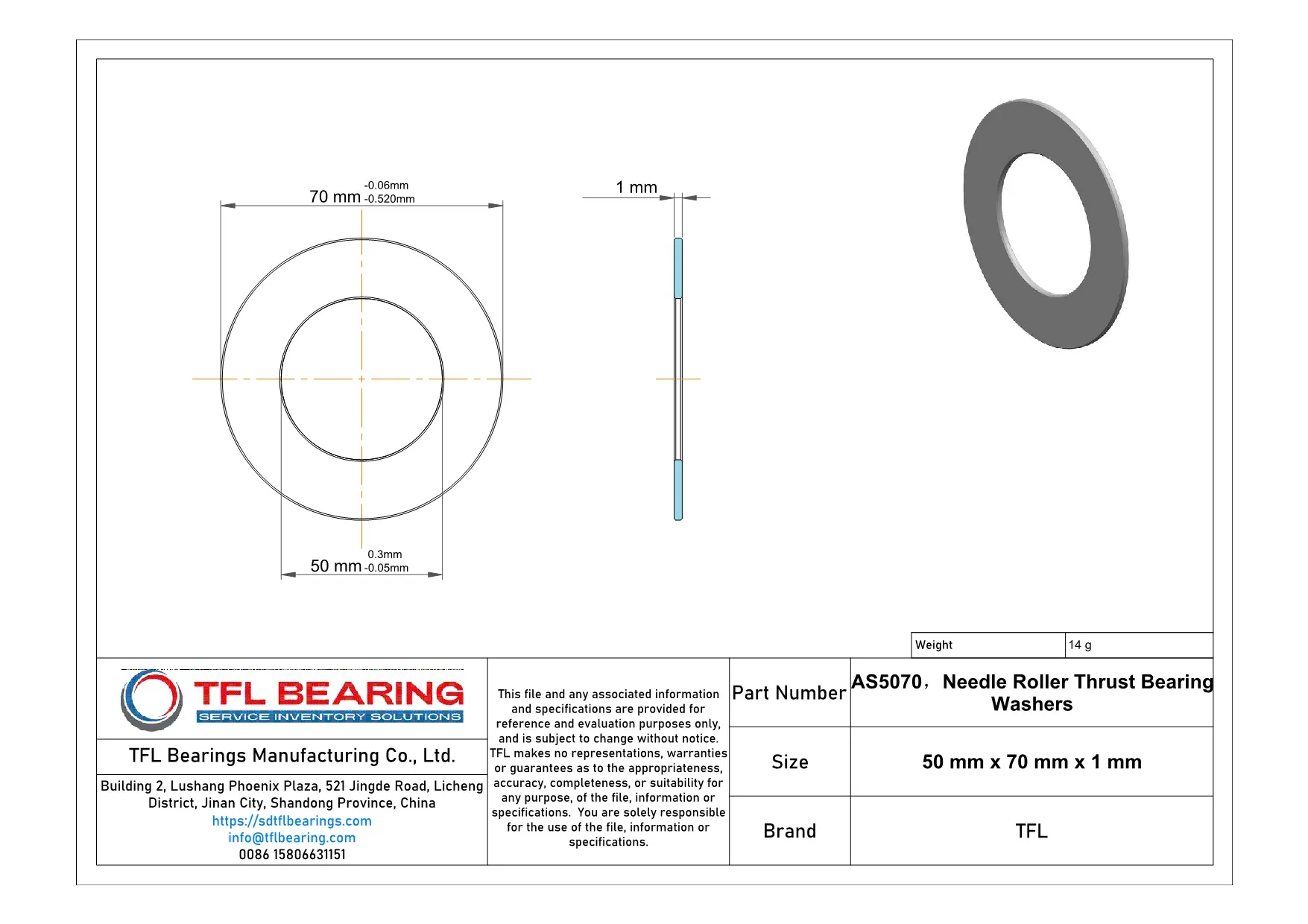

Needle Roller Thrust Bearing Washers AS5070 dimension drawing
Download DWG Download PDF

Features

How Does AS5070 Bearing Handle Heavy Loads?
AS5070 Bearing is crafted from spring steel, offering excellent strength and flexibility for high-load applications.
Its precise dimensions, with a bore diameter of 50 mm and outer diameter of 70 mm, ensure a perfect fit.
The needle roller design reduces friction, enhancing efficiency and durability.
With a temperature range of -30° to 110 °C, it performs reliably in various conditions.
AS5070 Bearing’s lightweight design, at just 14 g, makes it easy to handle without compromising performance.
Its compliance with RoHS standards ensures environmental safety and reliability.

Application

Industrial Uses of AS5070 Bearing
AS5070 Bearing is commonly used in industrial gearboxes, where its thin profile and high load capacity make it ideal for compact designs. The spring steel material ensures durability even in demanding environments.
Where Is AS5070 Bearing Used?
You’ll often find AS5070 Bearing in automotive transmissions, where it helps manage thrust loads efficiently. Its metric sizing makes it a versatile choice for various vehicle models.
Built for Heavy-Duty Use: AS5070 Bearing
AS5070 Bearing works well in construction equipment, such as hydraulic pumps, thanks to its robust spring steel construction. The narrow width allows for space-saving installations.
Medical vs Industrial: Where AS5070 Bearing Excels
While AS5070 Bearing isn’t typically used in medical devices, it shines in industrial settings like conveyor systems. Its high temperature tolerance ensures reliable performance under stress.
Perfect Fit for Automation: AS5070 Bearing
AS5070 Bearing is a great match for robotic arms, where precision and low friction are key. The needle roller design provides smooth movement in repetitive tasks.
