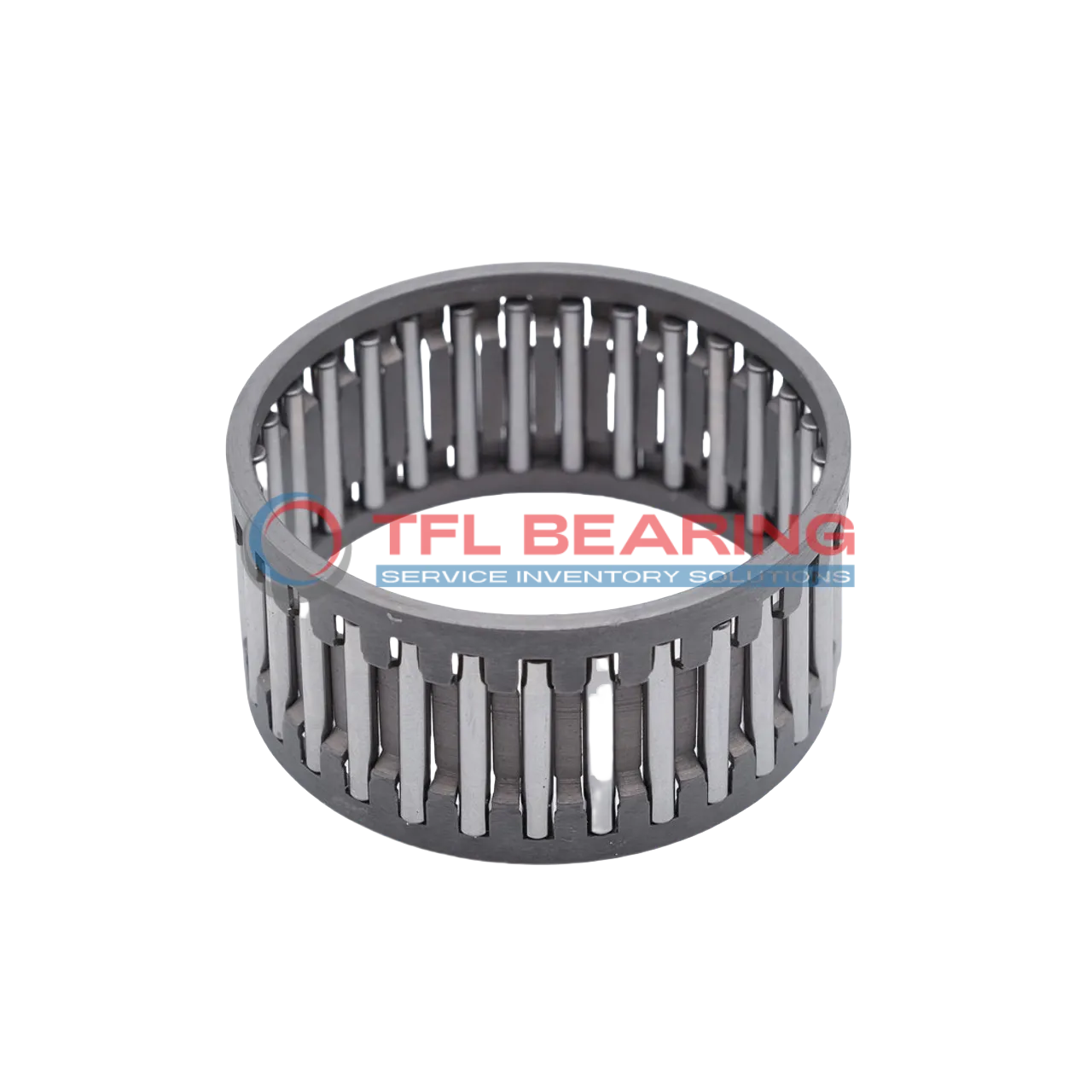

Needle Roller And Cage Assemblies C182420

Needle Roller And Cage Assemblies C182420

The C182420 is a needle roller and cage assembly with a 1.125-inch bore and 1.5-inch outer diameter, built from sturdy steel. It handles radial loads up to 11700 lbf and spins smoothly at speeds up to 15000 RPM.
Its single-row design with a steel cage ensures reliable performance under heavy loads. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive transmissions or industrial gearboxes where space is limited but high load capacity is needed.
Weighing just 74.1 grams, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number C182420
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Outer Dia 1.5"
  • Width 1.25"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series C Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 11700 lbf
  • Static Radial Load 17100 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 15000 rpm
  • Weight 74.1 g
Needle Roller And Cage Assemblies C182420 dimension drawing
Download DWG Download PDF

Features

How Does C182420 Bearing Handle High-Speed Applications?
C182420 Bearing features a steel cage and needles, designed to withstand high radial loads up to 11700 lbf.
Its robust construction ensures smooth operation even at speeds reaching 15,000 rpm.
The single-row design provides stability, making it suitable for precision tasks.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.
Why Choose C182420 Bearing for Precision Tasks?
C182420 Bearing’s steel needle rollers and cage offer excellent load distribution, enhancing precision.
It handles static radial loads up to 17100 lbf, ensuring durability in demanding applications.
The inch-sized dimensions (1.125″ bore, 1.5″ outer dia) make it versatile for different setups.
Its compliance with RoHS standards ensures environmental safety.
Engineered for Durability: C182420 Bearing
C182420 Bearing is built with high-quality steel components, providing long-lasting performance.
The needle roller design reduces friction, improving efficiency and reducing wear.
Its compact width of 1.25″ allows for easy integration into various machinery.
The bearing operates efficiently within a broad temperature range, ensuring reliability.

Application

Common Applications of C182420 Bearing
C182420 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive transmissions, C182420 Bearing provides smooth operation under high radial loads, enhancing performance and longevity. Its inch sizing makes it a convenient choice for North American vehicle models.
For automation systems, C182420 Bearing’s high-speed capability suits applications like robotic arms and conveyor belts. The single-row design offers reliable performance without compromising on efficiency.
In household appliances, such as power tools, C182420 Bearing’s lightweight and robust build contribute to quieter and more efficient operation. Its temperature range ensures stability during prolonged use.
