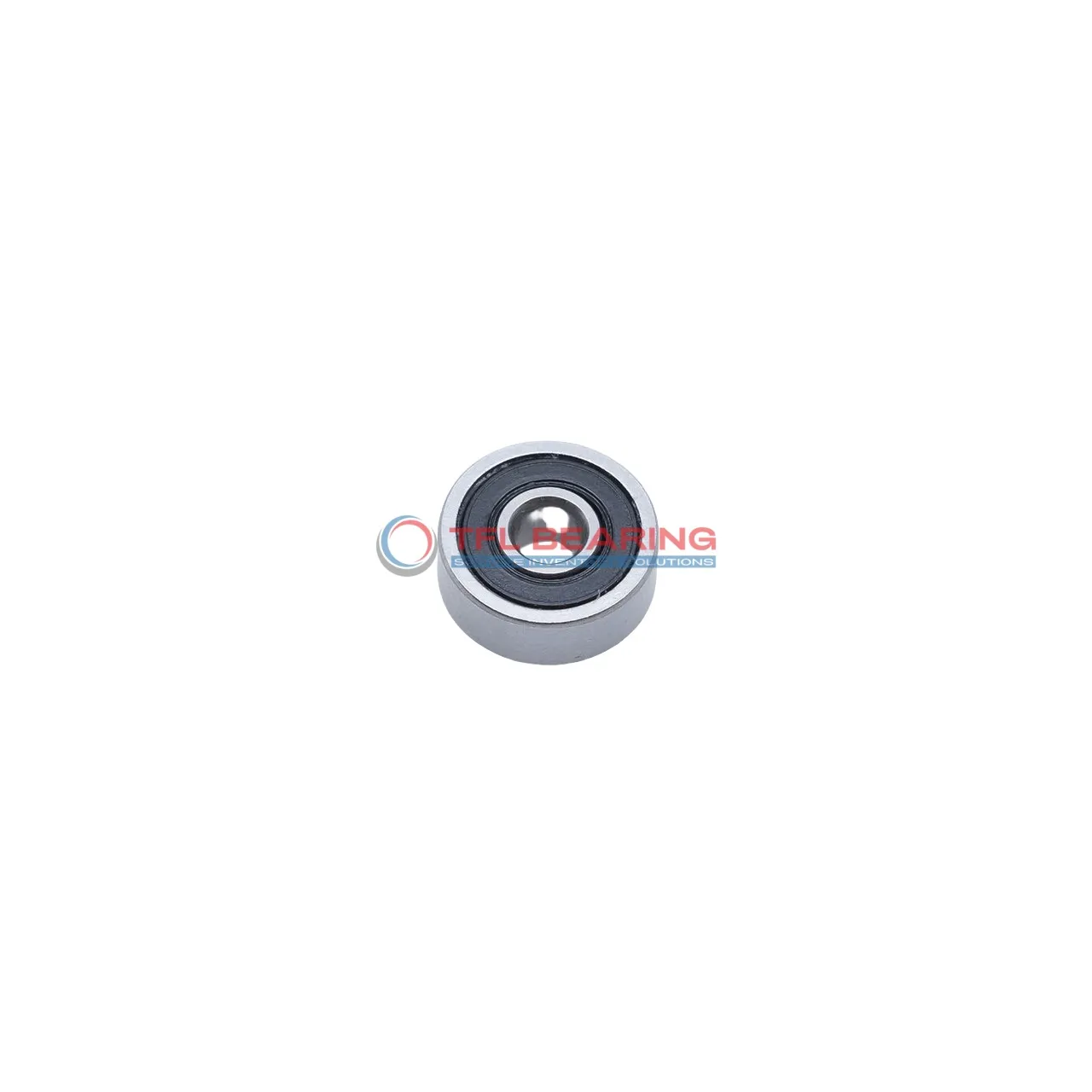

Metric Size Standard Miniature Ball Bearings SMR62 2rs

Metric Size Standard Miniature Ball Bearings SMR62 2rs

The SMR62 2rs is a small, sealed ball bearing measuring 2mm by 6mm by 2.5mm, made entirely from stainless steel for durability. It handles radial loads up to 57 lbf and spins at speeds up to 67,500 RPM, making it suitable for high-speed applications.

Its sealed design with nitrile rubber shields keeps dirt out and lubrication in, reducing maintenance needs. The bearing comes pre-lubricated and operates smoothly in temperatures from -30°C to 110°C.

With six stainless steel balls and a compact size, it’s ideal for small devices like miniature motors or precision instruments. The ABEC1 tolerance ensures reliable performance for everyday use.

Weighing just 0.28g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMR62 2rs
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Sealed
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material Nitrile Rubber
  • Dynamic Radial Load 57 lbf
  • Static Radial Load 16 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 67500 rpm
  • Weight 0.28 g
  • Price（$） 2.106
Metric Size Standard Miniature Ball Bearings SMR62 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose SMR62 2rs Bearing for Precision Tasks?

SMR62 2rs Bearing is crafted with stainless steel rings and balls, ensuring smooth radial load handling.
Its compact size of 2 mm×6 mm×2.5 mm makes it ideal for miniature applications requiring precision.

The sealed design with nitrile rubber shields protects against contaminants, enhancing durability.
With a maximum speed of 67,500 rpm, it delivers reliable performance in high-speed operations.

SMR62 2rs Bearing’s ABEC1 tolerance ensures consistent accuracy for delicate instruments.
Its stainless steel construction resists corrosion, making it suitable for various environments.

Application

Common Applications of SMR62 2rs Bearing
In small electric motors, SMR62 2rs Bearing is a reliable choice due to its compact size and sealed design, which keeps dust out. The stainless steel construction ensures it works well in humid environments.

Where Is SMR62 2rs Bearing Used?
You’ll often find SMR62 2rs Bearing in precision devices like dental tools or small cameras, where smooth rotation is key. Its low friction and quiet operation make it ideal for sensitive equipment.

Built for Heavy-Duty Use: SMR62 2rs Bearing
Despite its small size, SMR62 2rs Bearing handles radial loads well in applications like miniature gearboxes. The nitrile rubber seals add extra protection against contaminants.

Automotive vs Aerospace: Applications of SMR62 2rs Bearing
In automotive models, SMR62 2rs Bearing fits well in dashboard controls or sensors. For aerospace, its lightweight and durability suit small drone components.

Perfect Fit for Automation: SMR62 2rs Bearing
SMR62 2rs Bearing works smoothly in robotic arms and 3D printers, where precision matters. The ABEC1 tolerance ensures consistent performance in automated systems.
