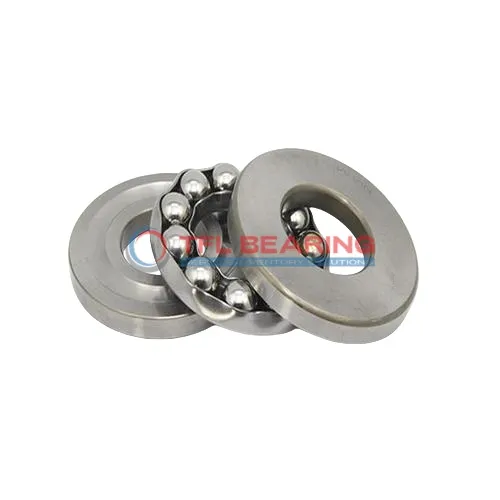

Metric Single Direction Thrust Ball Bearing 1007

Metric Single Direction Thrust Ball Bearing 1007

The 1007 is a single-direction thrust ball bearing with a 35mm bore and 55mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 1525 lbf and operates smoothly at speeds up to 5660 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like pumps or machinery where single-direction thrust loads are needed.

Weighing 0.15kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1007
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Inner Dia Housing Washer 35.2 mm
  • Chamfer Dimension 0.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 1525 lbf
  • Static Thrust Load 9707 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5660 rpm
  • Weight 0.15 kg
Metric Single Direction Thrust Ball Bearing 1007 dimension drawing
Download DWG Download PDF

Features

What Makes 1007 Bearing Suitable for High-Temperature Applications?

1007 Bearing is crafted from 52100 chrome steel, offering strong resistance to heat and wear.
Its temperature range of -30° to 110°C ensures stable performance in varied conditions.

The open seal design allows for easy lubrication, maintaining smooth operation under high thrust loads.
With a dynamic thrust load capacity of 1525 lbf, it handles demanding applications reliably.

1007 Bearing’s chrome steel cage ensures alignment, reducing friction and extending service life.
Its maximum speed of 5,660 rpm balances efficiency with durability.

Application

Common Applications of 1007 Bearing
1007 Bearing is widely used in industrial settings, especially in machinery like conveyor belts and hydraulic pumps where axial loads are common. Its open design simplifies lubrication, ensuring smooth operation over long periods.

In automotive applications, 1007 Bearing fits well in gearboxes and steering systems, handling thrust loads efficiently. The chrome steel construction offers durability, making it suitable for demanding driving conditions.

For automation equipment, 1007 Bearing provides reliable performance in robotic arms and assembly lines. Its precise tolerances help maintain accuracy in repetitive movements, reducing downtime.

Medical devices like diagnostic machines also benefit from 1007 Bearing’s consistent performance. The material choice ensures minimal wear, even in high-use environments.

Around the home, 1007 Bearing can be found in appliances like washing machines, where its load-handling capacity keeps things running smoothly. The metric sizing makes it easy to replace in various models.
