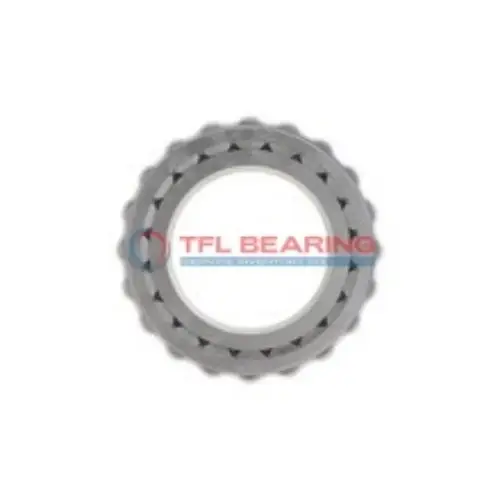

LM48548C Single Cones (Imperial)

LM48548C Single Cones (Imperial)

The LM48548C is a single-row tapered roller bearing cone with a 1.375-inch bore, made from sturdy chrome steel. It handles combined loads with a dynamic radial capacity of 14,500 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures durability. The cone width is 0.72 inches, making it compact yet robust for its size.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like heavy machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it meets industry safety requirements. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM48548C
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number LM48548C-LM48510 , LM48548C-LM48511 , LM48548C-LM48511A , LM48548C-LM48514 , LM48548C-LM48514XP
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series LM48500
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.72"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 1.57"
  • Cone Backface Backing Diameter 1.81"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.14"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14500 lbf
  • Static Radial Load 14200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3760 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 25300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2430 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 6550 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does LM48548C Bearing Handle Combined Loads?

LM48548C Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 14,500 lbf, ensuring dependable performance in varied applications.

The tapered roller design of LM48548C Bearing enhances load distribution, reducing wear over time.
With a temperature range of -30° to 110°C, it performs reliably in diverse operating conditions.

LM48548C Bearing’s steel cage maintains roller alignment, contributing to smooth operation.
Standard radial clearance options allow flexibility for different precision requirements.

Application

Industrial Uses of LM48548C Bearing
LM48548C Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The open seal allows for easy lubrication, extending service life in demanding conditions.

Where Is LM48548C Bearing Used?
You’ll find LM48548C Bearing in automotive axles and wheel hubs, where its chrome steel construction ensures durability. Its inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: LM48548C Bearing
LM48548C Bearing excels in industrial gearboxes, thanks to its high dynamic radial load capacity. The steel cage adds robustness, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of LM48548C Bearing
In automotive systems, LM48548C Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary gearboxes. Its temperature range suits both environments well.

Perfect Fit for Automation: LM48548C Bearing
LM48548C Bearing works well in conveyor systems and robotic arms, where precision and load handling are key. The standard radial clearance ensures smooth performance.
