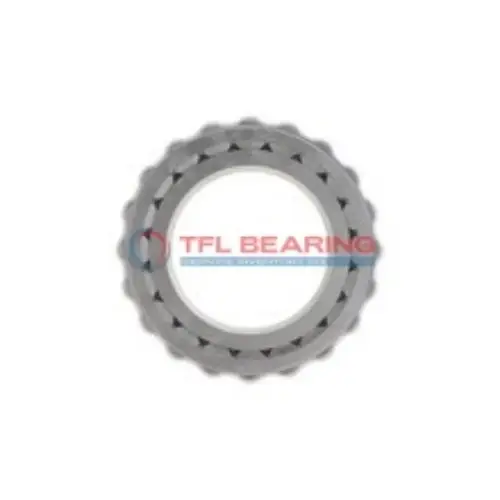

HM88649H Single Cones (Imperial)

HM88649H Single Cones (Imperial)

The HM88649H is a single-row tapered roller bearing cone with a 1.375″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 20500 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone width is 1″, with precise tolerances for a secure fit.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and longevity. The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM88649H
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM88649H-HM88610 , HM88649H-HM88610A , HM88649H-HM88610P , HM88649H-HM88611 , HM88649H-HM88611AS , HM88649H-HM88612 , HM88649H-HM88613
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.09"
  • Cone Frontface Backing Diameter 1.68"
  • Cone Backface Backing Diameter 1.91"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.18"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 20500 lbf
  • Static Radial Load 21200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5300 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 35600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4960 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 9240 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM88649H Bearing Engineered for Reliability?

HM88649H Bearing features chrome steel rings and a steel cage, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 20,500 lbf, ensuring reliable performance in demanding conditions.

The tapered roller design of HM88649H Bearing ensures smooth operation and reduced friction.
With a temperature range of -30° to 110°C, it performs well in various environments.

HM88649H Bearing’s standard radial clearance options allow for flexibility in different applications.
Its ABEC-1 rating ensures consistent precision and durability over time.

Application

Industrial Uses of HM88649H Bearing
HM88649H Bearing is commonly used in heavy machinery like construction equipment and agricultural vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is HM88649H Bearing Used?
You’ll find HM88649H Bearing in automotive applications such as wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: HM88649H Bearing
HM88649H Bearing excels in industrial gearboxes and conveyor systems, where its steel cage provides stability under high stress. The standard radial clearance options allow for flexibility in different operating conditions.

Automotive vs Industrial: Applications of HM88649H Bearing
In automotive settings, HM88649H Bearing supports wheel assemblies, while in industrial environments, it’s ideal for pumps and compressors. Its ABEC-1 rating ensures consistent performance across various applications.

Essential Roles of HM88649H Bearing
HM88649H Bearing is a go-to choice for mining equipment, where its dynamic load capacity handles extreme conditions. The open seal design simplifies maintenance, making it practical for long-term use.
