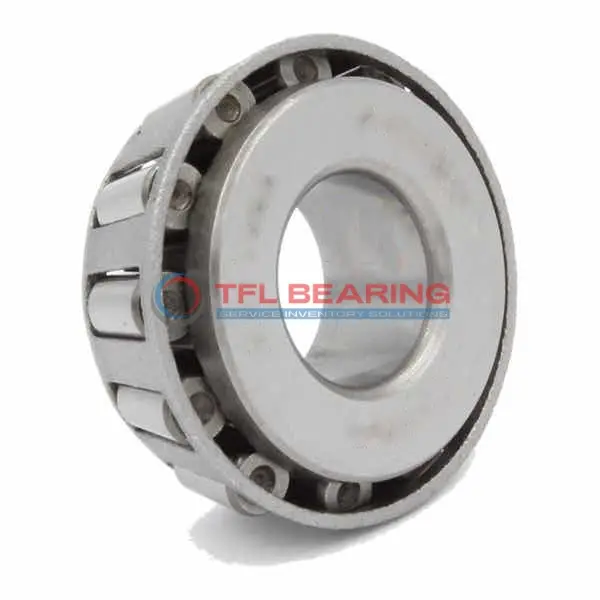

HH224334 Single Cones (Imperial)

HH224334 Single Cones (Imperial)

The HH224334 is a single-row tapered roller bearing cone with a 3.936″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 153,000 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone width of 2.625″ and precise tolerances make it a sturdy choice for heavy-duty applications.

This model is interchangeable with Timken bearings, offering flexibility for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it’s a dependable option for various engineering needs. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH224334
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HH224334-HH224310 , HH224334-HH224310V , HH224334-HH224314
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HH224300
  • Bore Dia 3.936"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 4.72"
  • Cone Backface Backing Diameter 4.88"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.74"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 153000 lbf
  • Static Radial Load 204000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 39600 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 266000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 22100 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 69000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does HH224334 Bearing Handle Combined Loads?

HH224334 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 153,000 lbf, ensuring reliable performance in demanding industrial applications.
The tapered roller design provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Why Choose HH224334 Bearing for Heavy-Duty Applications?

HH224334 Bearing features a single-row tapered roller design, ideal for handling combined loads with ease.
The chrome steel construction enhances durability, while the steel cage maintains roller alignment.
Its static radial load capacity of 204,000 lbf makes it suitable for heavy machinery.
The standard radial clearance ensures consistent performance across different operating conditions.

Performance Features of HH224334 Bearing

HH224334 Bearing’s effective center location of -0.74″ optimises load distribution for smoother operation.
The cone width tolerance of +0.003″ to -0.01″ ensures precise fitting in various applications.
Its dynamic thrust rating of 22,100 lbf (90 million revolutions) highlights its long-term reliability.
The ABEC-1 rating confirms its precision engineering for consistent performance.

Engineered for Durability: HH224334 Bearing

HH224334 Bearing’s chrome steel rings and tapered rollers resist wear, extending service life.
The steel cage design minimises friction, reducing maintenance needs over time.
With a dynamic radial rating of 266,000 lbf (two-row, 1 million revolutions), it excels in high-load scenarios.
Its compliance with RoHS and REACH standards ensures environmental safety.

Application

Industrial Uses of HH224334 Bearing
HH224334 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is HH224334 Bearing Used?
You’ll often find HH224334 Bearing in agricultural machinery, such as tractors and harvesters, thanks to its robust load capacity. Its inch sizing makes it a fit for North American industrial applications.

Built for Heavy-Duty Use: HH224334 Bearing
HH224334 Bearing excels in mining equipment, where its high dynamic radial load rating keeps operations running smoothly. The steel cage adds extra resilience in gritty conditions.

Automotive vs Aerospace: Applications of HH224334 Bearing
In automotive axles, HH224334 Bearing provides reliable performance under heavy loads, while its precision suits aerospace landing gear components. The temperature range ensures stability in varied climates.

Key Fields for HH224334 Bearing
Railway systems benefit from HH224334 Bearing’s ability to handle constant vibration and weight. Its standard radial clearance options make it versatile for different rail applications.
