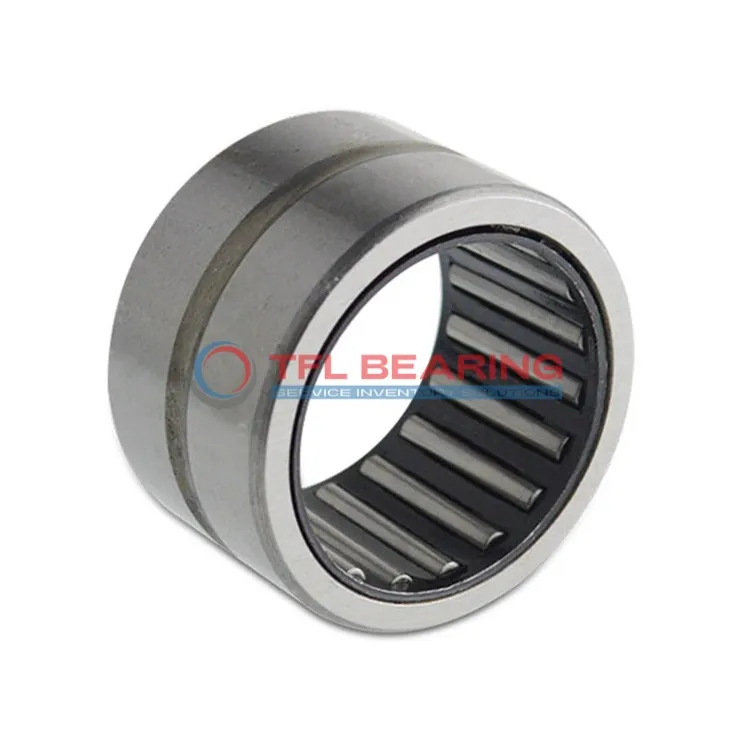

Heavy Duty Needle Roller Bearings (Machined) RNAO8X15X10-TV-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO8X15X10-TV-XL

The RNAO8X15X10-TV-XL is a heavy-duty needle roller bearing with an 8mm bore and 15mm outer diameter, crafted from sturdy steel. It supports radial loads up to 1001 lbf and reaches speeds of 32,500 RPM, making it suitable for high-performance applications.
Designed without an inner ring, it features a press-fit shaft mount for easy installation. The PA66 cage ensures smooth operation and durability, even in demanding conditions.
This bearing operates well in temperatures from -20°C to 110°C and requires regular lubrication for optimal performance. Its compact size (10mm width) and lightweight (8g) make it ideal for tight spaces.
Perfect for use in gearboxes, automotive components, or industrial machinery where high-speed radial load handling is needed. Compliant with RoHS standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO8X15X10-TV-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 8 mm
  • Bore Dia Tolerance 0.013mm to 0.022mm
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 1001 lbf
  • Static Radial Load 922 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 32500 rpm
  • Weight 8 g
Heavy Duty Needle Roller Bearings (Machined) RNAO8X15X10-TV-XL dimension drawing
Download DWG Download PDF

Features

How Does RNAO8X15X10-TV-XL Bearing Handle High-Speed Applications?
RNAO8X15X10-TV-XL Bearing is built with steel rollers and a PA66 cage, ensuring durability under high-speed conditions.
Its dynamic radial load capacity of 1001 lbf makes it suitable for demanding radial load applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 32,500 rpm, it delivers reliable performance in fast-moving machinery.

Application

Common Applications of RNAO8X15X10-TV-XL Bearing
RNAO8X15X10-TV-XL Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like gearboxes and pumps. Its open design and steel construction make it suitable for heavy-duty applications.
In automotive systems, RNAO8X15X10-TV-XL Bearing fits well in components such as transmissions and steering mechanisms, offering reliable performance under high speeds. The press-fit mounting ensures a secure installation.
For automation equipment, RNAO8X15X10-TV-XL Bearing works efficiently in robotic arms and conveyor systems, thanks to its lightweight and high-speed capabilities. The PA66 cage provides good wear resistance and reduces friction.
In household appliances like washing machines, RNAO8X15X10-TV-XL Bearing ensures smooth operation with its durable steel rollers. Its compact size makes it ideal for space-constrained designs.
