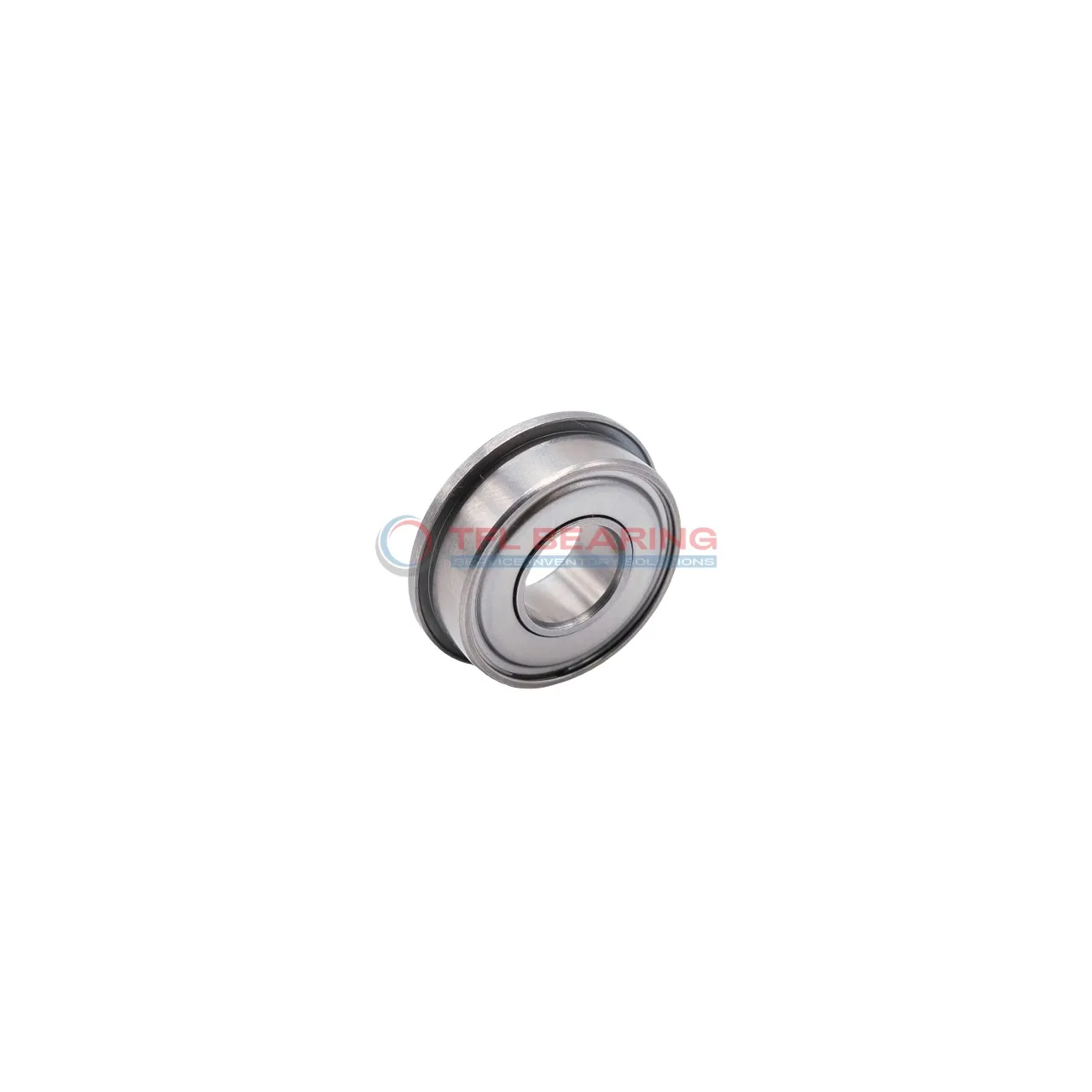

Flanged Deep Groove Ball Bearings D/W R6 R-2Z

Flanged Deep Groove Ball Bearings D/W R6 R-2Z

The D/W R6 R-2Z is a flanged deep groove ball bearing with a 0.375″ bore and 0.875″ outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 555 lbf and spins smoothly at speeds up to 36,000 RPM.

Its shielded design keeps grease in and contaminants out, while the stainless steel cage ensures reliable performance. The flange adds stability, making it easier to mount securely in tight spaces.

This bearing is ideal for small machinery or appliances where space is limited but performance is key. It works well in temperatures from -30°C to 120°C and is pre-lubricated with grease for hassle-free use.

Weighing just 0.012kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various applications. Interchangeable with SKF bearings, it’s a practical option for replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R6 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.375"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.875"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.28118"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.96902"
  • Flange Thickness 0.06201"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 555 lbf
  • Static Radial Load 252 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.012 kg
  • Price（$） 1.3
Flanged Deep Groove Ball Bearings D/W R6 R-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R6 R-2Z Bearing for Precision Tasks?

D/W R6 R-2Z Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its shielded design protects against contaminants, making it suitable for clean or dusty environments.

The flanged outer diameter provides secure mounting, reducing misalignment during operation.
With a dynamic radial load capacity of 555 lbf, it handles moderate loads efficiently.

D/W R6 R-2Z Bearing operates smoothly at speeds up to 36,000 rpm, ideal for high-speed applications.
Its compact size and lightweight design make it easy to integrate into various machinery.

Application

Common Applications of D/W R6 R-2Z Bearing
D/W R6 R-2Z Bearing is a go-to choice for small electric motors, thanks to its shielded design that keeps grease in and contaminants out. The stainless steel construction makes it resistant to corrosion, ideal for humid environments.

In conveyor systems, D/W R6 R-2Z Bearing’s flange ensures secure mounting, reducing misalignment issues during operation. Its compact inch size fits neatly into tight spaces without compromising performance.

For household appliances like washing machines, D/W R6 R-2Z Bearing offers quiet and smooth rotation. The grease lubrication ensures long service life, even with frequent use.

Automotive fans and blowers benefit from D/W R6 R-2Z Bearing’s high-speed capability, handling up to 36,000 rpm. The radial load capacity makes it reliable for continuous operation in demanding conditions.

In medical devices, D/W R6 R-2Z Bearing’s precision and cleanliness are key. The shielded design prevents contamination, crucial for sensitive equipment like lab instruments.
