Flanged Deep Groove Ball Bearings D/W R2-6 R

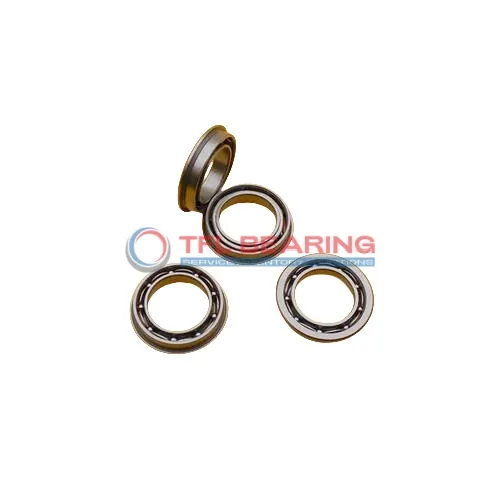

Flanged Deep Groove Ball Bearings D/W R2-6 R

The D/W R2-6 R is a compact flanged deep groove ball bearing with a 0.125″ bore and 0.375″ outer diameter, crafted entirely from stainless steel for corrosion resistance. It handles radial loads up to 82 lbf and spins smoothly at speeds up to 80,000 RPM.

The flange design provides secure mounting, while the open construction allows easy lubrication access. Its lightweight build (0.001kg) makes it ideal for space-sensitive applications.

With a temperature range of -30°C to 120°C, this bearing suits various environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Perfect for small machinery or instruments where precise radial load support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R2-6 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.10941"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.42201"
  • Flange Thickness 0.02299"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 82 lbf
  • Static Radial Load 26 lbf
  • Max Speed 80000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.001 kg
  • Price（$） 1.2
Flanged Deep Groove Ball Bearings D/W R2-6 R dimension drawing
Download DWG Download PDF

Features

How Is D/W R2-6 R Bearing Engineered for Reliability?

D/W R2-6 R Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its single-row design with open seal type allows for efficient radial load handling, up to 82 lbf.

The precision tolerances on bore and outer diameters ensure a snug fit, reducing vibration and noise.
With a maximum speed of 80,000 rpm, it delivers consistent performance in high-speed applications.

The flanged outer dia provides additional stability, making installation easier and more secure.
Its lightweight design at just 0.001 kg makes it suitable for compact and precision devices.

Application

Common Applications of D/W R2-6 R Bearing
D/W R2-6 R Bearing is commonly used in small electric motors, where its compact size and stainless steel construction ensure reliable performance. The flanged design helps with easy mounting and alignment in tight spaces.

In automation systems, D/W R2-6 R Bearing supports lightweight robotic arms and conveyor guides, thanks to its smooth radial load handling. Its open seal type allows for quick maintenance in high-speed applications.

For household appliances like fans or printers, D/W R2-6 R Bearing provides quiet operation and long-lasting durability. The inch sizing makes it a versatile choice for various consumer electronics.

Where Is D/W R2-6 R Bearing Used?
You’ll often find D/W R2-6 R Bearing in precision instruments, where its stainless steel components resist corrosion. Its low weight and high-speed capability make it ideal for delicate mechanisms.

In industrial settings, D/W R2-6 R Bearing works well in light-duty machinery requiring consistent radial load support. The flange adds stability, preventing misalignment during operation.

Built for Versatility: D/W R2-6 R Bearing
D/W R2-6 R Bearing fits perfectly in medical devices like small pumps or lab equipment, where hygiene and reliability matter. The stainless steel material meets strict cleanliness standards.

Its high-speed tolerance also makes D/W R2-6 R Bearing suitable for dental tools or handheld devices. The open design simplifies lubrication and upkeep in busy environments.

Light-Duty vs Heavy-Duty: Best Uses for D/W R2-6 R Bearing
For light-duty tasks, D/W R2-6 R Bearing excels in office machinery or small gadgets, offering smooth motion with minimal noise. The inch measurements ensure compatibility with various designs.

In more demanding scenarios, D/W R2-6 R Bearing handles radial loads in packaging equipment or light conveyor systems. Its flange provides extra security against shifting during operation.
