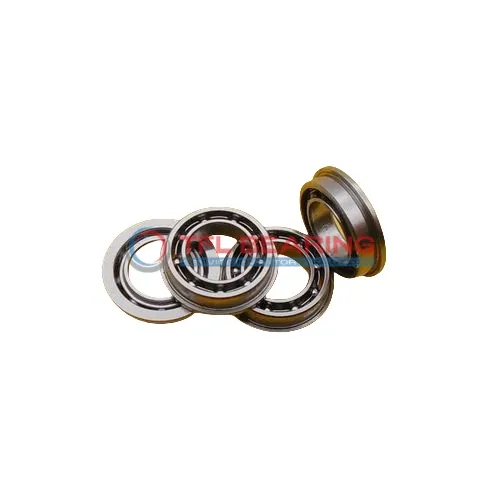

Flanged Deep Groove Ball Bearings D/W R1810 R

Flanged Deep Groove Ball Bearings D/W R1810 R

The D/W R1810 R is a compact flanged deep groove ball bearing, measuring 0.31252″ in bore and 0.5″ in outer diameter, with a stainless steel construction for durability. It handles radial loads up to 70 lbf and spins smoothly at speeds up to 63,000 RPM.

Its single-row design and open seal make it easy to maintain, while the flange provides secure mounting in tight spaces. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for small machinery or instruments where space is limited and radial loads are common.

Weighing just 0.0015kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R1810 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.31252"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.5"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.15618"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.54701"
  • Flange Thickness 0.03098"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 70 lbf
  • Static Radial Load 32 lbf
  • Max Speed 63000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0015 kg
  • Price（$） 1.3
Flanged Deep Groove Ball Bearings D/W R1810 R dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R1810 R Bearing for Precision Tasks?

D/W R1810 R Bearing is crafted with stainless steel rings and balls, ensuring corrosion resistance and durability.
Its precision design allows for smooth radial load handling, with a dynamic radial load capacity of 70 lbf.

The single-row construction and open seal type make D/W R1810 R Bearing suitable for high-speed applications.
With a maximum speed of 63,000 rpm, it delivers reliable performance in various conditions.

D/W R1810 R Bearing’s flanged design provides secure mounting, reducing misalignment risks.
Its compact size and lightweight construction make it ideal for space-constrained applications.

Application

Industrial Uses of D/W R1810 R Bearing
D/W R1810 R Bearing is commonly used in small industrial machinery, especially where space is limited. Its stainless steel construction offers good corrosion resistance, making it suitable for humid or washdown environments.

In automotive applications, D/W R1810 R Bearing fits well in compact components like electric window mechanisms. The inch sizing ensures compatibility with many North American vehicle designs.

For consumer electronics, D/W R1810 R Bearing works smoothly in devices like small fans or printer rollers. The open design allows for easy lubrication if needed, extending service life in continuous-use scenarios.

Medical device manufacturers often choose D/W R1810 R Bearing for portable equipment due to its lightweight design. The stainless steel materials meet hygiene requirements while providing reliable performance.

Automation systems benefit from D/W R1810 R Bearing’s precise dimensions in robotic joint applications. The flange design helps with secure mounting in tight spaces common in automated assemblies.
