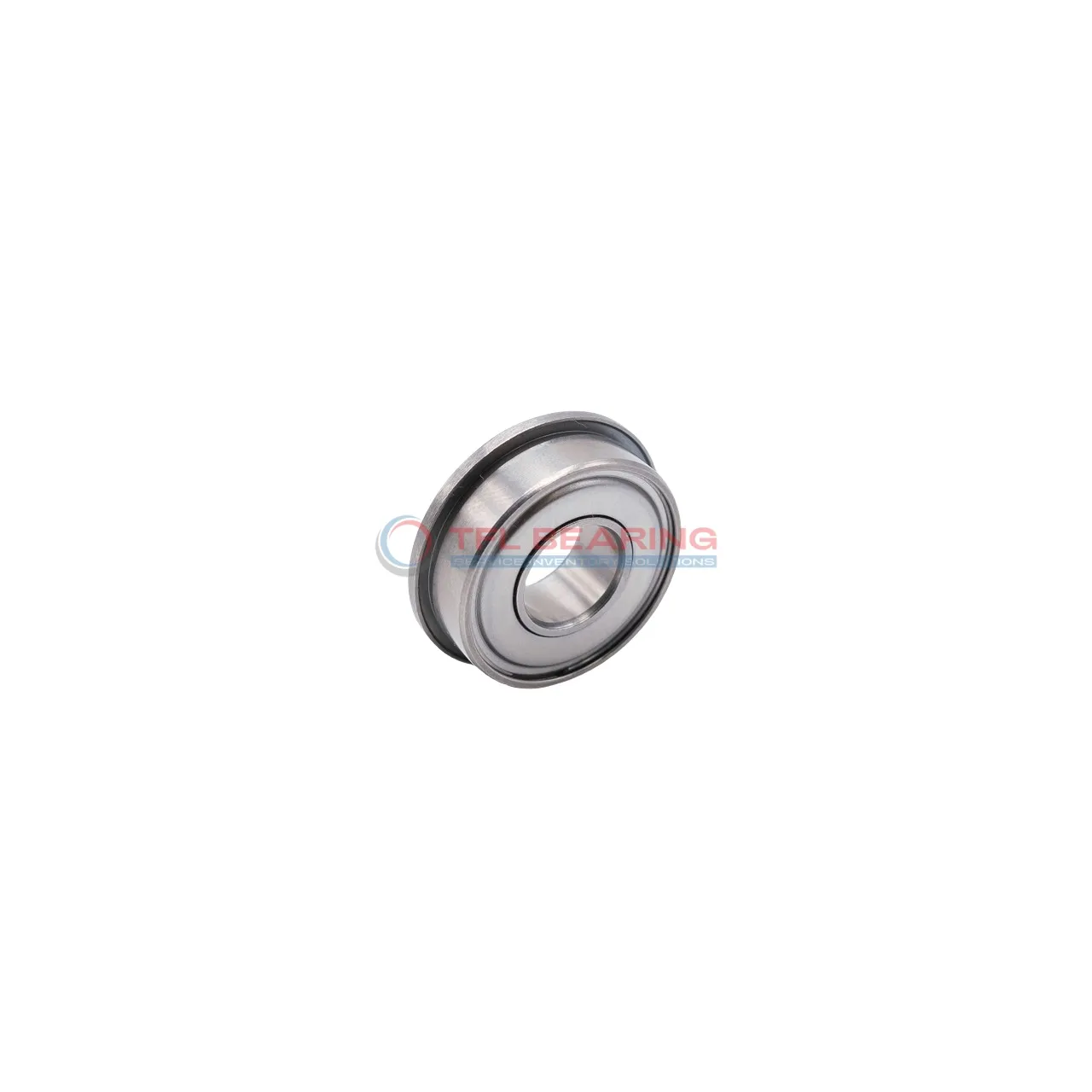

Flanged Deep Groove Ball Bearings D/W R1810 R-2ZS

Flanged Deep Groove Ball Bearings D/W R1810 R-2ZS

The D/W R1810 R-2ZS is a compact flanged deep groove ball bearing, measuring 0.31252″ in bore and 0.5″ in outer diameter, with a width of 0.15618″. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This bearing handles radial loads up to 70 lbf and can spin at speeds up to 50,000 RPM, making it suitable for high-speed applications. Its shielded design helps keep grease in and contaminants out, reducing maintenance needs.

The flange adds stability, making it easier to mount in tight spaces. It works well in temperatures from -30°C to 120°C, ideal for environments with moderate temperature changes.

Weighing just 0.0016kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a reliable choice for small machinery or precision instruments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R1810 R-2ZS
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.31252"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.5"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.15618"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.54701"
  • Flange Thickness 0.03098"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 70 lbf
  • Static Radial Load 32 lbf
  • Max Speed 50000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0016 kg
  • Price（$） 1.3
Flanged Deep Groove Ball Bearings D/W R1810 R-2ZS dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R1810 R-2ZS Bearing for Precision Tasks?

D/W R1810 R-2ZS Bearing features stainless steel construction, ensuring resistance to corrosion and wear.

Its shielded design protects against contaminants, making it suitable for clean or dusty environments.

With a dynamic radial load capacity of 70 lbf, it handles moderate loads efficiently.

The bearing operates smoothly at speeds up to 50,000 rpm, ideal for high-speed applications.

Application

Common Applications of D/W R1810 R-2ZS Bearing
D/W R1810 R-2ZS Bearing is widely used in small electric motors, where its shielded design keeps contaminants out while maintaining smooth rotation. The stainless steel construction makes it suitable for environments where corrosion resistance is important.

In automation systems, D/W R1810 R-2ZS Bearing fits neatly into compact spaces, such as robotic arms or conveyor guides. Its inch sizing ensures compatibility with many North American machinery standards.

For household appliances like fans or printers, D/W R1810 R-2ZS Bearing offers quiet operation and long service life. The flange provides extra stability, preventing misalignment during high-speed use.

Medical devices benefit from D/W R1810 R-2ZS Bearing’s precision and low friction, ideal for delicate instruments. The grease lubrication ensures consistent performance without frequent maintenance.
